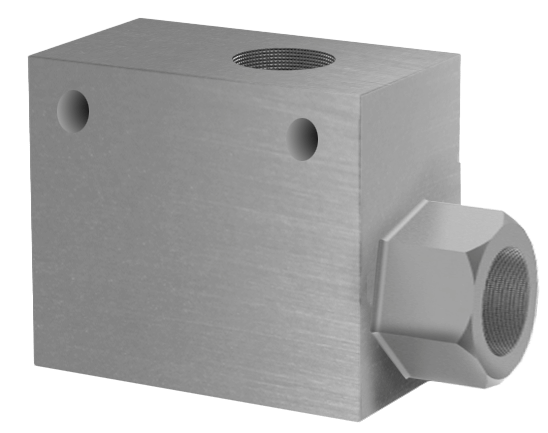

FP50/SV & FPS50/SV Hydraulic Shuttle Valve

Brand: Bifold Group
Features:
  • 316L stainless steel
  • Arctic service options to -50° C (-58° F)
  • Subsea availability
show more
Features:
  • 316L stainless steel
  • Arctic service options to -50° C (-58° F)
  • Subsea availability

Specifications

Brand

Enclosure, Body Material

  • 316L Stainless Steel

Flow Rate

  • 1.8 scfm (50 LPM) at psi: 145 (kPa: 1,000, bar: 10) Differential Pressure

Media

  • Mineral Oil
  • Sea Water (Filtered)
  • Some Chemicals
  • Water Glycol Mixtures

NACE & NIST

  • NACE MR-01-75

NPT Connection

  • 1/4" NPT Female

O-Ring Material

  • Nitrile
  • Viton

Pressure Range

  • psi: 0 to 10,000 (kPa: 0 to 69,000, bar: 0 to 690)

Seat / Seal Material

  • Alternative Elastomer for Extreme Conditions
  • Seal: Nitrile (Standard)
  • Seal: PTFE
  • Seat: 316L Stainless Steel
  • Seat: PEEK

Supply Pressure - Maximum

  • psi: 5,000 (kPa: 34,500, bar: 345) - Maximum

Temperature Range

  • -20° to 180° C (-4° to 356° F) - Viton
  • -30° to 130° C (-22° to 266° F) - Nitrile
  • -46° to 130° C (-50.8° to 266° F) - Low Temperature Nitrile
