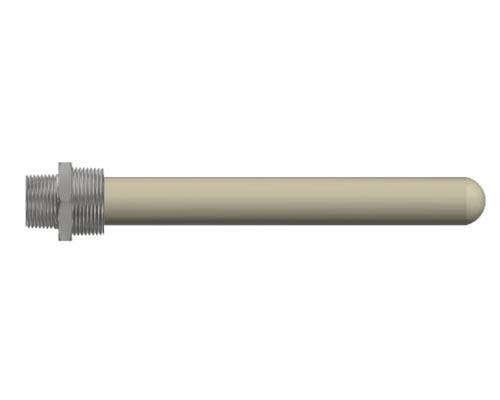

PT2 Protection Tube

Brand: Aircom Instrumentation Ltd
Connection Head: general-purpose connection for non-hazardous locations

Element: ANSI calibration type R, S for service to 1,482° C. ANSI calibration type B (non ANSI WR, W3, W5) for service to 1,650° C

Protection Tube:
  • 1/4” I.D. x 3/8” O.D.
  • 7/16” I.D. x 11/16” O.D.
  • 9/16” I.D. x 3/4” O.D.
  • 5/8” I.D. x 7/8” O.D.
show more
Connection Head: general-purpose connection for non-hazardous locations

Element: ANSI calibration type R, S for service to 1,482° C. ANSI calibration type B (non ANSI WR, W3, W5) for service to 1,650° C

Protection Tube:
  • 1/4” I.D. x 3/8” O.D.
  • 7/16” I.D. x 11/16” O.D.
  • 9/16” I.D. x 3/4” O.D.
  • 5/8” I.D. x 7/8” O.D.

Specifications

Materials of Construction

  • Aluminum - Tube Material
  • Metal Ceramic - Tube Material
  • Mullite - Tube Material
  • Zirconia - Tube Material

NPT Connection

  • 1” NPT Male
  • 1/2” NPT Male
  • 3/4” NPT Male

Tube Connection

  • 1/4” I.D. x 3/8” O.D. Tube
  • 5/8” I.D. x 7/8” O.D. Tube
  • 7/16” I.D. x 11/16” O.D. Tube
  • 9/16” I.D. x 3/4” O.D. Tube
