Description

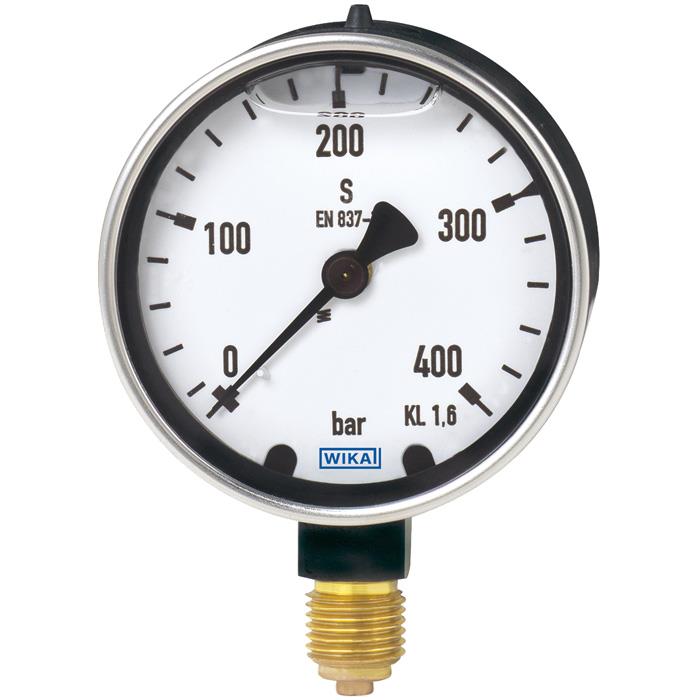

Heavy-duty version, liquid filling, NS 63, 80 and 100.
Features- Vibration and shock resistant.
- Especially robust design.
- NS 63 and 100 with Germanischer Lloyd and Gosstandart approval.
- Scale range up to 0 ... 1,000 bar.
Inventory
Displaying price & availability for Massachusetts, United States in USD Change Location or currency.
2 models matching criteria
TELEMATIC Gage, 2.5-inch Dial, 1/4-inch NPT CBM, Copper, 0-160 psi, Liquid Filled
show more
- Process Connection: 1/4" Male Center Back Mount
- Gauge Size: 2-1/2"
- Accuracy: ±2.5% of Span
- Pressure Ranges: 0 to 160 psi
- Temperature Range: -20°C to +60°C (-4°F to +140°F)
- Materials of Construction:
- Pressure Connection: Copper Alloy
- Bourdon Tube: Copper Alloy
- Movement: Copper Alloy
- Dial: White ABS Polymer
- Pointer: Black Aluminum
- Case: 304 Stainless Steel with Vent Plug and Crimp Ring
- O-Ring: EPDM (Ethylene Propylene)
- Window: Polycarbonate with Buna-N Gasket
- Liquid Fill: Glycerine 99.7%
- Environmental Protection: NEMA 4X, IP65
12 In Stock
Non-Cancellable / Non-Refundable
$10.92USD
TELEMATIC Gage, 2.5-inch Dial, 1/4-inch NPT CBM, Copper, 0-60 psi, Liquid Filled
show more
- Process Connection: 1/4" Male Center Back Mount
- Gauge Size: 2-1/2"
- Accuracy: ±2.5% of Span
- Pressure Ranges: 0 to 60 psi
- Temperature Range: -20°C to +60°C (-4°F to +140°F)
- Materials of Construction:
- Pressure Connection: Copper Alloy
- Bourdon Tube: Copper Alloy
- Movement: Copper Alloy
- Dial: White ABS Polymer
- Pointer: Black Aluminum
- Case: 304 Stainless Steel with Vent Plug and Crimp Ring
- O-Ring: EPDM (Ethylene Propylene)
- Window: Polycarbonate with Buna-N Gasket
- Liquid Fill: Glycerine 99.7%
- Environmental Protection: NEMA 4X, IP65
8 In Stock
Non-Cancellable / Non-Refundable
$10.92USD
Specifications
Specifications
Nominal Size
- 63, 100 mm (2-1/2”, 4”)
Range
- Vacuum / Compound to 200 psi
- 15 to 15,000 psi
Environmental Protection
- IP66 / NEMA 4X
Process Connection
- 1/4” NPT
- 1/2” NPT
Process Connection Material
- Copper Alloy
Connection Location
- Lower Mount or Center Back Mount
Dial Material
- White Aluminum with Black Lettering, 2-1/2” with Stop Pin
Case Material
- Gold-painted Forged Brass
Window Material
- Acrylic with Buna-N Gasket
Filling
- Glycerine 99.7 %
Applications
Typical Applications
- Intended for adverse service conditions where pulsation or vibration exists
- Suitable for gaseous or liquid media that will not obstruct the pressure system
- Hydraulics & compressors
