Description

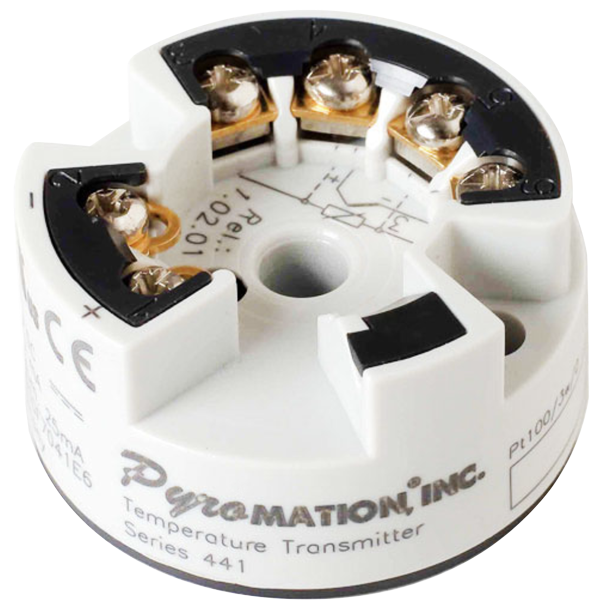

The Series 441 programmable temperature transmitter is a 2-wire transmitter with an analog output. It has measurement input for resistance thermometers (RTD) in 2-, 3- or 4-wire connections, thermocouples, resistance and voltage inputs.
Setting up of the transmitter is done using the communication cable. These small units can be mounted in Pyromation DIN (Form B) connection heads or they can be used for surface mounting by using a 35 mm DIN-rail mounting clip.
Features
- Universally PC programmable for various signals
- Galvanic isolation
- 2-wire technology, (4 to 20) mA analog output
- High accuracy in total ambient temperature range
- Fault signal on sensor break or short circuit
- RFI/EMI Protected, marked
- UL Recognized Component
- Intrinsically safe and non-incendive for hazardous locations
- Online configuration during measurement using SETUP connector
- Output simulation
Configure
Series 441 Temperature Transmitter
Wire Configuration
Sensor Type
Sensor Type
Burnout
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Temperature Range Lower
Temperature Range Higher
Ω Measurement Range Lower
Ω Measurement Range Higher
mV Measurement Range Lower
mV Measurement Range Higher
Specifications
Specifications
Brand
Connection Type
- 2 Wire
- 3 Wire
- 4 wire
- Thermocouple
Current Limit
- ≤ 25 mA
Output Signal
- (4 to 20) mA Or (20 to 4) mA
Transmission As
- Temperature Linear
- Resistance Linear
- Voltage Linear
Switch On Delay
- 4 s
