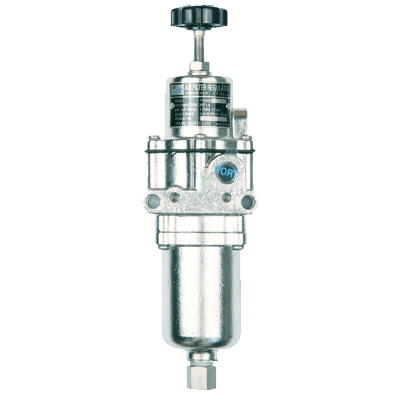

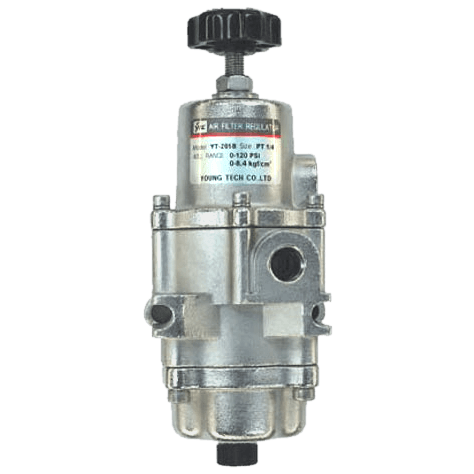

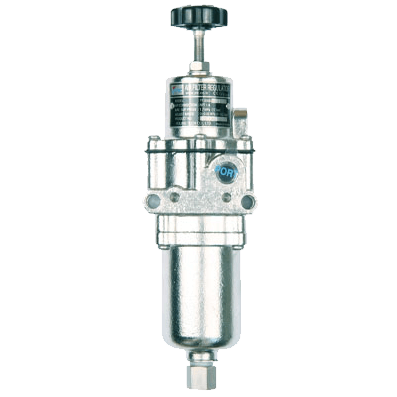

YT-205-1/4" Air Filter Regulator

Brand: Young Tech Co., Ltd
YT-205 Air filter regulator suitably reduce plant’s main air supply pressure and supplies to valve positioner(s) or control device(s).
Features
  • Maintain stable outlet pressure
  • Light weight and compact size
  • 5 micron filter Relief function – discharge pressure if outer pressure is higher than set pressure
show more
Images are representations only.
YT-205 Air filter regulator suitably reduce plant’s main air supply pressure and supplies to valve positioner(s) or control device(s).
Features
  • Maintain stable outlet pressure
  • Light weight and compact size
  • 5 micron filter Relief function – discharge pressure if outer pressure is higher than set pressure

YT-205

Pressure Range

Gauge

Temperature Range

Drain

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Approvals & Certifications

  • CE

Enclosure, Body Material

  • 316 Stainless Steel

Filter

  • 5 microns

Gauge Connection

  • 1/4" NPT

Media

  • Air

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 0 to 8.4
  • kPa: 0 to 840
  • MPa: 0 to 0.84
  • psig: 0 to 121

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • MPa: 1.7
  • psi: 246
