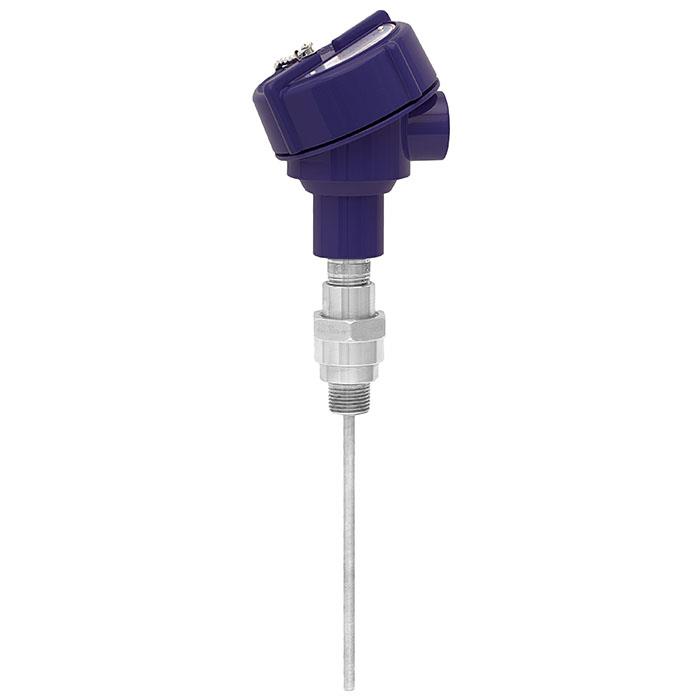

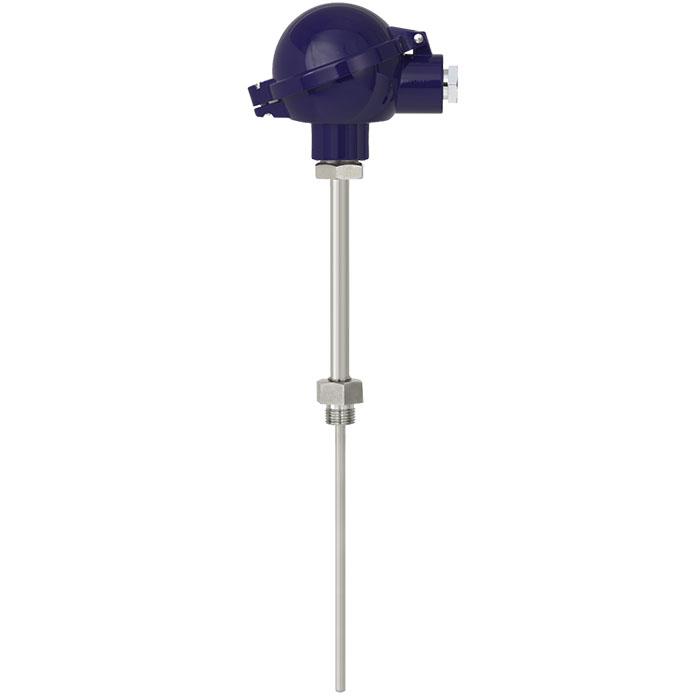

Thermocouple - TC10-B

Brand: WIKA Instruments Ltd.
Thermocouples in this series can be combined with a large number of thermowell designs. Operation without thermowell is only recommended in certain applications.

A wide variety of possible combinations of sensor, connection head, insertion length, neck length, connection to thermowell etc. are available for the thermometers; suitable for any thermowell dimension and any application.

A large number of different explosion protection approvals are availabe for the TC10-B. Optionally we can fit transmitters from the WIKA range into the connection head of the TC10-B.
Features
  • Application ranges from 0 ... 1,200 °C (32 ... 2,192 °F).
  • For mounting in all standard thermowell design.
  • Spring-loaded measuring insert (replaceable).
  • Explosion-protected versions.
show more
Thermocouples in this series can be combined with a large number of thermowell designs. Operation without thermowell is only recommended in certain applications.

A wide variety of possible combinations of sensor, connection head, insertion length, neck length, connection to thermowell etc. are available for the thermometers; suitable for any thermowell dimension and any application.

A large number of different explosion protection approvals are availabe for the TC10-B. Optionally we can fit transmitters from the WIKA range into the connection head of the TC10-B.
Features
  • Application ranges from 0 ... 1,200 °C (32 ... 2,192 °F).
  • For mounting in all standard thermowell design.
  • Spring-loaded measuring insert (replaceable).
  • Explosion-protected versions.

Specifications

Certifications & Approvals

  • CE
  • NAMUR NE24
  • SIL 2
  • Uzstandard
  • UkrSEPRO
  • BelGIM
  • MTSCHS
  • KazInMetr
  • PESO
  • KOSHA
  • NEPSI
  • INMETRO
  • EAC
  • IECEx
  • DNV GL

Sensor Range

  • -40 to 1,200 °C (-40 to 2,192 °F)

Sensor Type

  • Thermocouple type K, J, E, N, T (single or dual thermocouple)

Connection Head Material

  • Polypropylene
  • Stainless steel
  • Plastic
  • Aluminum

Environmental Protection

  • IP66
  • IP65

Output

  • HART® protocol
  • 4-20 mA
  • FOUNDATION™ Fieldbus and PROFIBUS® PA

Ambient Temperature

  • -60° to 80° C

Typical Applications

  • Machine building, plant and vessel construction
  • Energy and power plant technology
  • Chemical industry
  • Food and beverage industry
  • Sanitary, heating and air-conditioning technology
