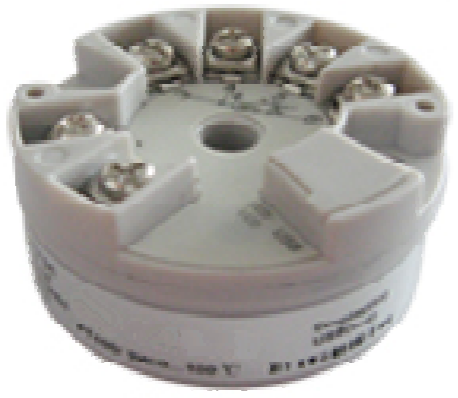

Images are representations only.
Description
Features:
- 2-wire, 4-20 mA Analog output
- High accuracy in total ambient temperature range
- An internal temperature sensor for active temperature compensation
Specifications
Specifications
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Input
- Voltage Transmitters: -10 to 75 mV
Operating Temperature
- Calibration Temperature: 23° C (75° F)
Output
- 4-20 mA, 2-Wire
- Sensor Breakage: < 3.8 mA
Resistance
- 0 to 400 ohms
Response Time
- 1 second
Sensor, Probe Type
- B Thermocouple
- E Thermocouple
- J Thermocouple
- K Thermocouple
- N Thermocouple
- Platinum Resistance Sensor: Cu100
- Platinum Resistance Sensor: Cu50
- Platinum Resistance Sensor: Pt100
- R Thermocouple
- S Thermocouple
- T Thermocouple
Stability
- Long Term: ≤ 0.05%/Year
Supply Voltage
- 7.5-45 Vdc, Polarity Protected
