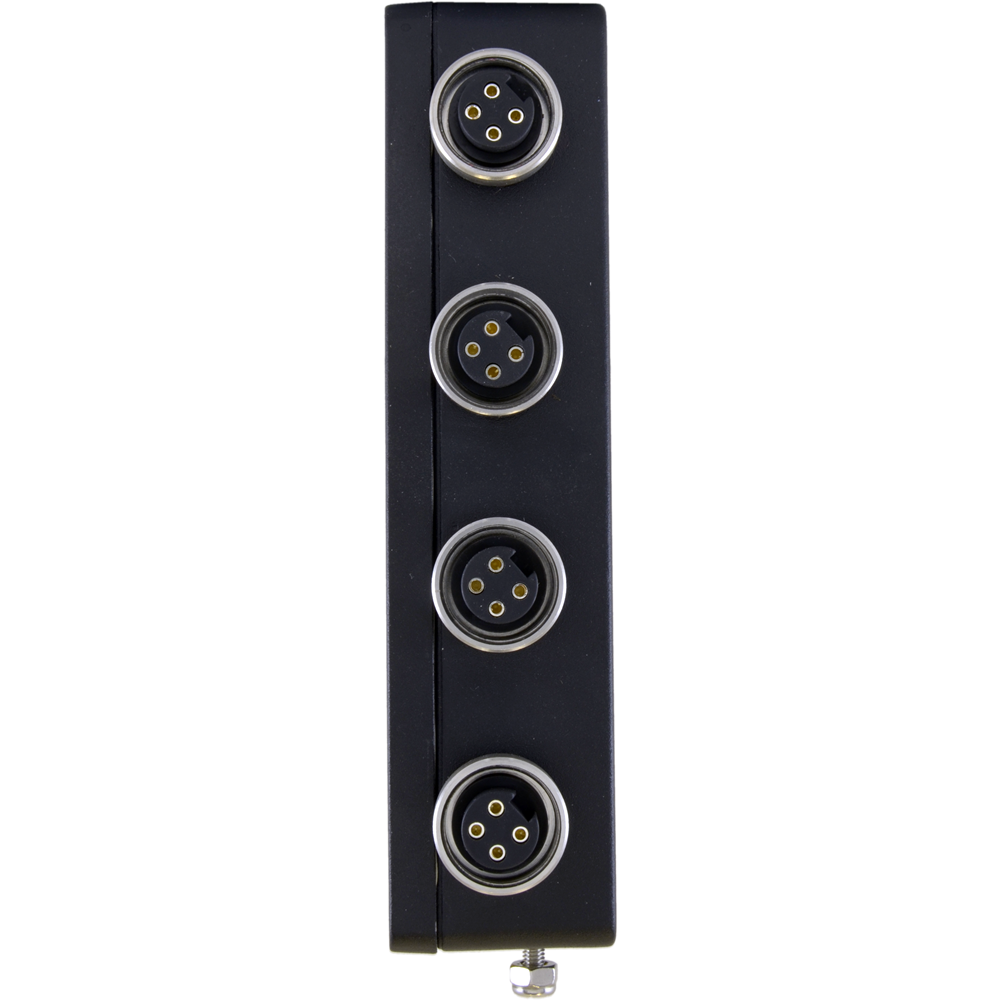

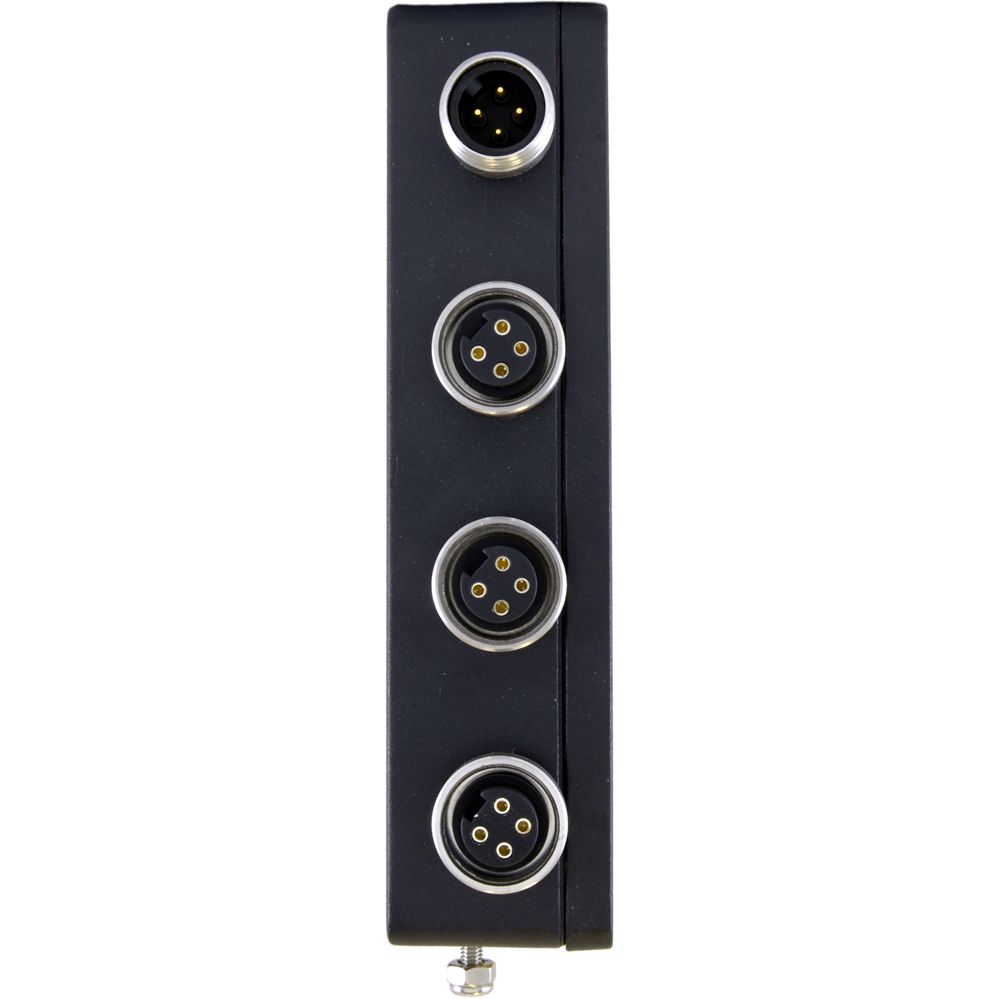

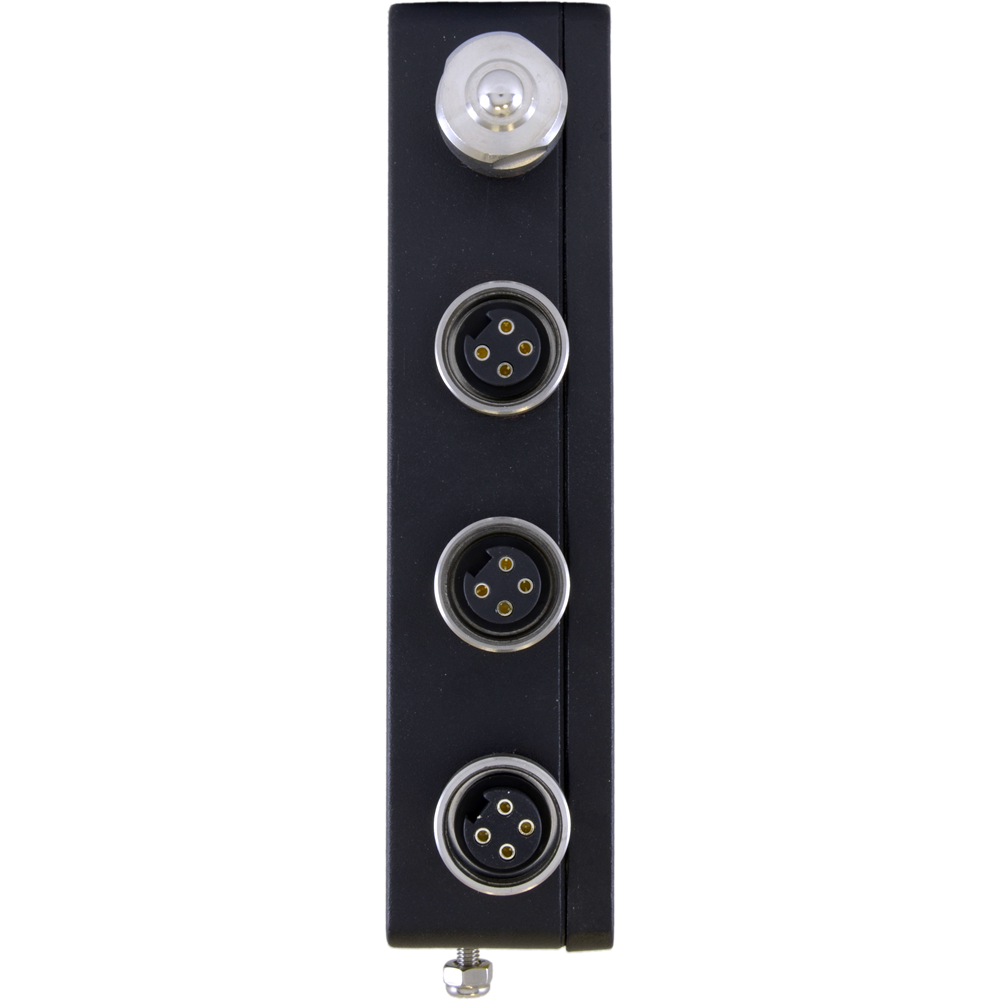

Junction Box

Brand: Turck
Features
  • DIN Rail Mounting or Passive Multiport Box
  • Ports:
    • 4 Ports
    • 6 Ports
    • 8 Ports
    • 12 Ports
  • Short Circuit Protection
  • Housing Materials:
    • Anodized Aluminum
    • Fiberglass
  • FISCO/ENTITY Field Device Available
  • Connections:
    • Clamp Device Ports
    • minifast Ports
    • eurofast Ports
show more
Features
  • DIN Rail Mounting or Passive Multiport Box
  • Ports:
    • 4 Ports
    • 6 Ports
    • 8 Ports
    • 12 Ports
  • Short Circuit Protection
  • Housing Materials:
    • Anodized Aluminum
    • Fiberglass
  • FISCO/ENTITY Field Device Available
  • Connections:
    • Clamp Device Ports
    • minifast Ports
    • eurofast Ports
49 models matching criteria
P-VBMV 40-978-0.8-CSSMV 12
TURCK multiBox eurofast Metal Junction Box with Integ. HR Cable, 0.8m, 4-Port, SST, NCNR
16 In Stock
$340.59 USD $180.61 USD
$15.56 Shipping
JBBS-48SC-M813
TURCK Profibus-PA Multiport Junction Block (Brick), Passive, 8-Port, Short Circuit Protection, NCNR
1 In Stock
$665.60 USD
$15.56 Shipping
P-4MB12-4-CS12
TURCK multiBox eurofast Nylon Junb Box, Ni Pltd., 4-Port, 12-Pin multifast, Common Grd/Shield, NCNR
2 - 8 weeks
$156.48 USD
$15.56 Shipping
P-4 RKF 40-CS12/C
TURCK multiBox minifast Metal Junc Box, 4-Port, 12-Pin, Common Ground/Shield, Ni-Plated, NCNR View More
  • Application: Hazardous location
  • Actuator/Sensor box: 4
  • Signals Per Port: 1
  • Homerun Type: M23
  • Homerun Exit Location: Side
  • Rated Voltage: 300V
  • Current Per Port: 4 A
  • Approvals: CSA PA
2 - 8 weeks
$256.12 USD
$15.56 Shipping
VB 40.5-CS19
TURCK multiBox eurofast Junction Box, 19-Pin, 4-Port, 2-Signals/Port, NCNR
2 - 8 weeks
Non-Cancellable / Non-Refundable
$256.90 USD
$15.56 Shipping
P-8MB12-4-CS19
TURCK multiBox eurofast Nylon Junction Box, 8-Port, 19-Pin minifast, Cmn Grd/Shield, NCNR
2 - 8 weeks
$260.79 USD
$15.56 Shipping
JBBS-57-E401
TURCK DeviceNet mini/eurofast Junction Block, 6-Port, NCNR View More
  • DeviceNet On-Machine Passive Junction Box
  • Bus In/Out Connectors 5-Pin minifast
  • J1-4 Connectors 5-Pin eurofast
  • Operating 300V and 4.0A per Conductor
  • Temperature Range -40°C to +70°C (-40°F to +158°F)
2 - 8 weeks
Non-Cancellable / Non-Refundable
$264.68 USD
$15.56 Shipping
P-VBMV 40-CSV12
TURCK 4-port Junction Box with M23 Multifast Home Run View More
  • M12 eurofast I/O Ports
  • Side Exit Home Run
  • Aluminum Housing
3 - 5 weeks
$300.49 USD
$15.56 Shipping
8MB12Z-5-0.3-RSM 190
TURCK multiBox eurofast Nylon Junc Box, HR Cable, 8-Port, Ni-Plated, 0.3m, IP67, NCNR View More
  • Number of Conductors: 3x18 AWG, 16x22 AWG
  • Drain/Shield: 20 AWG Drain/Polyester Foil Shield
  • Receptacle Material/Plating: Brass/Nickel
  • Operating Voltage: 60 VDC
  • Operating Current: 2.0 Amps/Signal, 4.0 Amps Total
  • Protection Class: IP67, only when all receptacles are covered with plugs or connected
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)
6 - 8 weeks
$305.17 USD
$15.56 Shipping
P-4 RKFV 40-CSV12/C
TURCK multiBox minifast Metal Junc Box, 4-Port, 12-Pin, Common Ground/Shield, SST, NCNR
2 - 8 weeks
$316.06 USD
$15.56 Shipping

Specifications

Brand

Approvals & Certifications

  • FISCO/ENTITY

Circuit Protection

  • None
  • Short Circuit Protection - 30, 35, 45, or 60 mA
  • Short Circuit Protection - 55 mA

Communication

  • FOUNDATION Fieldbus
  • PROFIBUS PA

Connection Material

  • Nickel-Plated Brass Coupling Nut
  • Stainless Steel Coupling Nut
  • TPU (Polyurethane) Contact Carrier

Connection Style

  • Clamp Device
  • eurofast
  • minifast

Diagnostics

  • LED: Green = Power On, Red = Shorted

Electrical Contacts

  • Gold-Plated Brass

Enclosure, Body Material

  • Aluminum, Anodized
  • Fiberglass

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Mounting

  • DIN Rail Mounting
  • None

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 250 Vac or Vdc
  • 300 V
  • 9-32 Vdc

Port

  • 4-Ports
  • 6-Port
  • 8-Ports
