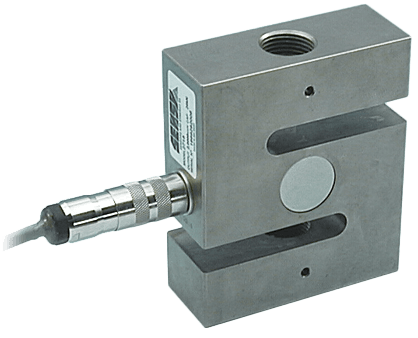

2715-ISO Standard Reference Force Transducer

Brand: Sensy - Sensors & Synergy S.A.
Request Information
Standard reference force transducer specially designed according to the norm ISO 376 (1) (Class "1", "05" and "00").
Features
  • Broad range of capacities
  • Tension and compression
  • Compact design
  • Complete range of load accessories
  • Protection: IP 65
  • Material: nickel plated alloy steel
  • Options:
    • Digital output signal (RS-232C, RS-485, USB)
    • ASTM E74 compliant
show more
Standard reference force transducer specially designed according to the norm ISO 376 (1) (Class "1", "05" and "00").
Features
  • Broad range of capacities
  • Tension and compression
  • Compact design
  • Complete range of load accessories
  • Protection: IP 65
  • Material: nickel plated alloy steel
  • Options:
    • Digital output signal (RS-232C, RS-485, USB)
    • ASTM E74 compliant
Close

Specifications

Brand

Accuracy

  • Class 00
  • Class 05
  • Class 1

Applications

  • Control of Testing Machines According to ISO 7500

Approvals & Certifications

  • CE

Approvals & Certifications

  • ISO 376 (EN 10002-3 & DIN 51301)
  • ISO 7500

Cable Length

  • 10 to 20 feet (3 to 6 metres)

Capacity

  • 20 to 100 KN

Communication

  • RS-232C
  • RS-485
  • USB

Electrical Connectors

  • Female-Male Connector DIN 45322

Enclosure, Body Material

  • Nickel-Plated Alloy Steel

Environmental Protection

  • IP65
  • IP67

Excitation Voltage

  • Nominal Range of Excitation Voltage: 3-12 Vdc
  • Reference Excitation Voltage: 10 Vdc

Insulation Resistance

  • > 5,000 megaohms at 50 V

Load

  • Breaking Load: > 300 % of Full Scale

Load Limit

  • Safe Load Limit: 110 % of Full Scale

Repeatability

  • Relative Error with Rotation: < ± 0.2 % R.O. (Class 1) to < ± 0.05 % R.O. (Class 00)
  • Relative Error without Rotation: < ± 0.1 % R.O. (Class 1) to < ± 0.025 % R.O (Class 00)

Resistance

  • Input & Output Resistance: 352 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: 2 mV/V

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Temperature Coefficient

  • Temperature Coefficient of the Sensitivity: Class 00 < ± 0.015 % of Full Scale/10° C (18° F)
  • Temperature Coefficient of the Sensitivity: Class 1, & Class 05 < ± 0.035 % of Full Scale/10° C (18° F)
  • Temperature Coefficient of Zero Signal: Class 00 < ± 0.023 % of Full Scale/10° C (18° F)
  • Temperature Coefficient of Zero Signal: Class 1, & Class 05 < ± 0.03 % of Full Scale/10° C (18° F)

Temperature Range

  • Nominal Temperature Range: -10° to 45° C (14° to 113° F)
  • Reference Temperature: -20° C (-4° F)

Zero Balance

  • ± 0.02 mV/V

Zero Offset

  • Zero Shift after Loading: < ± 0.05 % of Full Scale (Class 1) to < ± 0.012 % of Full Scale (Class 00)
