BM/TB Proximity Switch

Brand: Soldo Controls

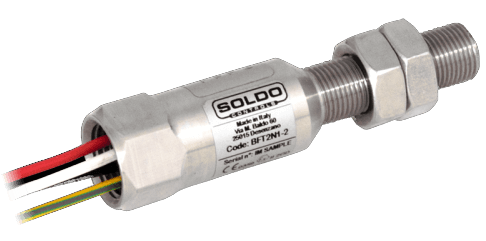

The SOLDO BM and TB Series Proximity Switches, provides a compact design and a cost saving solution for remote valve position feedback in both linear and rotary applications, as well as general-purpose feedback in explosive atmosphere or subsea environments.

The rugged design and ease installation system, provide maximum application versatility.

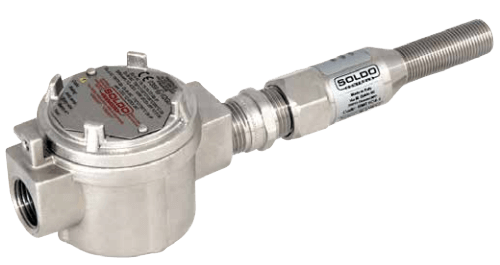

TB series is the conjunction of a BM bolt switch with an aluminum or stainless steel junction box, to allow a direct local wire connection. BM switch utilize industrial standard 5/8"-18 UNF or M16 x 1.5 threads and each switch is provided with two heavy-duty jam nuts.

BM switches can be mounted with standard brackets or customized ones to suit specific applications.

TB series uses the same BM head mounting pattern with the availability of a junction box screw bottom mounting system.
Features
  • AISI 316 Stainless Steel Rugged BM Series Enclosure
  • Standard 450 mm Flying Leads
  • Stainless Steel or Aluminium Materials for Optional Junction Box with TB Series
  • Magnetic or Ferrous Sensing Capabilities
  • Subsea Application on Request, Tested up to 300 bar
  • Optional Subsea Cable and Connector for Underwater Link
show more
Images are representations only.
The SOLDO BM and TB Series Proximity Switches, provides a compact design and a cost saving solution for remote valve position feedback in both linear and rotary applications, as well as general-purpose feedback in explosive atmosphere or subsea environments.

The rugged design and ease installation system, provide maximum application versatility.

TB series is the conjunction of a BM bolt switch with an aluminum or stainless steel junction box, to allow a direct local wire connection. BM switch utilize industrial standard 5/8"-18 UNF or M16 x 1.5 threads and each switch is provided with two heavy-duty jam nuts.

BM switches can be mounted with standard brackets or customized ones to suit specific applications.

TB series uses the same BM head mounting pattern with the availability of a junction box screw bottom mounting system.
Features
  • AISI 316 Stainless Steel Rugged BM Series Enclosure
  • Standard 450 mm Flying Leads
  • Stainless Steel or Aluminium Materials for Optional Junction Box with TB Series
  • Magnetic or Ferrous Sensing Capabilities
  • Subsea Application on Request, Tested up to 300 bar
  • Optional Subsea Cable and Connector for Underwater Link

BM/TB

Series

Switch Type

Switch Quantity

Terminals

Coating

Cable Entry

Approvals

Marking

IP Protection Rating

  • view details

Temperature Range

Material

Specifications

Ambient Temperature Range

  • -40° to 80° C (-40° to 176° F)

Approvals & Certifications

  • ATEX Ex II 2 GD, Ex D IIC T6/T5/T4 Gb, Ex Tb IIIC T80° C/T95° C/T115° C Db
  • cULus Class I,/2 Division 1, Class I,/2 Division 2,
  • EAC Ex II 2 GD, Ex D IIC T6/T5/T4 Gb, Ex Tb IIIC T80° C, T95° C, T115° C Db
  • IEC Ex: Ex II 2 GD, Ex D IIC T6/T5/T4 Gb, Ex Tb IIIC T80° C, T95° C, T115° C Db
  • INMETRO Ex II 2 GD, Ex D IIC T6/T5/T4 Gb, Ex Tb IIIC T80° C/T95° C/T115° C Db
  • SIL 3
  • UL Class I, Division 1 & 2, Groups A, B, C, D, Class II, Division 1, Groups E, F, G, Class II Division 2, Groups F, G

Cable Entry

  • 1/2" NPT
  • M20 x 1.5

Cable Length

  • Up to 131.2 feet (40 meters) - for Subsea Cable with Fast Connector

Electrical Connectors

  • Flying Leads of 17.72" (450 mm)

Electrical Contacts

  • Silver-Plated Snap Acting Contacts

Electrical Rating

  • 1 A at 24 Vdc - for Reed C4
  • 5 A at 250 Vac - for NOVA V3 N1
  • 5 A at 28 Vdc - for NOVA V3 N1

Enclosure Finish

  • Black Polyester Powder-Coated - for Aluminum TB Series
  • Electro-Polishing - for Stainless Steel TB Series

Enclosure, Body Material

  • 316 Stainless Steel - Junction Box

Environmental Protection

  • IP66
  • IP67
  • IP68
  • NEMA 4
  • NEMA 4X

Frequency

  • 100 Hz, Maximum
  • 30 Hz, Maximum

Indication

  • No Visual Position Indicator

Materials of Construction

  • Aluminum - Junction Box

Media

  • Inert Gas

Metric Connection

  • M16 x 1.5 Male

Response Time

  • < 1 millisecond - Operation in Frequency (10÷30 Hz) for Switch BMN1
  • < 2 milliseconds - Single Operation for Switch BMN1
  • 2 milliseconds - for Switch BMC4

Switch Quantity

  • 1 or 2 Switches

Switch Type

  • Proximity
  • SPDT: Magnetic Hermetically Sealed Switch

Temperature Range

  • -50° to 105° C (-58° to 221° F) - Nova V3 N1 Ferrous & Magnetic Target Switch
  • -60° to 105° C (-76° to 221° F) - Reed C4 Magnetic Target Switch

UNF/UNC Connection

  • 5/8"-18 UNF Male
