Images are representations only.
Description
Top exit, w/ 16' integral Teflon cable, armored, 10-32 captive screw, 100 mV/g.
Features
- Rugged hermetic design
- General purpose broad frequency response
- Easy to mount
- EMI/RFI protection
- ESD protection
- Reverse wiring protection
- Low noise
- Low weight
- Hazardous area certified - instrinsically safe
- Manufactured in an approved ISO 9001 facility
Specifications
Specifications
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- CSA Class I Division 1, Grade A, B, C, D, T4 (85° C, Maximum)
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cable (Integral, 16 feet, Gray, 3 Pair, Individually Shielded)
Enclosure, Body Material
- 316L Stainless Steel
Environmental Protection
- Hazardous Area
- Intrinsically Safe
Frequency
- Frequency Response (X & Y Axes,± 10%): 2 to 7,000 Hz
- Frequency Response (Z Axis, ± 3 dB): 2 to 10,000 Hz
Noise
- Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 160 µg
- Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 1.0 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 1.4 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1%
Output Impedence
- Maximum
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-5 mA
Range
- Acceleration Range: 40 G Peak
RFI/EMI Protection
- Yes
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Maximum
- Electromagnetic Sensitivity, Equivalent G, Maximum
- Sensitivity, ± 10%, 25° C: 100 mV/g
- Transverse Sensitivity, Maximum
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Turn-On Time
- < 1 second
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage, Nominal: 11 Vdc
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

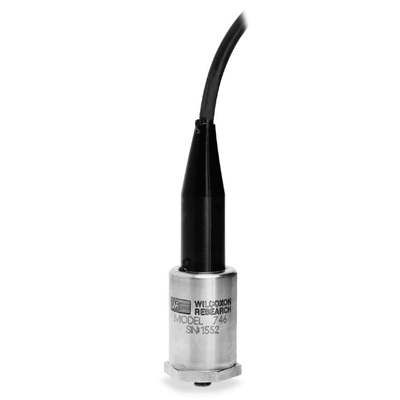

Model 746 UnderWater Accelerometer
Wilcoxon Sensing Technologies

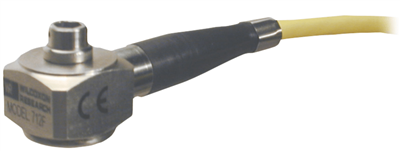

Model 712F High Frequency, Integral Cable Accelerometer
Wilcoxon Sensing Technologies

Model 786F General Purpose Integral Cable Accelerometer
Wilcoxon Sensing Technologies

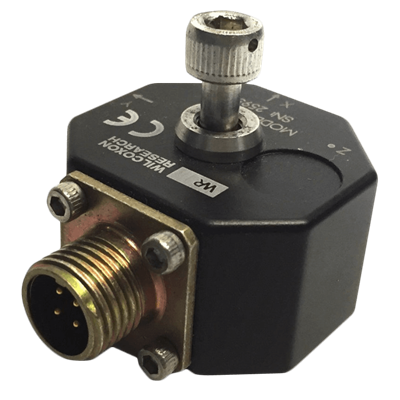

Model 993A General Purpose Triaxial Accelerometer
Wilcoxon Sensing Technologies

Model 786A-D2 Class I Division 2 Certified Accelerometer
Wilcoxon Sensing Technologies

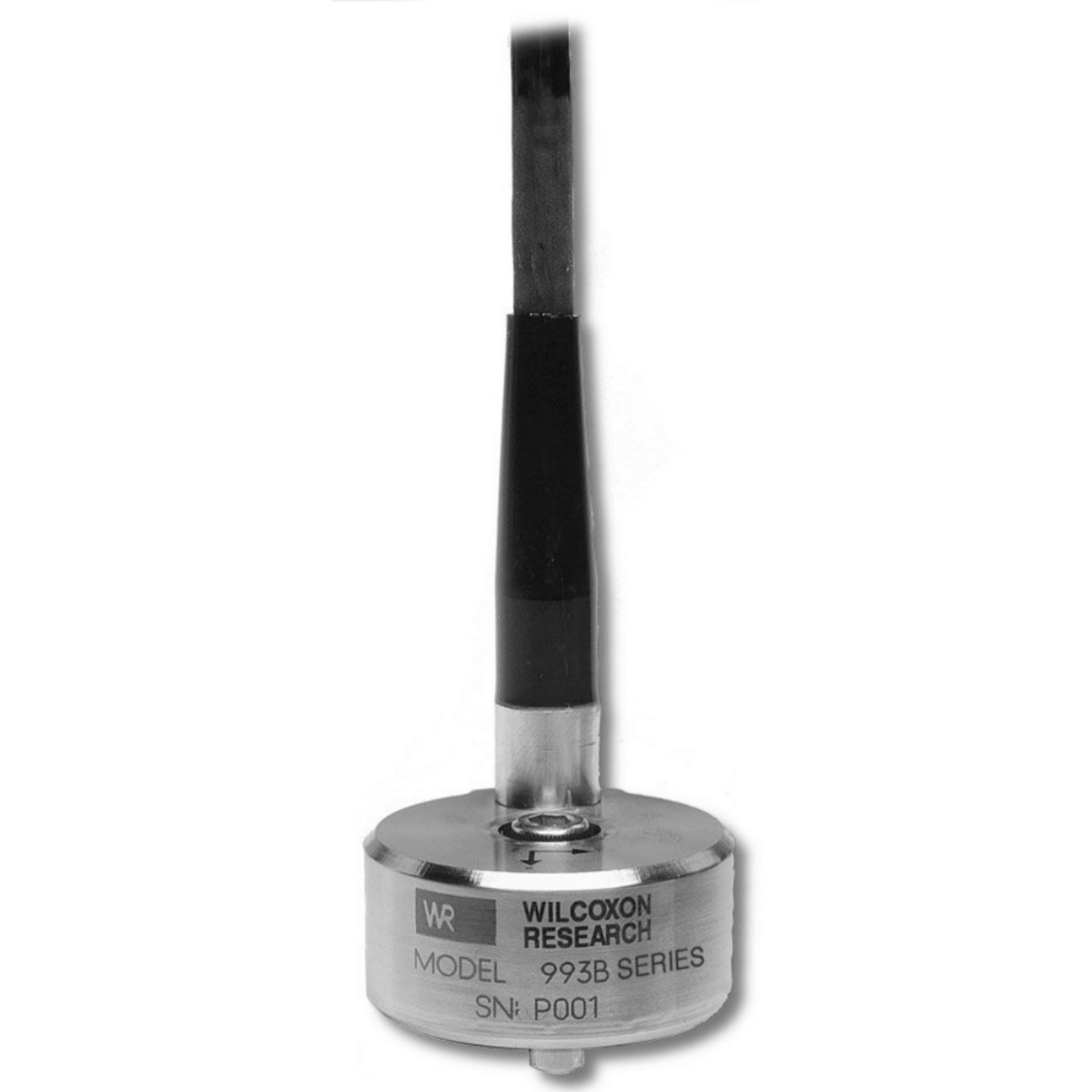

Model 993B-7-M12 General Purpose Hermetic Triaxial Accelerometer
