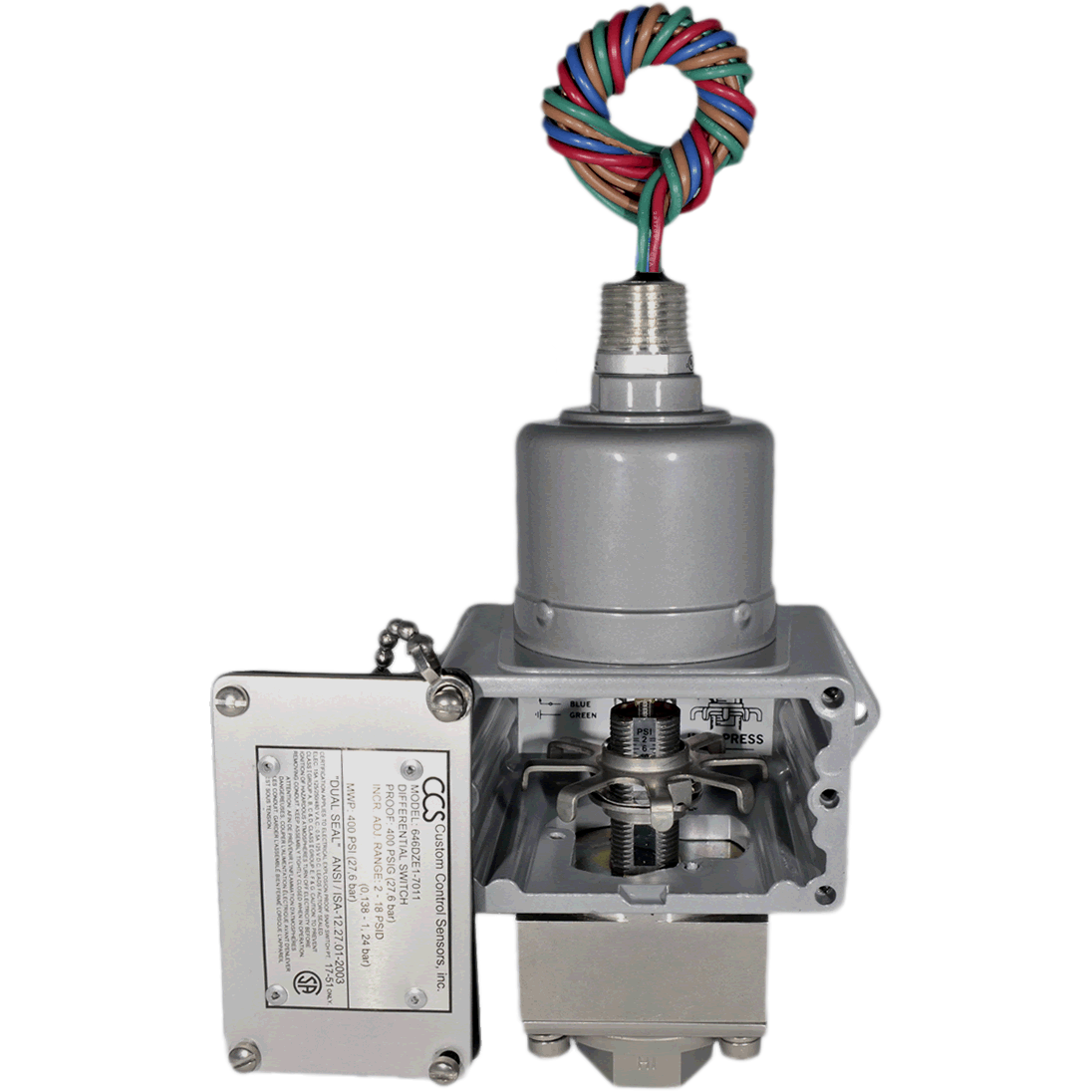

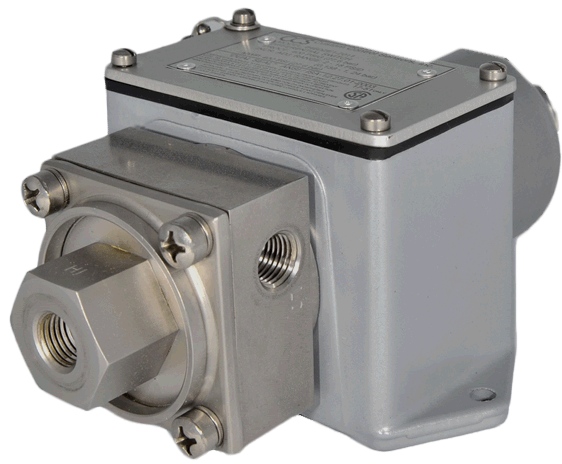

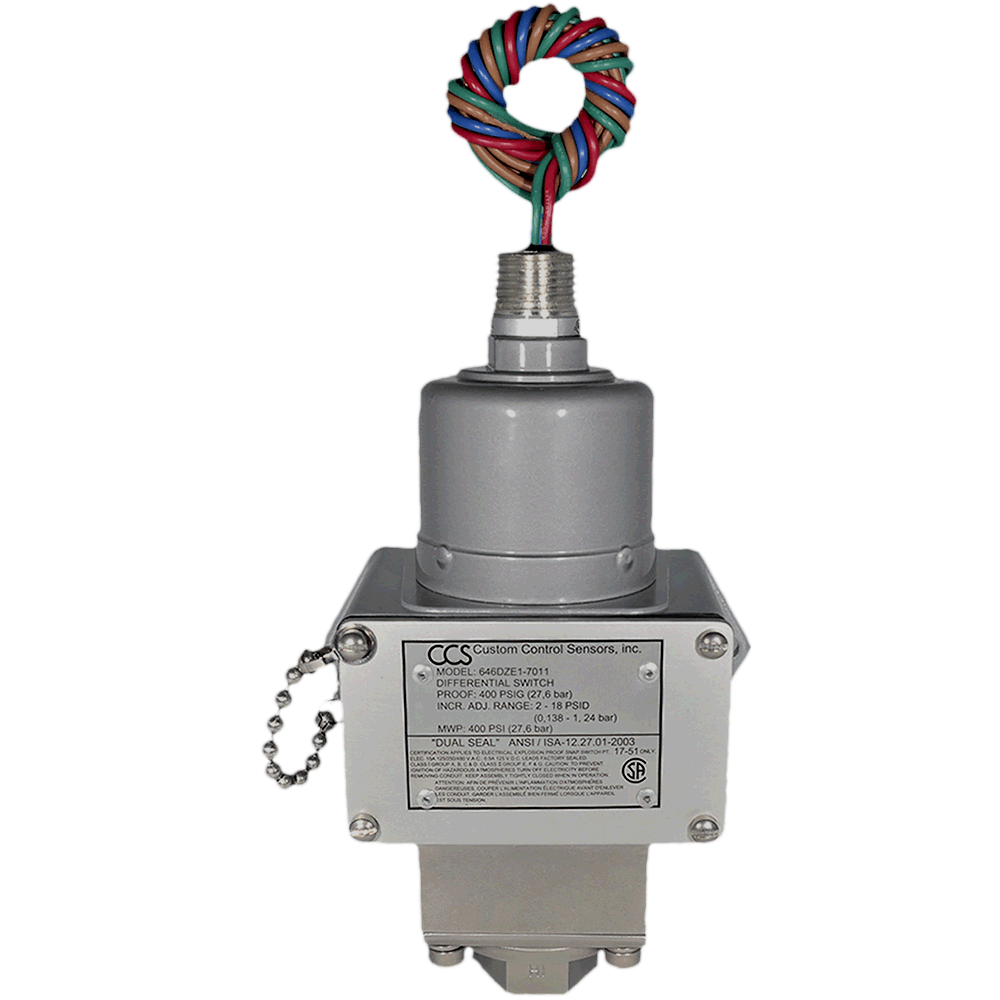

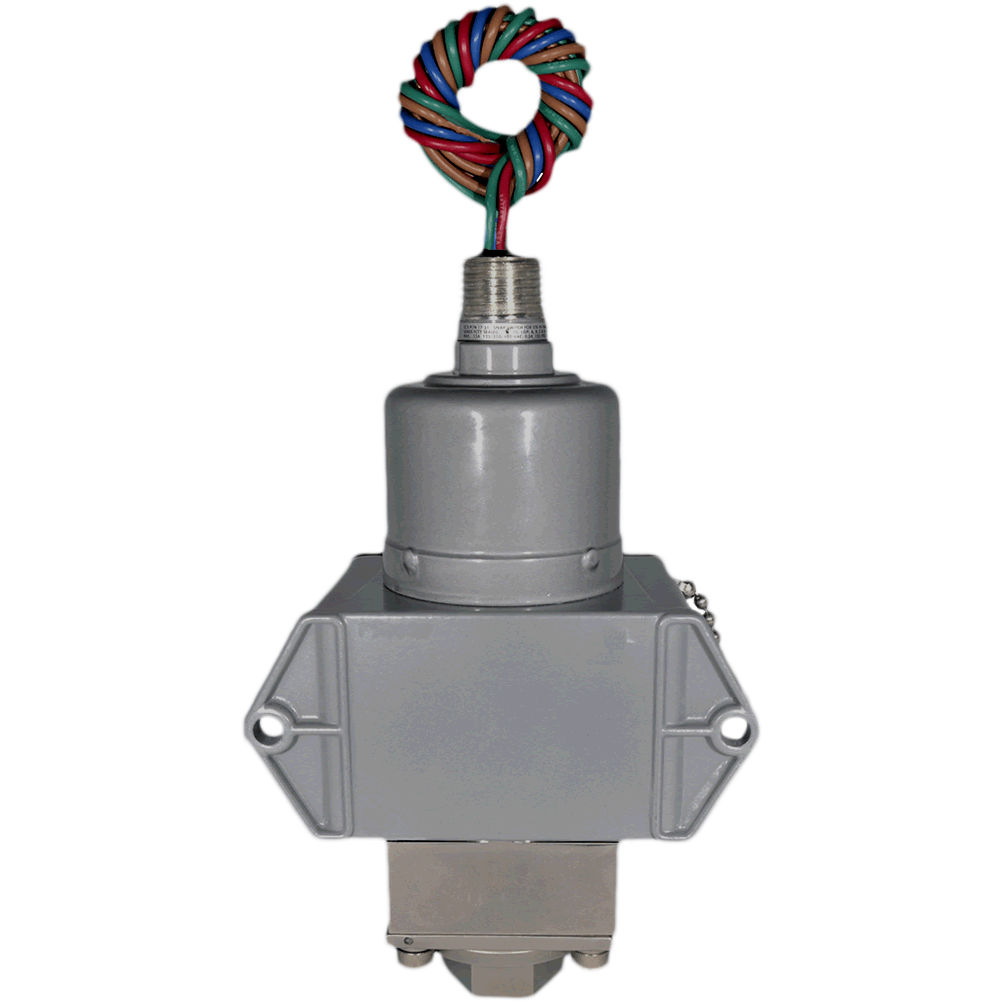

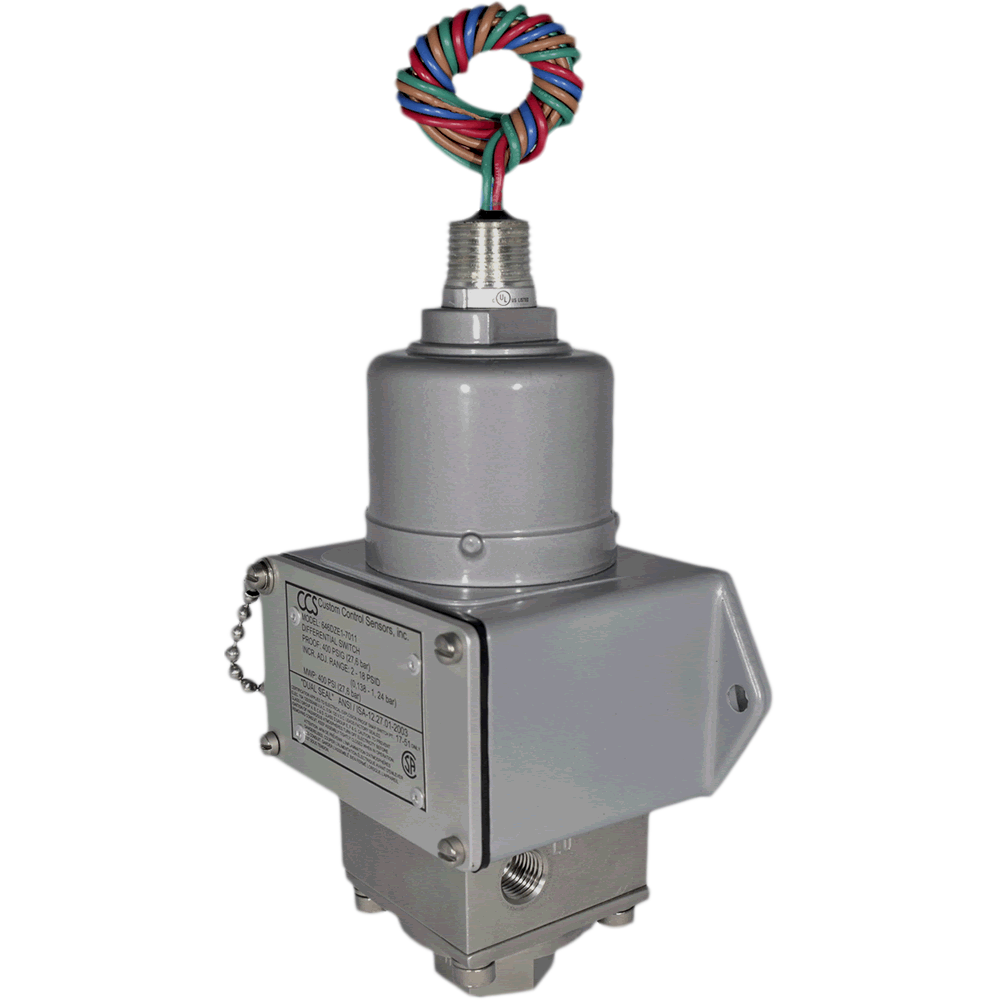

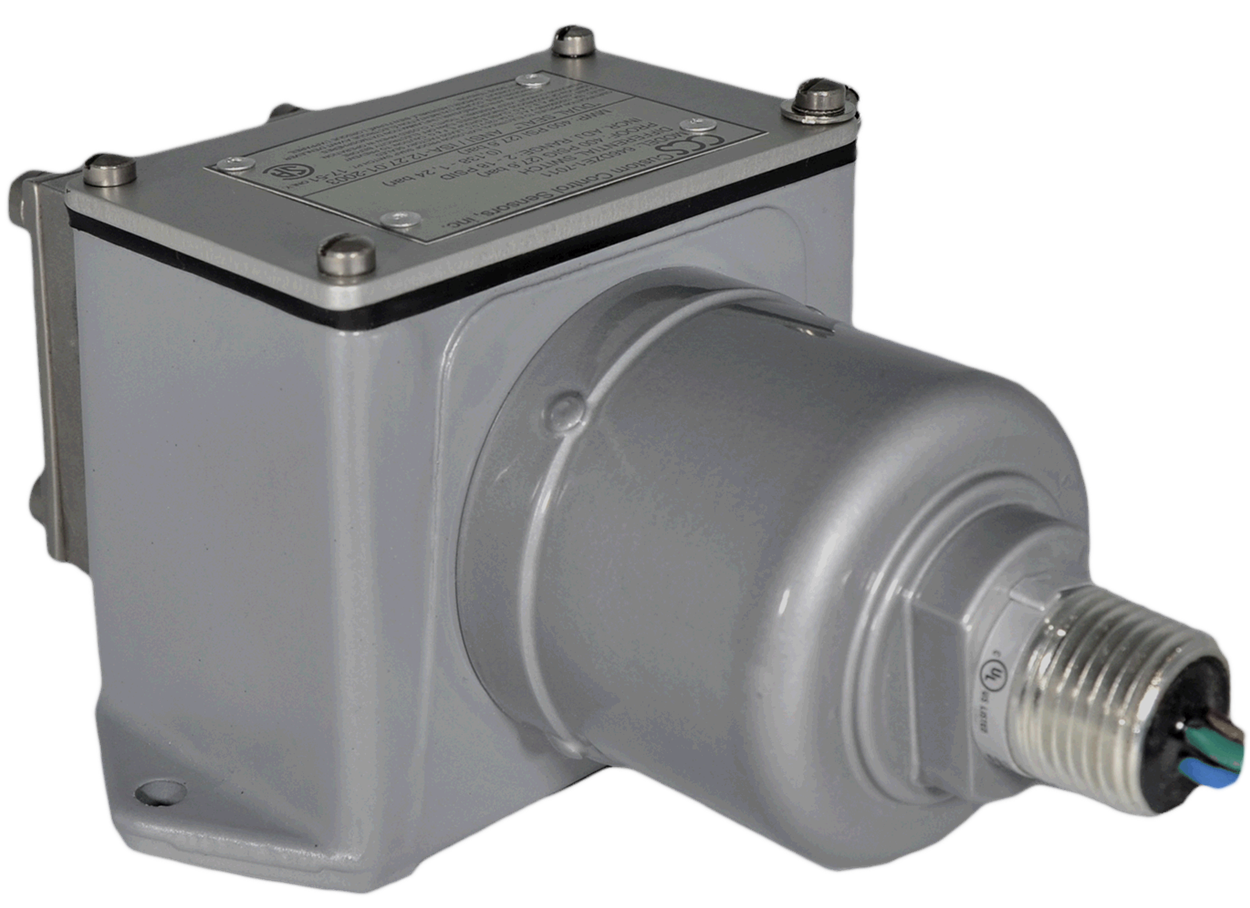

646DZE-7011 Series Pressure Switch

Brand: Custom Control Sensors
  • Adjustable Set Point Range:
    • Increasing: 1.2 to 18 psid, 8.3 to 124.1 kPa, 0.083 to 1.24 bar
    • Decreasing: 0.4 to 17.2 psid, 2.8 to 118.5 kPa, 0.028 to 1.19 bar
  • Deadband: Approximately 0.8 psi, 5.51 kPa, 0.055 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT 300 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CRN, CE Mark, NACE, Dual Seal
show more
Images are representations only.
  • Adjustable Set Point Range:
    • Increasing: 1.2 to 18 psid, 8.3 to 124.1 kPa, 0.083 to 1.24 bar
    • Decreasing: 0.4 to 17.2 psid, 2.8 to 118.5 kPa, 0.028 to 1.19 bar
  • Deadband: Approximately 0.8 psi, 5.51 kPa, 0.055 bar
  • System Pressure (Maximum): 400 psig, 2757.90 kPa, 28 bar
  • Proof Pressure:
    • Both Ports: 750 psig, 5171.07 kPa, 52 bar
    • High: 750 psig, 5171.07 kPa, 52 bar
    • Low: 400 psig, 2757.90 kPa, 28 bar
  • Wetted Materials:
    • Pressure Port: 1/4" Female NPT 300 Stainless Steel
    • Diaphragm: Stainless Steel
    • O-Ring: Viton
  • Relay: SPDT or DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CRN, CE Mark, NACE, Dual Seal
34 models matching criteria
646DZE1-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
21 In Stock
$1,346.27USD
$8.27 Shipping
646DZE4-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
16 In Stock
646DZEM1-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
14 In Stock
$1,463.84USD
$8.27 Shipping
646DZE2-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
13 In Stock
$1,346.27USD
$8.27 Shipping
646DZE3-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
7 In Stock
$1,419.13USD
$8.27 Shipping
646DZE5-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
7 In Stock
$1,419.13USD
$8.27 Shipping
646DZETM4-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Teflon O-Ring, DPDT, Teflon Leads, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
10 - 12 weeks
$1,876.16USD
$8.27 Shipping
646DZE1-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Teflon Leads, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
$1,990.42USD
$8.27 Shipping
646DZEM2-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
6 - 8 weeks
$1,997.87USD
$8.27 Shipping
646DZEM2-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT, Teflon Leads, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
$2,044.24USD
$8.27 Shipping
646DZE11-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
$2,054.17USD
$8.27 Shipping
646DZEM1-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, EPDM, Viton, DPDT, Teflon Leads, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
$2,054.17USD
$8.27 Shipping
646DZEM11-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT, Teflon Leads, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
$2,174.23USD
$8.27 Shipping
646DZEY2-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, Approvals: ATEX, GOST, IECEx, CE, CRN, CCC, EAC, Dual Seal
5 - 7 weeks
$2,176.71USD
$8.27 Shipping
646DZEY1-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, SPDT, Approvals: UL, CSA, Approvals: ATEX, GOST, IECEx, CE, CRN, CCC, EAC, Dual Seal
5 - 7 weeks
$2,218.11USD
$8.27 Shipping
646DZE11-7030
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/2" NPT SST Port & Diaphragm, Viton O-Ring, SPDT, Gold Contacts, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 8 weeks
646DZE1-7054
CCS DUAL-SNAP Diff. Press Switch, Hazardous Area, 1/4" NPT 300 SST Port, Polyimide Diaphragm, Viton O-Ring, SPDT, 2m Leads, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
646DZEB4-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Buna-N O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
646DZEBM4-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Buna-N O-Ring, DPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
646DZEBM4-7065
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Buna-N O-Ring, DPDT, Teflon
5 - 7 weeks
646DZEBM4-7104
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Buna-N O-Ring, DPDT
5 - 7 weeks
646DZEFM4-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, EPDM, DPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
72 - 84 days
646DZEM3-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT
5 - 7 weeks
646DZEM3-7030
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Viton O-Ring, DPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks
646DZET5-7011
CCS DUAL-SNAP Differential Pressure Switch, Hazardous Area, 1/4" NPT 300 SST Port & Diaphragm, Teflon O-Ring, SPDT, Approvals: UL, CSA, CRN, CE, CCC, EAC, Dual Seal
5 - 7 weeks

646DZE-7011

Base Model

Process Connection

O-Ring

Output

Electrical Contacts

Agency Approvals

Paint

Documentation
