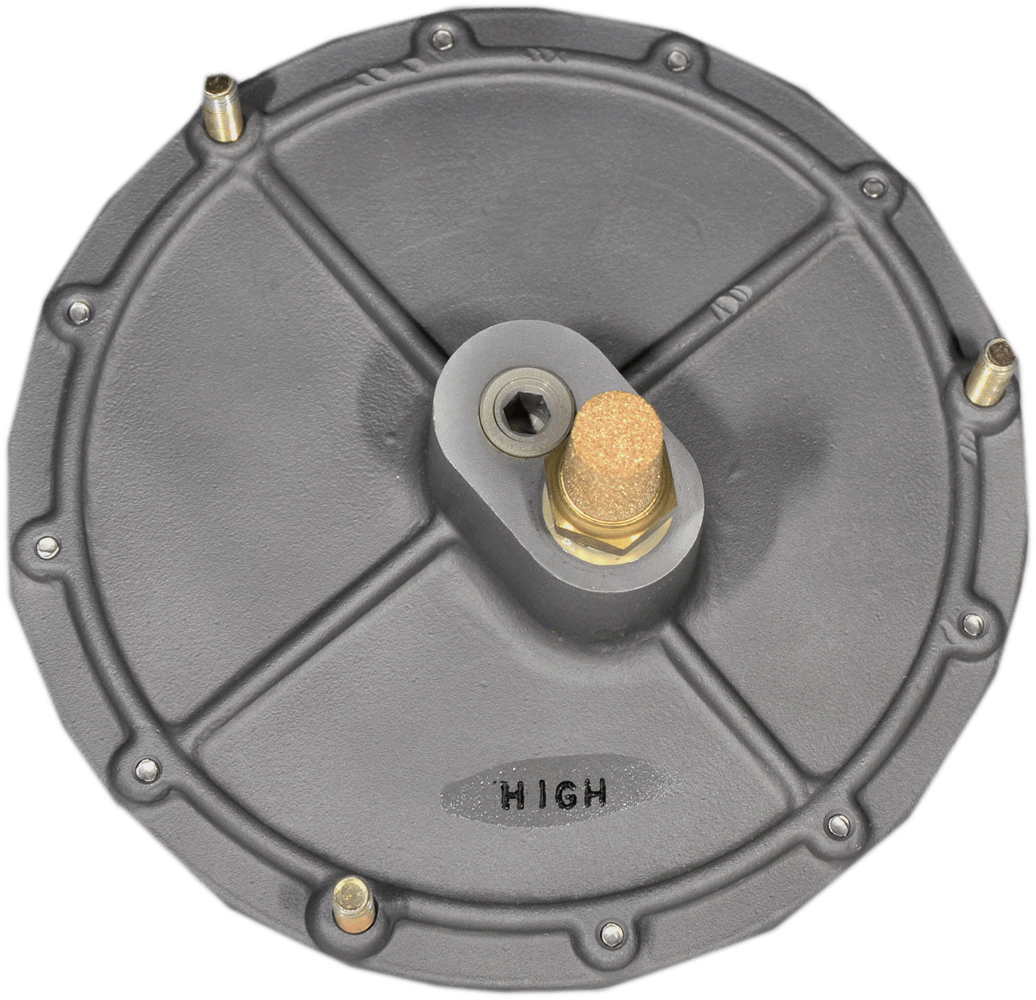

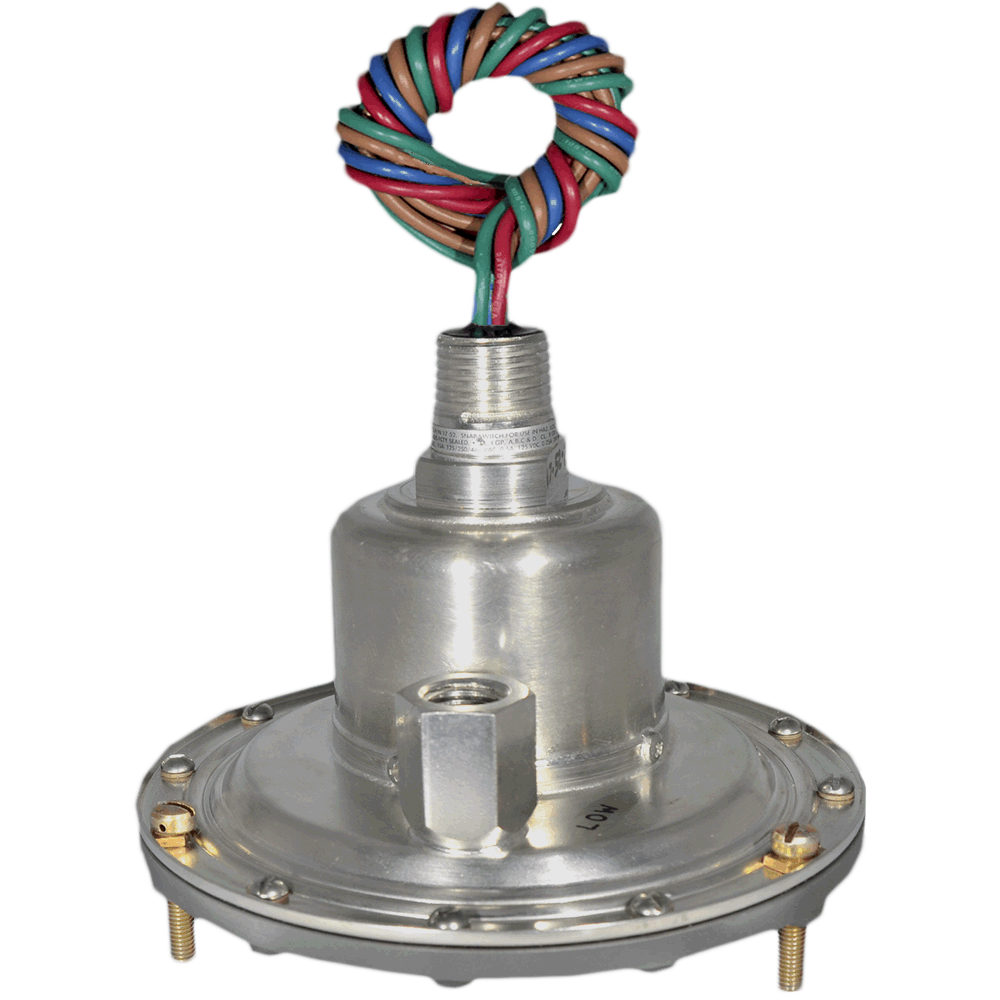

675VE8000 Series Pressure Switch

Brand: Custom Control Sensors
Request Information
Favorite
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 Inches H20, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 Inches H20, 1.8 to 69.8 mbar
  • Deadband: Approximately 0.8 to 3.0 Inches H20, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
show more
Features
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 31 Inches H20, 3.7 to 77.2 mbar
    • Decreasing: 0.7 to 28 Inches H20, 1.8 to 69.8 mbar
  • Deadband: Approximately 0.8 to 3.0 Inches H20, 1.9 to 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4"-18 Female NPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N
  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D
  • CE Mark, Dual Seal
Close

Displaying prices & availability for Virginia, United States in USD. Change location or currency

13 models matching criteria
675VEASM8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 0.07 to 0.25 psi, 0.48 to 1.72 kPa, 0.004 to 0.017 bar
    • Decreasing: 0.01 to 0.18 psi, 0.07 to 1.24 kPa, 0.001 to 0.012 bar

  • Deadband: Approximately 1.8 Inches H20, 4.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VEY8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, ATEX, CSA View More
  • Adjustable Set Point Range:

    • Increasing: 1.5 to 6.9 Inches H2O, 3.7 to 17.2 mbar
    • Decreasing: 0.2- 5.6 Inches H20, 0.5 to 14 mbar

  • Deadband: Approximately 1.3 Inches H20, 3.2 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 25 psig, 1724 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VEY8003
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, ATEX View More
  • Adjustable Set Point Range:
    • Increasing: 13 to 18.9 Inches H2O, 32.4 to 47.1 mbar
    • Decreasing: 11 to 16.9 Inches H2O, 27.4 to 42.1 mbar

  • Deadband: Approximately 2.0 Inches H20, 5.0 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 15 psig, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA, ATEX
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VE8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 1.5 to 6.9 Inches H2O, 3.7 to 17.2 mbar
    • Decreasing: 0.7 to 6.1 Inches H2O, 1.8 to 15.3 mbar

  • Deadband: Approximately 0.8 Inches H20, 1.9 mbar
  • System Pressure (Maximum): 10 psig, 689 mbar
  • Proof Pressure: 15 psig, 1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VE8002
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 0.25 to 0.47 psi, 1.72 to 3.24 kPa, 0.017 to 0.032 bar
    • Decreasing: 0.20 to 0.41 psi, 1.38 to 2.83 kPa, 0.014 to 0.028 bar

  • Deadband: Approximately 1.5 Inches H20, 3.7 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VE8003
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 0.47 to 0.68 psi, 3.24 to 4.69 kPa, 0.03 to 0.05 bar
    • Decreasing: 0.40 to 0.61 psi, 2.76 to 4.21 kPa, 0.03 to 0.04 bar

  • Deadband: Approximately 2.0 Inches H20, 5.0 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VE8004
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 0.69 to 0.90 psi, 4.76 to 6.21 kPa, 0.05 to 0.06 bar
    • Decreasing: 0.60 to 0.81 psi, 4.14 to 5.58 kPa, 0.04 to 0.06 bar

  • Deadband: Approximately 2.5 Inches H20, 6.2 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VE8005
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N View More
  • Adjustable Set Point Range:
    • Increasing: 0.90 to 1.12 psi, 6.21 to 7.72 kPa, 0.06 to 0.08 bar
    • Decreasing: 0.79 to 1.01 psi, 5.45 to 6.96 kPa, 0.05 to 0.67 bar

  • Deadband: Approximately 3.0 Inches H20, 7.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: SPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VEAM8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Viton, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 0.07 to 0.25 psi, 0.48 to 1.72 kPa, 0.004 to 0.017 bar
    • Decreasing: 0.01 to 0.18 psi, 0.07 to 1.24 kPa, 0.001 to 0.012 bar

  • Deadband: Approximately 1.8 Inches H20, 4.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Viton

  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
675VEM8001
CCS DUAL-SNAP Vacuum Switch, Haz. Area, 1/4" NPT Aluminum Port, Polyimide, Buna-N, DPDT View More
  • Adjustable Set Point Range:

    • Increasing: 0.07 to 0.25 psi, 0.48 to 1.72 kPa, 0.004 to 0.017 bar
    • Decreasing: 0.01 to 0.18 psi, 0.07 to 1.24 kPa, 0.001 to 0.012 bar

  • Deadband: Approximately 1.8 Inches H20, 4.5 mbar
  • System Pressure (Maximum): 10 psig, 68.95 kPa, 689 mbar
  • Proof Pressure: 15 psig, 103.42 kPa,1034 mbar
  • Wetted Materials:
    • Pressure Port: 1/4" FNPT Aluminum
    • Diaphragm: Polyimide
    • O-Ring: Buna N

  • Relay: DPDT
  • UL, CSA
    • Explosion Proof - Class 1, Div/Zone 1, Groups A, B, C and D

  • CE Mark
Contact For Inventory
Show More Models (2)
Close
Close

Specifications

Brand

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • ATEX
  • CE
  • CRN
  • CRN - N.W. Territories
  • CSA
  • Dual Seal
  • EMC
  • LVD
  • PED
  • RoHS
  • RTN
  • UL

Deadband, Approximate

  • Inches WC: 0.8 to 3.0
  • mbar: 1.9 to 7.5

Diaphragm Material

  • Polyimide

Electrical Certification

  • c-UL, UL/CSA Explosion-proof: Div. 1, 2 Hermetically Sealed Electrical Assembly P/N 46-1058 (46-1061 for M (DPDT) Model Option), Listed by Both Underwriter's Laboratories, Inc. (File No. E32961) & Canadian Standard Association (CSA) Testing Laboratories

Electrical Connectors

  • 1/2” NPT Male

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 15 A at 125/250/480 Vac Resistive, 0.4 A at 125 Vdc, 0.2 A at 250 Vdc
  • 5 A at 125/250 Vac Resistive, 5 A at 28 Vdc, 0.5 A at 125 Vdc

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4, 13 / IP65, 66

NPT Connection

  • 1/4” NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Buna-N
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • mbar: 1724
  • psig: 25

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • Inches WC: -0.7 to 31
  • mbar: -1.7 to 77.2

Set Point - Increasing

  • Inches WC: -1.5 to 31
  • mbar: -3.7 to 77.2

Switch Type

  • DPDT
  • SPDT

System Pressure

  • kPa: 101.7
  • mbar: 1,017
  • psig: 14.75
