MPBM Medium Pressure Trunnion Ball Valve Manifolds

Brand: Bifold Group

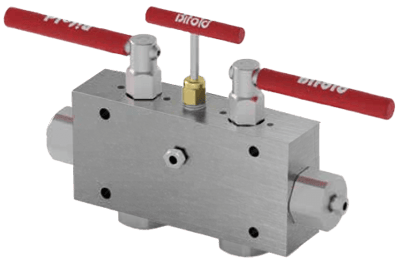

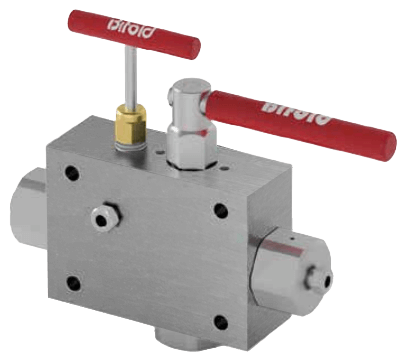

The bifold range of medium pressure trunnion ball manifolds have been developed to provide safe and reliable intervention and control of liquid service applications up to 20,000 psi / 1379 bar. They are available in a variety of Configurations Including single block & bleed and a double block & bleed, designed for instrument calibration or repair. The manifolds consist of trunnion ball valve isolation valves and a needle valve vent, reducing the number of possible leak paths and in turn reducing system costs and weight.
Features
  • Available in a number of configurations for a variety of applications
  • Maintenance free stem sealing
  • Bi-directional straight through flow path minimising pressure drop
  • Non rotating anti-galling tip as standard
  • Vee tip vent valve
  • Compact design
  • High tensile 316L CW stainless steel bodies as standard
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Operating temperature range of -20° C to 170° C
  • Tube sizes from ¼" to 1"
show more
Images are representations only.
The bifold range of medium pressure trunnion ball manifolds have been developed to provide safe and reliable intervention and control of liquid service applications up to 20,000 psi / 1379 bar. They are available in a variety of Configurations Including single block & bleed and a double block & bleed, designed for instrument calibration or repair. The manifolds consist of trunnion ball valve isolation valves and a needle valve vent, reducing the number of possible leak paths and in turn reducing system costs and weight.
Features
  • Available in a number of configurations for a variety of applications
  • Maintenance free stem sealing
  • Bi-directional straight through flow path minimising pressure drop
  • Non rotating anti-galling tip as standard
  • Vee tip vent valve
  • Compact design
  • High tensile 316L CW stainless steel bodies as standard
  • Exotic materials available upon request
  • Traceability via a unique serial number stamped on the valve body
  • Operating temperature range of -20° C to 170° C
  • Tube sizes from ¼" to 1"

MPBM

Pressure Rating

Bore Size

Connection Size

Vent Connection

Configuration

O-Ring Material

Handle Options

Vent

Material

Specifications

Brand

Applications

  • Liquid Service

Bore Size

  • 0.19" (5 mm) (9/16", Maximum
  • 0.39" (10 mm)

Configuration

  • Double Block
  • Double Block & Bleed
  • Single Block & Bleed

Enclosure, Body Material

  • High Tensile 316L CW Stainless Steel

Materials of Construction

  • 6MO / 254MO Stainless Steel
  • Duplex UNS S31803
  • Hastelloy® C-276
  • Inconel® 625 UNS N06625
  • Inconel® 825 UNS N08825
  • Monel® 400 UNS N04400
  • Nickel 200 UNS N02200
  • Super Duplex UNS S32750 / 32760
  • Titanium Grade 2 UNS R50400

Operating Temperature

  • -20° to 170° C (-4° to 338° F)

Orifice Size

  • 0.11 to 0.31" (2.80 to 7.90 mm) Minimum

O-Ring Material

  • Endura V91A
  • HNBR
  • Nitrile
  • Viton (80 Shore)

Supply Pressure - Maximum

  • psi: 20,000 (kPa: 137,900, bar: 1,379)

Temperature Range

  • -20° to 120° C (-4° to 248° F) - Nitrile
  • -20° to 160° C (-4° to 320° F) - HNBR
  • -20° to 170° C (-4° to 338° F) - Viton (80 Shore), Endura V91A

Tube Inlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube

Tube Outlet

  • 1" Tube
  • 1/4" Tube
  • 3/4" Tube
  • 3/8" Tube
  • 9/16" Tube

Vent

  • Anti Tamper Vent

Vent Connection Size

  • 1/4"
  • 3/8"
