Description

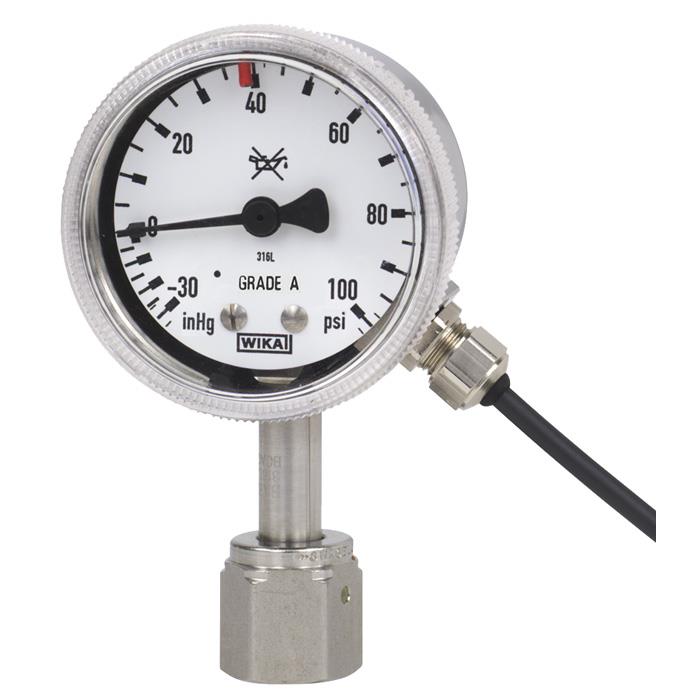

UHP, stainless steel version, with reed contact.
Features
- Built-in electrical switch contact (reed contact)
- VCR® compatible pressure connection threads
- Helium leak tested
- Electropolished case
- Process connection surface finish Ra ≤ 0.25 μm
Specifications
Specifications
Brand
Nominal Size
- 2"
Accuracy Class
- Grade A to ASME B40.1
Scale Range
- 0 to 4 to 0 to 400 bar (0 to 60 to 0 to 6000 psi)
- or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure Limitation
- Steady: 3/4 x full scale value
- Short time: full scale value
Operating Temperature
- Ambient: -20 ... +60° C
- Medium: +100° C maximum
Temperature effect
- When the temperature of the measuring system deviates from the reference temperature (+20° C): max. ±0.4 %/10 K of Full Scale Value
Ingress Protection
- IP 54 per EN 60529 / lEC 529
Applications
Typical Applications
- For gaseous and liquid, also aggressive media for demanding high purity applications, also in aggressive ambience
- Suitable for all UHP (Ultra High Purity) applications
- Semiconductor and flat panel industry
- Gas distribution systems, medical gases
- Hook-up application
