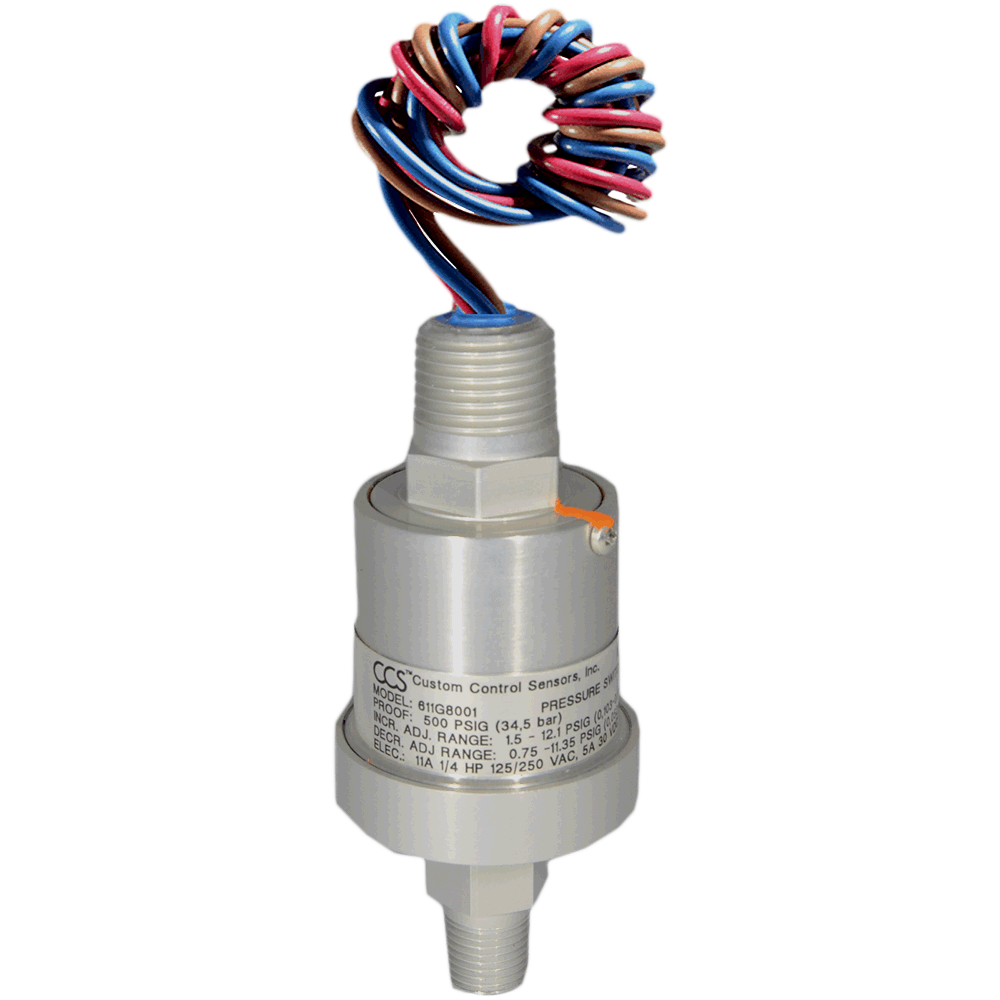

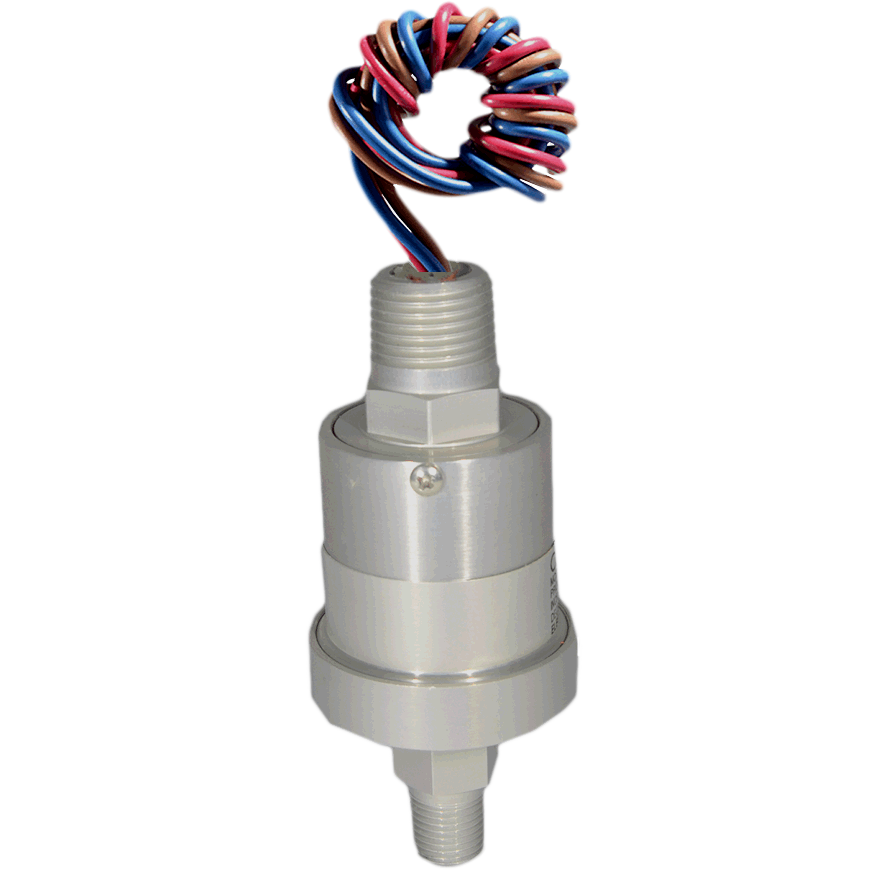

611GZ8100 Series Pressure Switch

Brand: Custom Control Sensors
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact and externally adjustable for factory setting or convenient field set point adjustment
  • Repeatable and stable set points.
  • Vibration and shock resistant.
  • High cycle life
  • High over-pressure capability
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
show more
  • Highly reliable devices utilizing the CCS Dual-Snap® Belleville disc spring principle pioneered by CCS’ engineers.
  • Engineering based on aerospace technology.
  • Rigid, compact and externally adjustable for factory setting or convenient field set point adjustment
  • Repeatable and stable set points.
  • Vibration and shock resistant.
  • High cycle life
  • High over-pressure capability
  • Various options for wetted materials and electrical ratings to meet a wide range of application requirements and media compatibility.
611GZ8101-7077
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT
Out of Stock
$502.63 CAD $230.00CAD
Does not ship to US
611GZ8101
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT
Out of Stock
$838.00CAD
Does not ship to US
611GZ8101-7075
CCS DUAL-SNAP Pressure Switch, Non-Hazardous Area, 1/4" NPT SST Port & Diaphragm, Viton O-Ring, SPDT
Out of Stock

Specifications

Adjustment Type

  • Field Adjustable

Approvals & Certifications

  • CE
  • CRN
  • CRN - Alberta
  • CRN - British Columbia
  • CRN - N.W. Territories
  • CRN - Saskatchewan
  • EMC
  • LVD
  • RoHS

Deadband, Approximate

  • bar: 0.085 to 0.69
  • kPa: 13.79 to 68.95
  • psi: 2 to 10

Diaphragm Material

  • Stainless Steel

Electrical - Free Leads

  • 18" (45 cm) Free Leads
  • 18" (45 cm) Teflon Leadwire

Electrical Connectors

  • 1/2" NPT Male
  • Electrical Connector with 4-Blades, Conforms to DIN-43650
  • Electrical Connector with Gold Contacts & Blades, Conforms to DIN-43650

Electrical Contacts

  • Gold
  • Silver

Electrical Rating

  • 1 A at 125 Vac, 50/60 Hz
  • 11 A at 125/250 Vac

Enclosure, Body Material

  • Aluminum
  • Stainless Steel

Environmental Protection

  • IP65
  • IP66
  • NEMA 13
  • NEMA 4
  • Weatherproof

NACE & NIST

  • NACE

NPT Connection

  • 1/4" NPT Female

Operating Temperature

  • -40° to 86° C (-40° to 187° F)

O-Ring Material

  • Ethylene Propylene (EPR)
  • Viton

Process Connection Material

  • Aluminum

Proof Pressure

  • bar: 34.5 to 68.9
  • kPa: 3,447 to 6,895
  • psig: 500 to 1,000

Service

  • Sweet (Oil & Gas)

Set Point - Decreasing

  • bar: 00.0689 to 11.72
  • kPa: 06.895 to 1,172
  • psig: 1 to 170

Set Point - Increasing

  • bar: 00.2068 to 12.41
  • kPa: 20.68 to 1,241
  • psig: 3 to 180

System Pressure

  • bar: 17.2 to 34.5
  • kPa: 1,724 to 3,447
  • psig: 250 to 500
