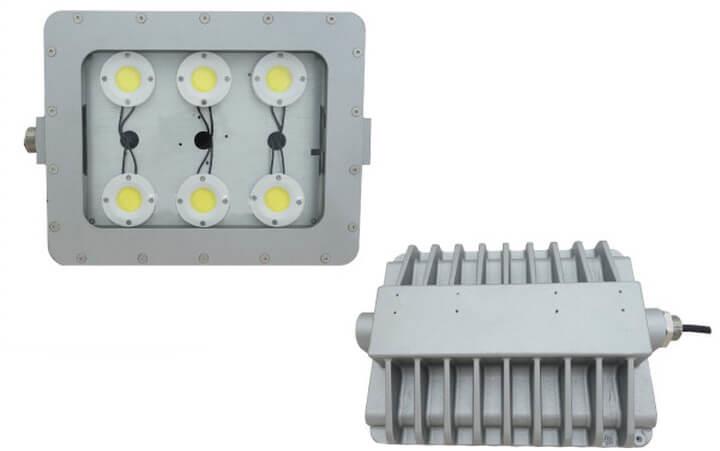

L1733N, Top Hi-Tech, cULus, 100°C Heat Resistant & High Humidity LED Flood Light (COB) 120W

Brand: Top Hi-Tech Inc
cULus Non-Hazardous Location Approved for Canada & USA
L1733N 100°C High Temp Resistant LED Flood Light COB, 120 Watt
  • cULus Approvals:
    • Ul 844
    • UL 1598
    • UL 8750
    • CSA: C22.2 No.250.0
  • Ambient Temperature:
    • +65°C ~ +100°C (+149°F ~ +212°F)
  • Degree of Protection:
    • IP67 / NEMA 6
Features
  • 100°C High Heat Resistant
    • Wide Area Flood Light
    • High Humidity & Corrosion Resistance
    • Easy installation and maintenance
    • Applicable to High Temperature Environment
    • Light Color: Cool White
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight
show more
cULus Non-Hazardous Location Approved for Canada & USA
L1733N 100°C High Temp Resistant LED Flood Light COB, 120 Watt
  • cULus Approvals:
    • Ul 844
    • UL 1598
    • UL 8750
    • CSA: C22.2 No.250.0
  • Ambient Temperature:
    • +65°C ~ +100°C (+149°F ~ +212°F)
  • Degree of Protection:
    • IP67 / NEMA 6
Features
  • 100°C High Heat Resistant
    • Wide Area Flood Light
    • High Humidity & Corrosion Resistance
    • Easy installation and maintenance
    • Applicable to High Temperature Environment
    • Light Color: Cool White
  • "AC IN LED Technology"
    • No Driver (Ballast), to fail, No Efficiency Loss
    • Long Lifespan ( 60,000 hrs )
    • LED Lighting provides 2 million times power cycle
    • High Efficiency, Generates Less Heat
    • Smaller Volume and Light weight

Specifications

Standards

  • UL 844
  • UL 1598
  • UL 8750
  • CSA C22.2 No.250.0

Ambient Operating Temperature

  • +65°C ~ +100°C (+149°F ~ +212°F)

Watts (±10%)

  • 120 Watts

Rated Voltage (±10%)

  • 120V / 220V AC

Frequency

  • 50 / 60 Hz

Amps

  • 120V: 1.00A
  • 277V: 0.55A

Power Factor

  • cos≧0.9

Color of Light (C.C.T.)

  • Cool White: 5000K

CRI

  • Cool White≧70

Lumen (± 10%)

  • COB: ( 5000K: 16,560 lm )

Beam Angle

  • X-110° / Y-110°

Degree of Protection

  • IP67/ NEMA 6

Material

  • Enclosure: Aluminium Alloy
  • Lens: Tempered Clear Glass

LED Service Life

  • 60,000 hrs*

Entrance Thread

  • Side Entry
  • 3/4” FNPT

Electrical Cable

  • 3 Feet (1 Meter) Silicone Rubber Cable
  • cUR, Type AWM 4476, 300V, 200°C, 0.75mm2 x 3C (18 AWG) FT1

Warranty

  • 1 years warranty without warranting lumen depreciation

Typical Applications

● Pulp & Paper (Cooking and Drying Area)
● Glass Factory (Processing Area)
● Metal Forging or Metal Recycling Plant (Heating or Forging Area)
● Oil & Gas (Furnace Towers or Compressor Rooms)
● Garbage Processing Plant (Burning Area)
● Coal Power Plant (Burning Area)
● Gas Turbine Power Plant (Gas Turbine Area)
● Painting Factory (Drying Area)
● Winery (Distillation Chamber)
● Textile (Dyeing and Finishing Area)
● Food Process (Heating, Cooking or Baking Area)
