Images are representations only.

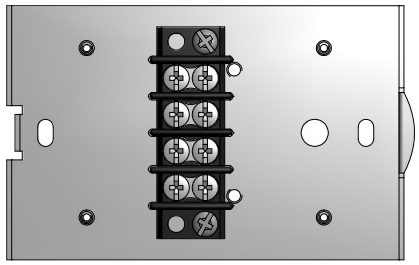

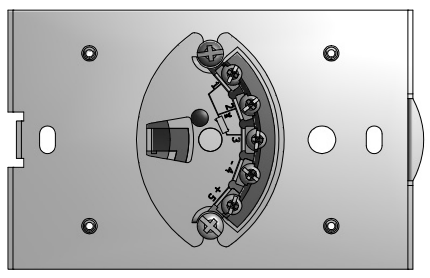

The Pyromation thermostat temperature sensors are provided with the sensor, or the sensor and a (4 to 20) mA temperature transmitter, mounted on a subplate within a standard size thermostat housing.

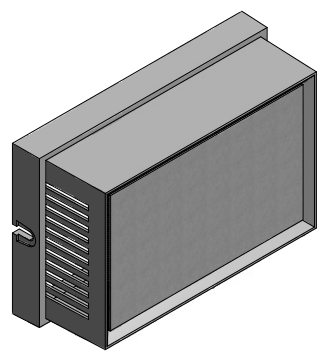

The thermostat housing measures 2 3/4"h x 4 1/2"w x 1 5/8"d and can be mounted either horizontally or vertically on a 2" x 4" electrical handibox.
The cover is vented on two sides to provide for airflow over the sensing element, regardless of mounting position.
The standard temperature sensing elements are available as a fluoropolymer insulated thermocouple or a three-wire RTD.
