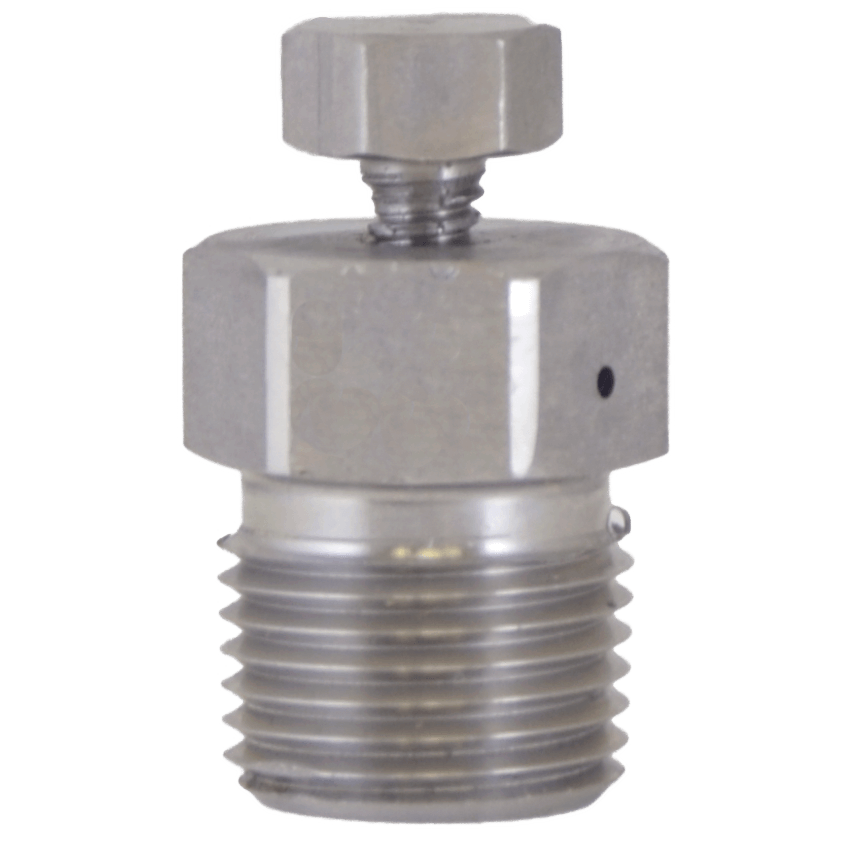

Bleed Plug A7-526-C0

Brand: PGI International
Design: Mini-Hex Bleed Plug
Connection: 1/2" NPT Male
Features
  • 316 Stainless Steel Bleed Screw
  • Max Pressure 10000 psi @ +200°F (+93°C) / 1500 psi @ +1000°F (+538°C)
  • Stainless Steel Body
  • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • 100% Pressure Tested
show more
Design: Mini-Hex Bleed Plug
Connection: 1/2" NPT Male
Features
  • 316 Stainless Steel Bleed Screw
  • Max Pressure 10000 psi @ +200°F (+93°C) / 1500 psi @ +1000°F (+538°C)
  • Stainless Steel Body
  • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • 100% Pressure Tested
A7-526-C0
1/2" MNPT, ASTM, A479-316 SS / 17-4 PH, Integral Metal Seat
1 In Stock

Specifications

Bleed Screw Material

  • ASTM A479-316 Stainless Steel

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Connection

  • 1/2" NPT Male

Pressure Rating

  • psi: 1,500 at 538° C (1,000° F)
  • psi: 10,000 at 93° C (200° F)
