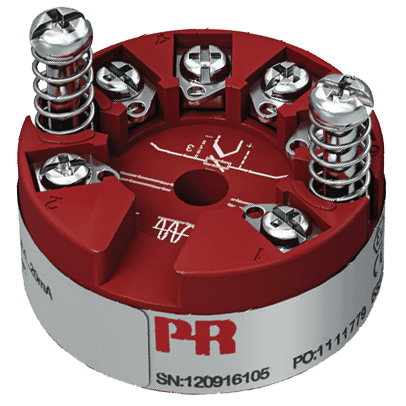

Images are representations only.

5331D 2-Wire Programmable Transmitter

Brand: PR Electronics
  • RTD, TC, Ohm, or mV input
  • Extremely high measurement accuracy
  • 1.5 kVAC galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5331D to measure temperatures within all ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
  • Continuous check of vital stored data for safety reasons.
show more
  • RTD, TC, Ohm, or mV input
  • Extremely high measurement accuracy
  • 1.5 kVAC galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting
Features
  • Within a few seconds the user can program PR5331D to measure temperatures within all ranges defined by the norms.
  • The RTD and resistance inputs have cable compensation for 2-, 3- and 4-wire connection.
  • Continuous check of vital stored data for safety reasons.

Specifications

Accuracy

  • ± 0.05 %

Approvals & Certifications

  • ATEX 2014/34/EU KEMA 06-ATEX-0062
  • CCOE P337392 / 2
  • CSA 1125003
  • DNV Marine Standard F. Certificate No. 2.4
  • EAC Ex TR-CU 012 / 2011 RU C-DK.GB08.V.00410
  • EAC TR CU 020/2011
  • EMC 2014/30/EU
  • FM 2D5A7
  • IECEx dEK 13.0035X
  • INMETRO DEKRA 13.0001 X

Environmental Protection

  • IP00
  • IP68

Humidity

  • < 95 % Relative Humidity, Non-Condensing

Load

  • ≤ (Vsupply-7.2) / 0.023 ohms

Output

  • 4-20 mA Signal Range

Response Time

  • 1 to 60 seconds Programmable

RTD Type

  • Linch R
  • Ni100
  • Pt100

Supply Voltage

  • 7.2-30 Vdc

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Vibration

  • ± 1.6 mm
  • ± 4 G

Typical Applications

  • Linearized temperature measurement with Pt100...Pt1000, Ni100...Ni1000, or TC sensor.
  • Conversion of linear resistance variation to a standard analog current signal, for instance from valves or Ohmic level sensors.
  • Amplification of a bipolar mV signal to a standard 4...20 mA current signal.
