Images are representations only.

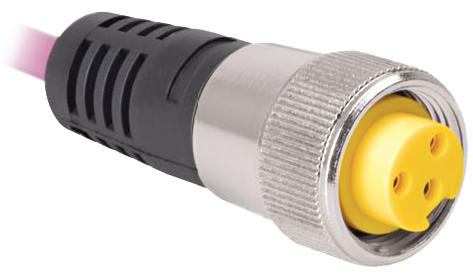

Discrete minifast Double Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
4 models matching criteria
P-RSV RKV 33-187-35M
TURCK minifast Drop Cordset, 3-Pin, Male/Female, PVC/Grey, 7/8"-16UN, SST, 35m, NCNR
2 - 8 weeks
P-RSV RKV 33-187-45M
TURCK minifast Drop Cordset, 3-Pin, Male/Female, PVC/Grey, 7/8"-16UN, SST, 45m, NCNR
2 - 8 weeks
P-RSV RKV 33-187-60M
TURCK minifast Cordset, 3-Pin, Male/Female, SST, PVC/Grey, 60m, CSA, NCNR View More
  • Process Cable:
    • Double Ended Discrete Cordset
  • Connectors:
    • "minifast" Series
    • Male x Female
    • 316 Stainless Steel Housing
    • 3 Contacts
  • Jacket:
    • Grey PVC
  • Conductors:
    • (3) #18 AWG
  • Length:
    • 60 Meters
  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC/PLTC/AWM, 105C, 300V
    • CSA: CMG/AWM, 105C, 300V
2 - 8 weeks
P-RSV RKV 33-187-70M
TURCK minifast Drop Cordset, 3-Pin, Male/Female, PVC/Grey, 7/8"-16UN, SST, 70m, NCNR
2 - 8 weeks

Specifications

Brand

Approvals & Certifications

  • CSA
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 3-Pin
  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -40° to 105° C (-40° to 221° F)

Version / Leadwires

  • 33-187: 3 x 18 AWG GN, BK, WH, ITC/PLTC PVC
  • 3-Wire
  • 442A-041: 4 x 18 AWG BK, WH, RD, GN, ITC/PLTC PVC Armor
  • 4-Wire
  • 5-Wire
  • 60-025: 5 x 16 AWG BU, BN, GN/YE, WH, BK ITC/PLTC PVC
