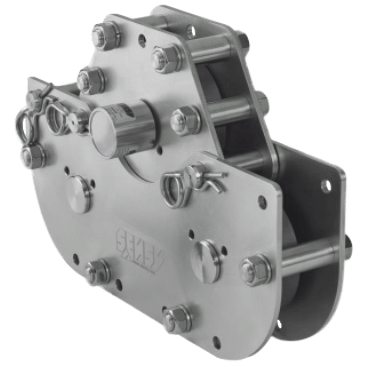

5580/5585 Running Line Tensiometer With Removable Center Sheave

Brand: Sensy S.A.
Load cell specially designed to measure the tension force applied to a running cable or a running rope. The removable center sheave allows easy installation without the need to cut the winch lines.
Features
  • Wide range of cables (Ø from 6 up to 115 mm)
  • Protection: IP 67
  • Material:
    • Load pin: stainless steel
    • Other elements: stainless steel (5580)
    • Other elements: nickel plated steel (5585)
  • Complete range of electronics and load limitation devices
  • Custom made manufacturing
  • Cable length: 6 m
  • Available options:
    • Load pin’s certification Ex 'i' (ATEX, IECEX, CSA)
    • Load pin’s explosion proof certification Ex 'd' (ATEX)
    • Amplified output (V or mA)
    • Protection IP 68 or special for marine environment
    • Sheaves of synthetic material
show more
Images are representations only.
Load cell specially designed to measure the tension force applied to a running cable or a running rope. The removable center sheave allows easy installation without the need to cut the winch lines.
Features
  • Wide range of cables (Ø from 6 up to 115 mm)
  • Protection: IP 67
  • Material:
    • Load pin: stainless steel
    • Other elements: stainless steel (5580)
    • Other elements: nickel plated steel (5585)
  • Complete range of electronics and load limitation devices
  • Custom made manufacturing
  • Cable length: 6 m
  • Available options:
    • Load pin’s certification Ex 'i' (ATEX, IECEX, CSA)
    • Load pin’s explosion proof certification Ex 'd' (ATEX)
    • Amplified output (V or mA)
    • Protection IP 68 or special for marine environment
    • Sheaves of synthetic material

5580/5585

Body Material

Specifications

Brand

Applications

  • Force Measurement of Winches
  • Load Limitation of Hoisting Devices, Cranes & Overhead Cranes (in Combination with Load Limitation Devices (CRANEBOY, BRIDGEBOY)
  • Tension Measurement of Towage & Haulage Cable

Approvals & Certifications

  • ATEX Ex I, Ex D
  • CE
  • CSA
  • IECEx

Cable Length

  • 19.69 feet (6 meters)

Capacity

  • 0.4 to 600 T

Enclosure, Body Material

  • Nickel-Plated Steel
  • Stainless Steel (5580)

Environmental Protection

  • IP67
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Load

  • Breaking Load: > 300% of Full Scale
  • Permissible Dynamic Loading: 70% of Full Scale

Load Limit

  • 200% of Full Scale

Resistance

  • Input/Output: 352 ± 2 ohms

Sensitivity

  • ± 1 mV/V

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Temperature Coefficient

  • <± 0.1% of Full Scale/10° C (18° F)
