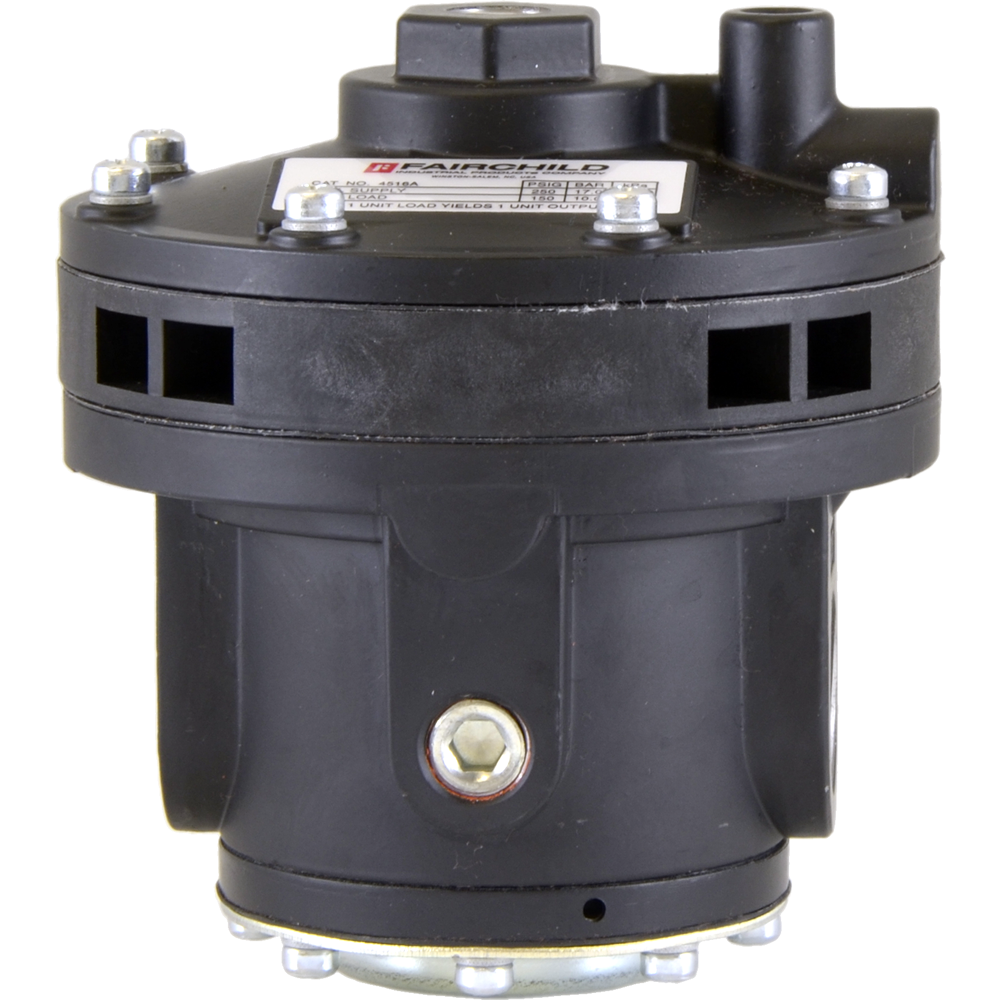

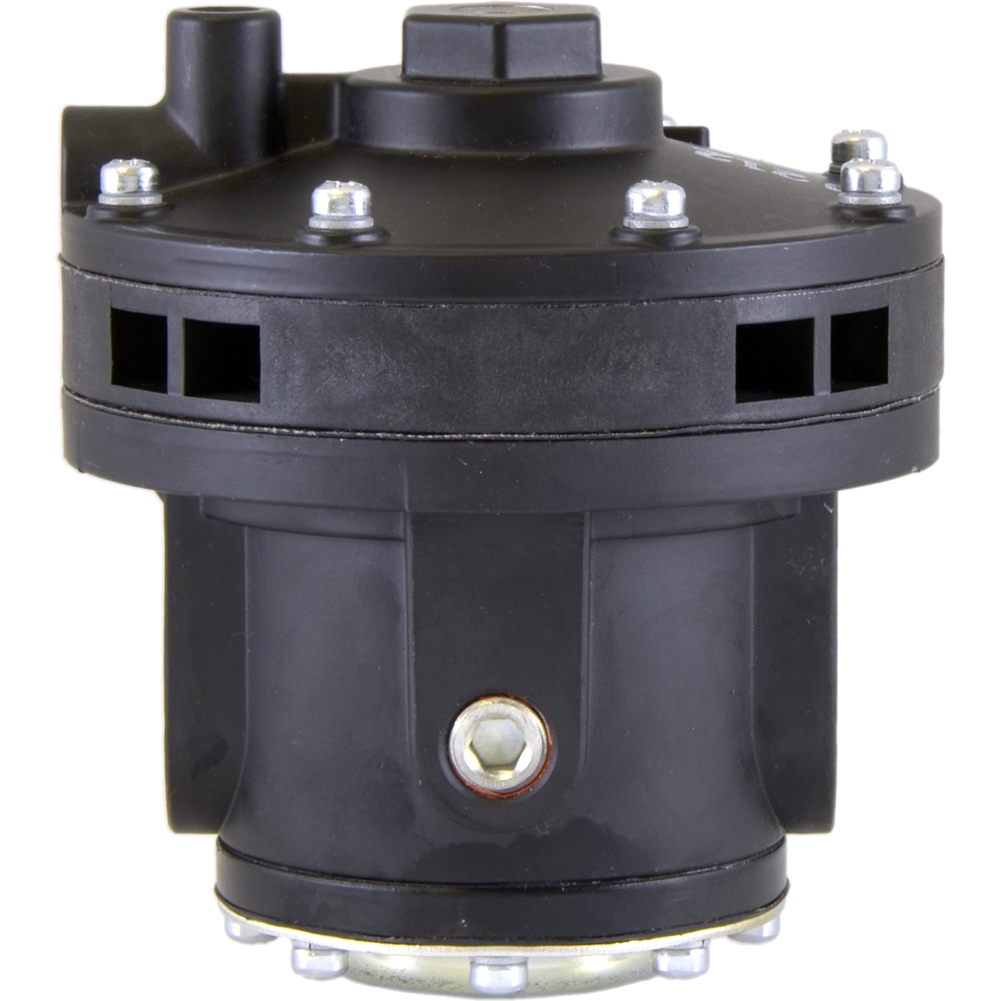

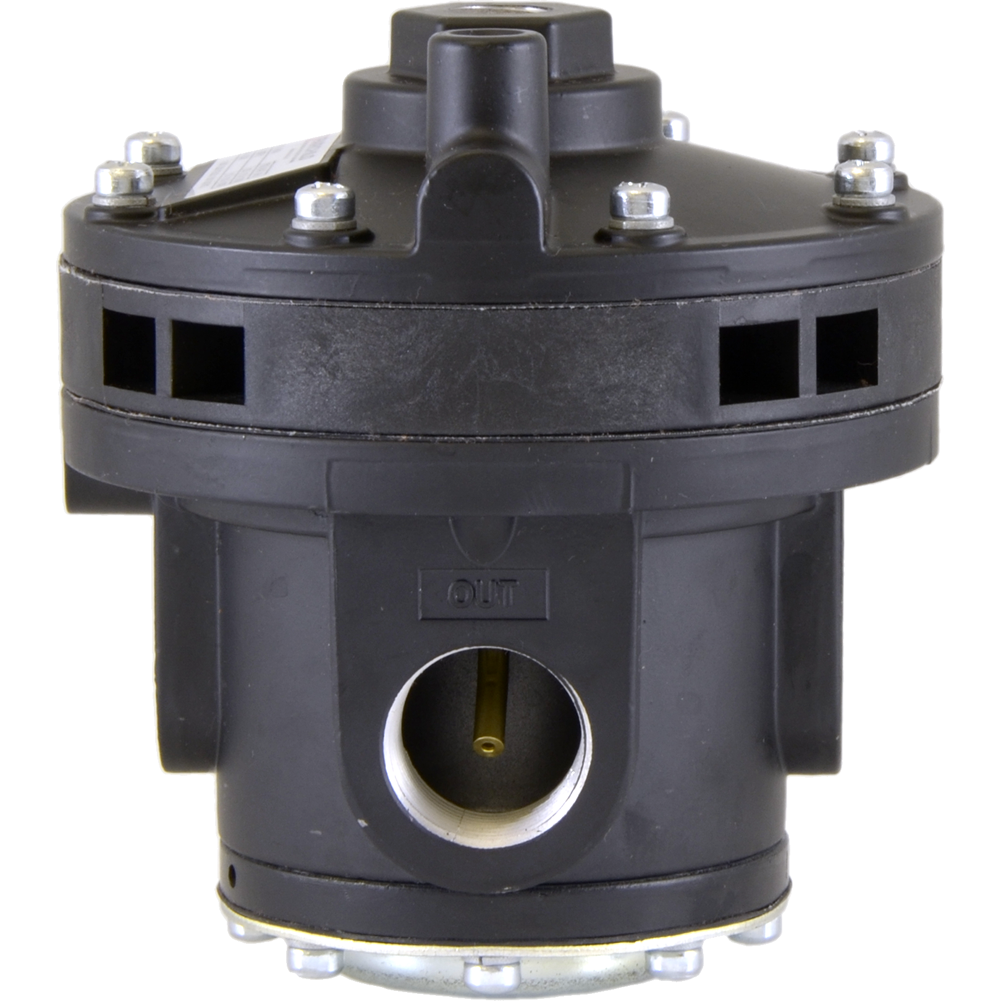

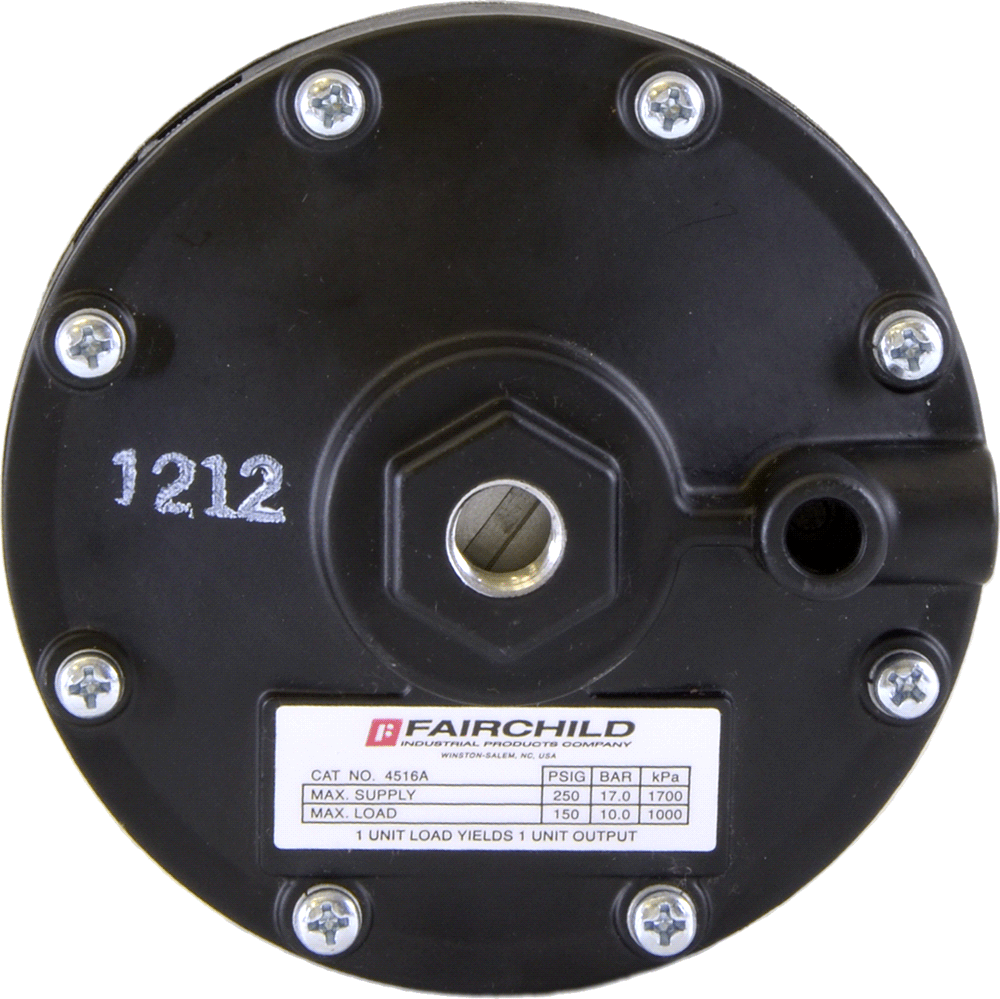

Model 4500A Pneumatic Volume Booster

Brand: Fairchild Industrial Products
Rotork Fairchild's Model 4500 Pneumatic Volume Boosters are popular due to their rugged design and high flow capacity in an economical package.

In its pilot operated regulator design, the M4500 handles up 250 psig (17.0 BAR, 1700 kPa) supply pressure and has five available signal to output ratios to meet most control element requirements.

The 4500 Booster provides a flow capacity of 150 SCFM (255 m3/HR), which equates to a Cv factor of approximately 3.0 in both forward and exhaust modes.
Features
  • Flow capacity of 150 SCFM (255 m3/HR).
  • Five signal to output ratios.
  • Control sensitivity of 1" water column.
  • Soft Supply and Exhaust Valve seats.
  • Separate Control Chamber.
  • Optional remote feedback port.
  • Optional Adjustable By-Pass Needle Valve (includes bubble tight exhaust valve)
  • Canadian Registration Number (CRN) certification
show more
Images are representations only.
Rotork Fairchild's Model 4500 Pneumatic Volume Boosters are popular due to their rugged design and high flow capacity in an economical package.

In its pilot operated regulator design, the M4500 handles up 250 psig (17.0 BAR, 1700 kPa) supply pressure and has five available signal to output ratios to meet most control element requirements.

The 4500 Booster provides a flow capacity of 150 SCFM (255 m3/HR), which equates to a Cv factor of approximately 3.0 in both forward and exhaust modes.
Features
  • Flow capacity of 150 SCFM (255 m3/HR).
  • Five signal to output ratios.
  • Control sensitivity of 1" water column.
  • Soft Supply and Exhaust Valve seats.
  • Separate Control Chamber.
  • Optional remote feedback port.
  • Optional Adjustable By-Pass Needle Valve (includes bubble tight exhaust valve)
  • Canadian Registration Number (CRN) certification
41 models matching criteria
4514AI
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 1/2" NPT, By-Pass Valve
5 In Stock
$884.00USD
$9.99 Shipping
19764-1
FAIRCHILD Bypass Valve 1:1 only for Model 4500A Pneumatic Volume Booster
1 - 2 weeks
$87.00USD
$9.99 Shipping
available on backorder
4513A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/8" NPT
8 - 12 days
$832.00USD
$9.99 Shipping
available on backorder
4516A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" NPT
2 - 4 weeks
$832.00USD
$9.99 Shipping
available on backorder
4516AU
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" BSPT (Tapered)
8 - 12 days
$832.00USD
$9.99 Shipping
available on backorder
4514AH
FAIRCHILD Model 4500A Pneumatic Volume Booster, BSPP, 1:1 Ratio
8 - 12 days
$832.00USD
$9.99 Shipping
available on backorder
4514A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 1/2" NPT
8 - 12 days
$847.00USD
$9.99 Shipping
available on backorder
4513AI
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/8" NPT, By-Pass Valve
8 - 12 days
$884.00USD
$9.99 Shipping
available on backorder
4516AI
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" NPT, By-Pass Valve
8 - 12 days
$884.00USD
$9.99 Shipping
available on backorder
4523A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:2 Ratio, 3/8" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4526A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:2 Ratio, 3/4" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4533A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:3 Ratio, 3/8" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4534A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:3 Ratio, 1/2" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4536A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:3 Ratio, 3/4" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4544A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 2:1 Ratio, 1/2" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
4554A
FAIRCHILD Model 4500A Pneumatic Volume Booster, 3:1 Ratio, 1/2" NPT
8 - 12 days
$894.00USD
$9.99 Shipping
available on backorder
Z19586-4516AU
FAIRCHILD Model 4500A Pneumatic Volume Booster, Customer Special
6 - 8 weeks
$963.00USD
$9.99 Shipping
available on backorder
4514AS
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 1/2" NPT, Stainless Steel Trim
2 - 4 weeks
$999.00USD
$9.99 Shipping
available on backorder
4514AJ
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 1/2" NPT, Fluorocarbon (Viton) Elastomers
8 - 12 days
$1,001.00USD
$9.99 Shipping
available on backorder
4514AIS
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 1/2" NPT, By-Pass Valve, Stainless Steel Trim
8 - 12 days
$1,050.00USD
$9.99 Shipping
available on backorder
4524AJ
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1/2" NPT, 1:2 Ratio, Viton Elastomers
5 - 6 weeks
$1,063.00USD
$9.99 Shipping
available on backorder
4513AE
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/8" NPT, Tapped Exhaust
8 - 12 days
$1,064.00USD
$9.99 Shipping
available on backorder
4516AE
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" NPT, Tapped Exhaust
8 - 12 days
$1,064.00USD
$9.99 Shipping
available on backorder
4516AEH
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" BSPP (Parallel), Tapped Exhaust
8 - 12 days
$1,064.00USD
$9.99 Shipping
available on backorder
4516AEU
FAIRCHILD Model 4500A Pneumatic Volume Booster, 1:1 Ratio, 3/4" BSPT (Tapered), Tapped Exhaust
8 - 12 days
$1,064.00USD
$9.99 Shipping
available on backorder

Model 4500A

Port Size

Port Thread

Elastomers

Exhaust Port

Increased Adjustability

Feedback Option

Trim

Specifications

Actuator Type

  • Bypass Valve

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 3/4" BSPP Female
  • 3/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • FluoroCarbon (Viton)
  • Nitrile on Dacron

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 40 scfm
  • 40 SCGM (65.2 m³/hour) Where Downstream Pressure is psig: 5 (bar: 0.35, kPa: 35) Above psig: 20 (bar: 1.5, kPa: 150) Set Point.
  • 65.2 m³/hour

Flow Capacity

  • 150 scfm (255 m³/hour)
  • 150 scfm (255 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 255 m³/hour

NPT Connection

  • 1/2" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Output Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • psig: 150

Ratio

  • 0.042361111111
  • 0.043055555556
  • 0.04375
  • 0.084027777778
  • 0.12569444444

Relief

  • Relieving

Set Point - Decreasing

  • Inches WC: 1.0 to 3.0

Set Point - Increasing

  • Inches WC: 1.0 to 3.0

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • bar: 0.007 to 0.021
  • kPa: 0.7 to 2.1
  • psig: 0.1 to 0.3

Trim Material

  • 316 Stainless Steel
  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust
