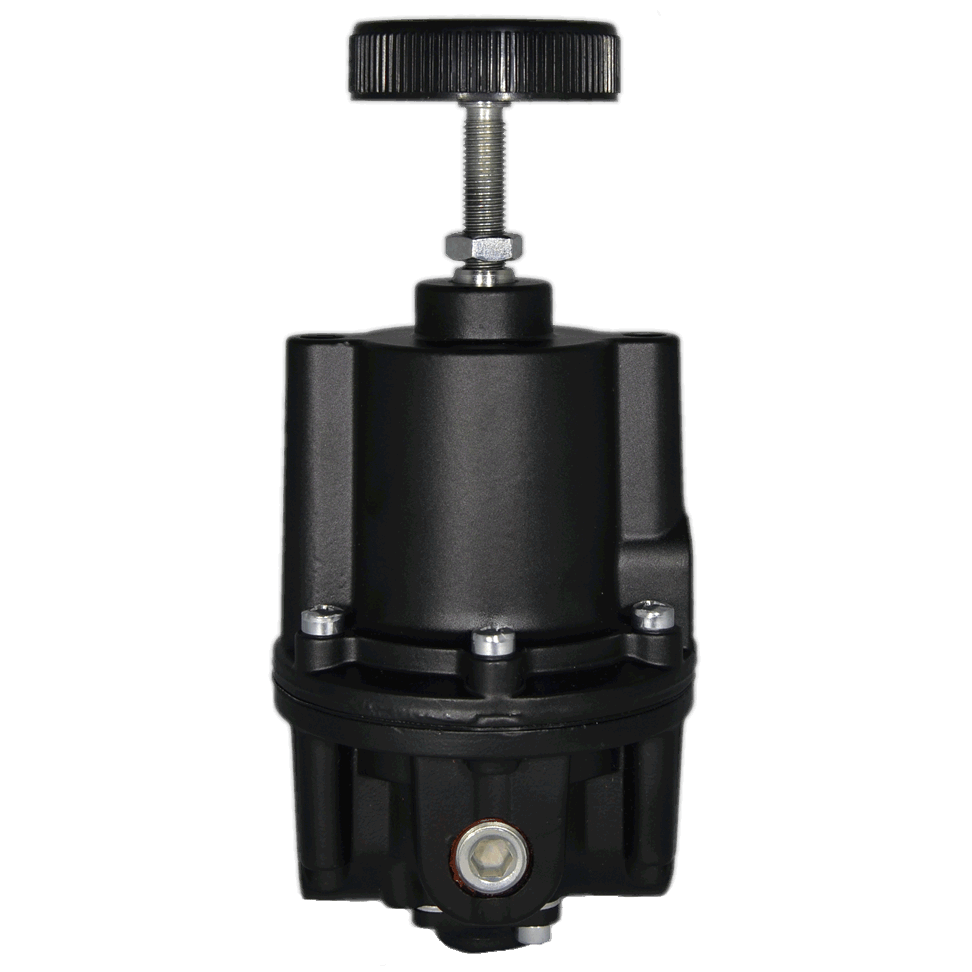

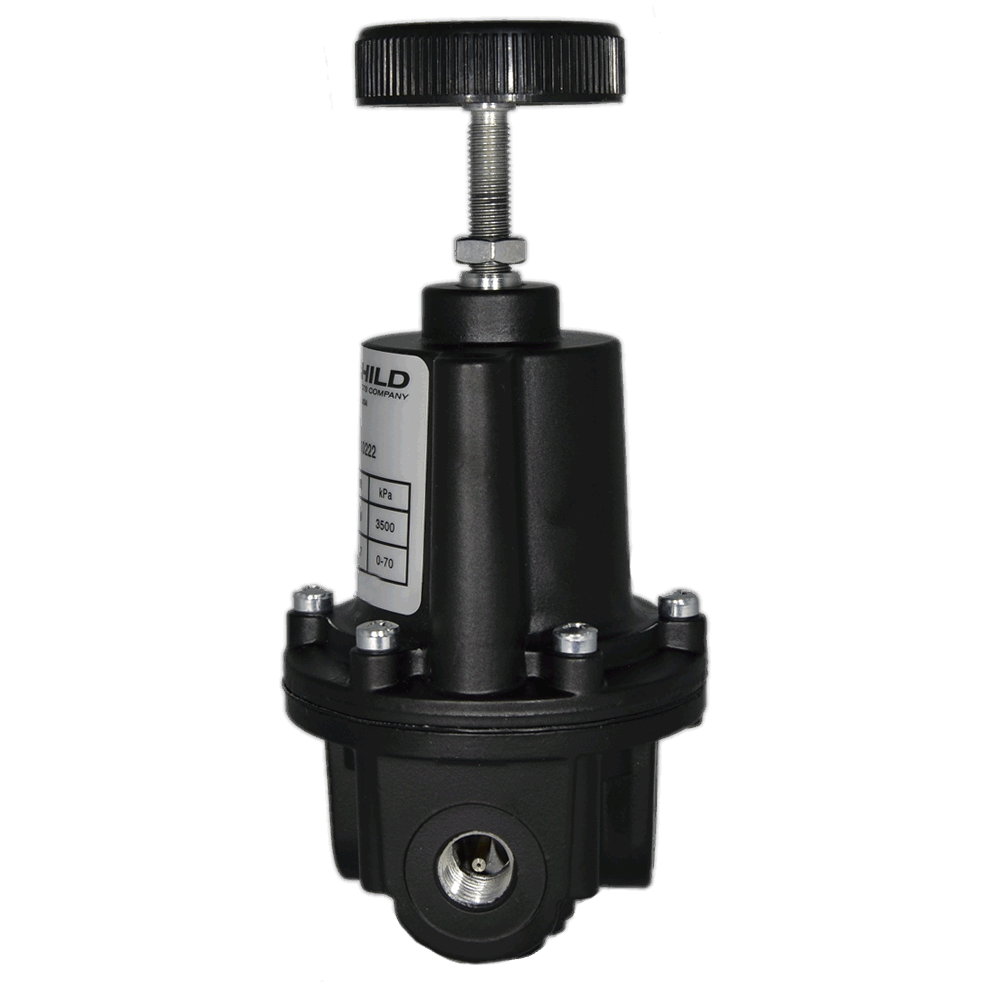

Model 10BP Precision Back Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.

The Model 10BP features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 10BP pneumatic regulator is a high capacity regulator that provides greater accuracy than relief valves over a narrow pressure range, making it an excellent choice for a wide range of precision applications.

The Fairchild Model 10BP will handle a 500 psi, 34 BAR, maximum system pressure and offers nine (9) setpoint pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Fairchild Model 10BP back pressure regulator offers 40 SCFM, 68 m3/hr flow capacity.
Features
  • Control sensitivity of 1/8" water column
  • High Flow Capacity
  • Separate Control Chamber
  • Aspirator Tube isolate the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
show more
The Rotork Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.

The Model 10BP features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 10BP pneumatic regulator is a high capacity regulator that provides greater accuracy than relief valves over a narrow pressure range, making it an excellent choice for a wide range of precision applications.

The Fairchild Model 10BP will handle a 500 psi, 34 BAR, maximum system pressure and offers nine (9) setpoint pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Fairchild Model 10BP back pressure regulator offers 40 SCFM, 68 m3/hr flow capacity.
Features
  • Control sensitivity of 1/8" water column
  • High Flow Capacity
  • Separate Control Chamber
  • Aspirator Tube isolate the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
30 models matching criteria
10262BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers
8 In Stock
$384.90USD
$7.96 Shipping
10232BHP
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, Low Bleed, 1/4" BSPP (Parallel), Panel Mount
1 In Stock
$244.65USD
$7.96 Shipping
10273B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 3-200 psig, 20-1400 kPa, 3/8" NPT, Low Bleed
8 - 12 days
$260.59USD
$7.96 Shipping
10202BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10212BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10222BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10232BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10242BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10262BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT
8 - 12 days
$291.66USD
$7.96 Shipping
10263BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT
8 - 12 days
$291.66USD
$7.96 Shipping

Specifications

Actuator Type

  • Knob Adjust
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • FluoroCarbon (Viton)
  • Nitrile on Dacron
  • Silicone

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Flow Capacity

  • 40 scfm
  • 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 68 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • None

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • None

Pressure Range

  • bar: 0 to 1.36
  • bar: 0 to 28
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • bar: 0.204 to 13.60
  • bar: 0.34 to 27.20
  • kPa: 0 to 137
  • kPa: 0 to 2,800
  • kPa: 13.6 to 1,020
  • kPa: 20.4 to 1,360
  • kPa: 3.4 to 204
  • kPa: 34 to 2,720
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0 to 20
  • psig: 0 to 400
  • psig: 1 to 60
  • psig: 2 to 150
  • psig: 3 to 200
  • psig: 5 to 400

Relief

  • Relieving

Sensitivity

  • < 1/8" WC (0.32 cm)

Supply Pressure - Maximum

  • bar: 35
  • kPa: 3,500
  • psig: 500

Supply Pressure Effect

  • less than 0.007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.7)
  • less than psig: 0.1 (bar: 0.007, kPa: 0.7)
  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
