YT-1000R Rotary Electro-Pneumatic Positioner

Brand: Young Tech Co., Ltd
Request a Quote
Favorite
The YT-1000R Electro-Pneumatic Positioner is used for operation of pneumatic rotary valve actuators by means of an electrical controller or control system with an Analog output signal of DC 4 to 20mA or split ranges.
Features
  • Designed for high durability and performance in high vibration environment.
  • Durability has proven after testing of 1 million times minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct/Reverse action can be set easily.
  • Zero & Span adjustment process is simply.
  • Feedback Connection is easy.
show more

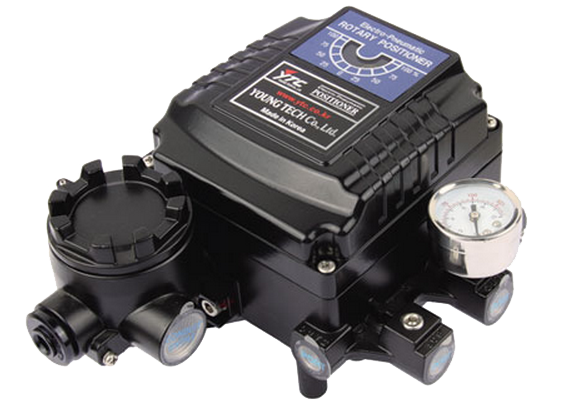

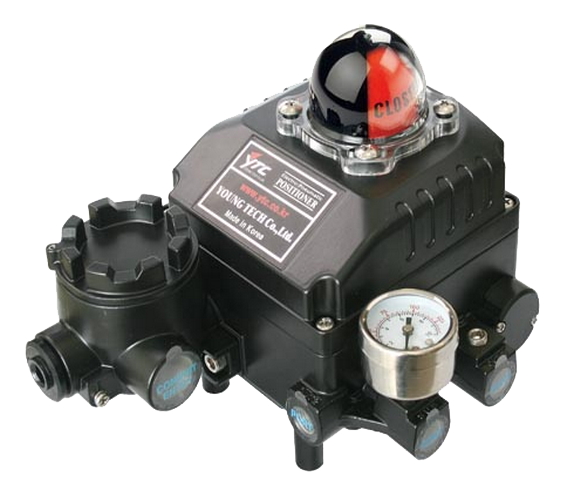

main_YT-1000R_Top.png 002_YT-1000R_Dome.png
main_YT-1000R_Top.png 002_YT-1000R_Dome.png
Images are representations only.
The YT-1000R Electro-Pneumatic Positioner is used for operation of pneumatic rotary valve actuators by means of an electrical controller or control system with an Analog output signal of DC 4 to 20mA or split ranges.
Features
  • Designed for high durability and performance in high vibration environment.
  • Durability has proven after testing of 1 million times minimum.
  • Response time is very short and accurate.
  • Simple part change can set 1/2 Split Range.
  • It is economical due to less air-consumption.
  • Direct/Reverse action can be set easily.
  • Zero & Span adjustment process is simply.
  • Feedback Connection is easy.
Close

Displaying prices & availability for None, United States in USD. Change location or currency.

YT-1000RDm532S00
Acting Type - Double, Explosion-Proof - Ex dmb IIB T5 (KTL), Lever Type - NAMUR, Orifice Size - None, Connection - NPT, Temperature Range - Standard Temperature: -20° to 60° C (-4° to 140° F), Cover - No Cover, Options - No Additional Options
Out of Stock
$667.26USD
$9.99 Shipping
Close

YT-1000R

Acting Type

Explosion-Proof

Lever Type

Orifice Size

Connection

Temperature Range

Cover

Options

  • view details
View Details

YT-1000R

Out of Stock
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F)

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • FM
  • KC
  • NEPSI

Conduit Connection

  • PF 1/2 (G 1/2")

Enclosure, Body Material

  • Die Cast Aluminum

Environmental Protection

  • IP66

Flow Capacity

  • 80 LPM

Hysteresis

  • ± 1% of Full Scale

Independent Linearity

  • ± 1% of Full Scale
  • ± 2% of Full Scale

Input Signal

  • 4-20 mA DC

Orifice Size

  • Phi 1
  • Phi 2

Repeatability

  • ± 0.5% of Full Scale

Supply Pressure

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 20.3 to 101.5
