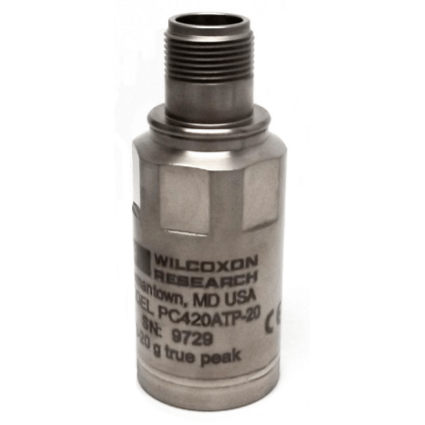

Model PC420ATP Series True Peak Acceleration Loop Powered Sensor

Brand: Wilcoxon Sensing Technologies
Wilcoxon’s PC420ATP series 4-20 mA vibration sensors provide 24/7 output of true peak acceleration for trending in PLC systems, alerting users to changing machine conditions and helping to guide maintenance in prioritizing the need for service. True peak is useful for detecting loose valves, rod knock and piston slap on reciprocating machinery. The 4-20 mA output of the PC420ATP series is proportional to true peak acceleration vibration. An output of 4 mA indicates a level of 0 g or no vibration present. A full-scale reading of 20 mA indicates that the maximum range of vibration is present.
Features
  • True peak output
  • Corrosion resistant
  • Hermetically sealed
  • ESD protection
  • Overload protection
  • Reverse wiring protection
show more
Images are representations only.
Wilcoxon’s PC420ATP series 4-20 mA vibration sensors provide 24/7 output of true peak acceleration for trending in PLC systems, alerting users to changing machine conditions and helping to guide maintenance in prioritizing the need for service. True peak is useful for detecting loose valves, rod knock and piston slap on reciprocating machinery. The 4-20 mA output of the PC420ATP series is proportional to true peak acceleration vibration. An output of 4 mA indicates a level of 0 g or no vibration present. A full-scale reading of 20 mA indicates that the maximum range of vibration is present.
Features
  • True peak output
  • Corrosion resistant
  • Hermetically sealed
  • ESD protection
  • Overload protection
  • Reverse wiring protection

Model PC420ATP Series

4-20 mA Full Scale

Specifications

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Overload Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cable (J9T2A)
  • Mating Connector: R6 Typical
  • Output Connector: 2-Pin, MIL-C-5015 Style

Element

  • Sensing Element Design: PZT, Shear

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • Corrosion-Proof

Frequency

  • Frequency Response (± 10%): 10 Hz to 1 kHz
  • Frequency Response (± 3 dB): 4 Hz to 2 kHz

Loop Resistance

  • 100 to 1,000 ohms, Maximum
  • Loop Resistance at 24 Vdc, Maximum

Mounting

  • 1/4-28 Tapped Hole

Output

  • 4-20 mA

Power

  • Minimum Wattage Capability: 0.125 to 0.5 W at 12-30 Vdc Supply

Power Requirement

  • 2-Wire Loop Power (Voltage at Sensor Terminals): 12-30 Vdc

Repeatability

  • ± 2%

Seal Type

  • Hermetic

Sensitivity

  • Transverse Sensitivity, Maximum

Shock

  • Shock Limit: 2,500 G Peak

Temperature Range

  • -40° to 85° C (-40° to 185° F)

Turn-On Time

  • 4-20 mA Loop: < 30 seconds

Vibration

  • Vibration Limit: 250 G Peak
