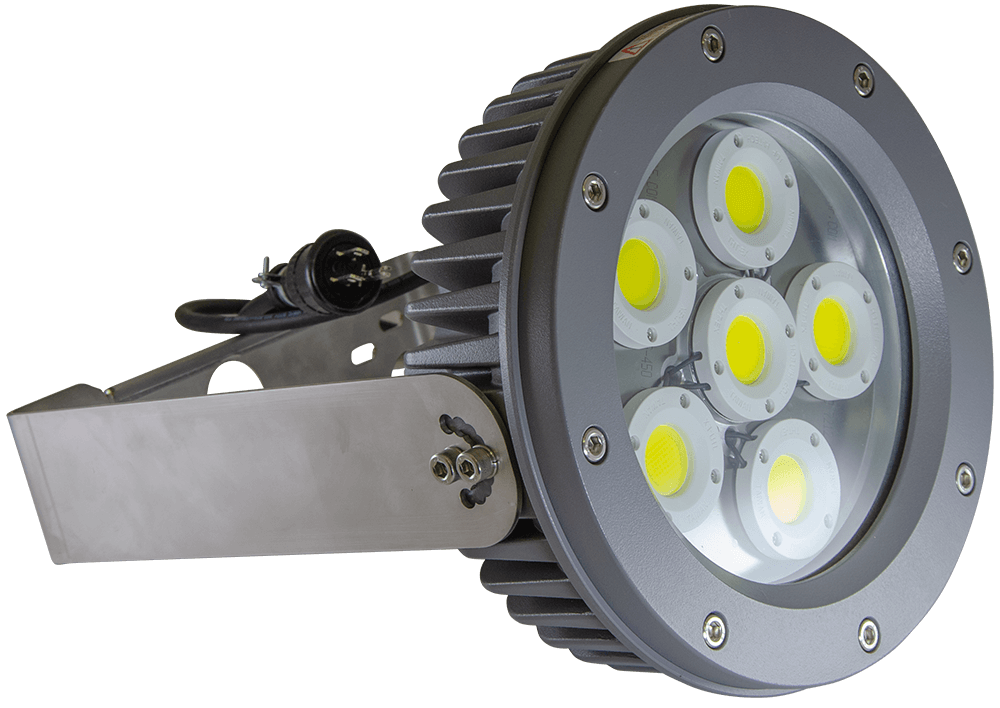

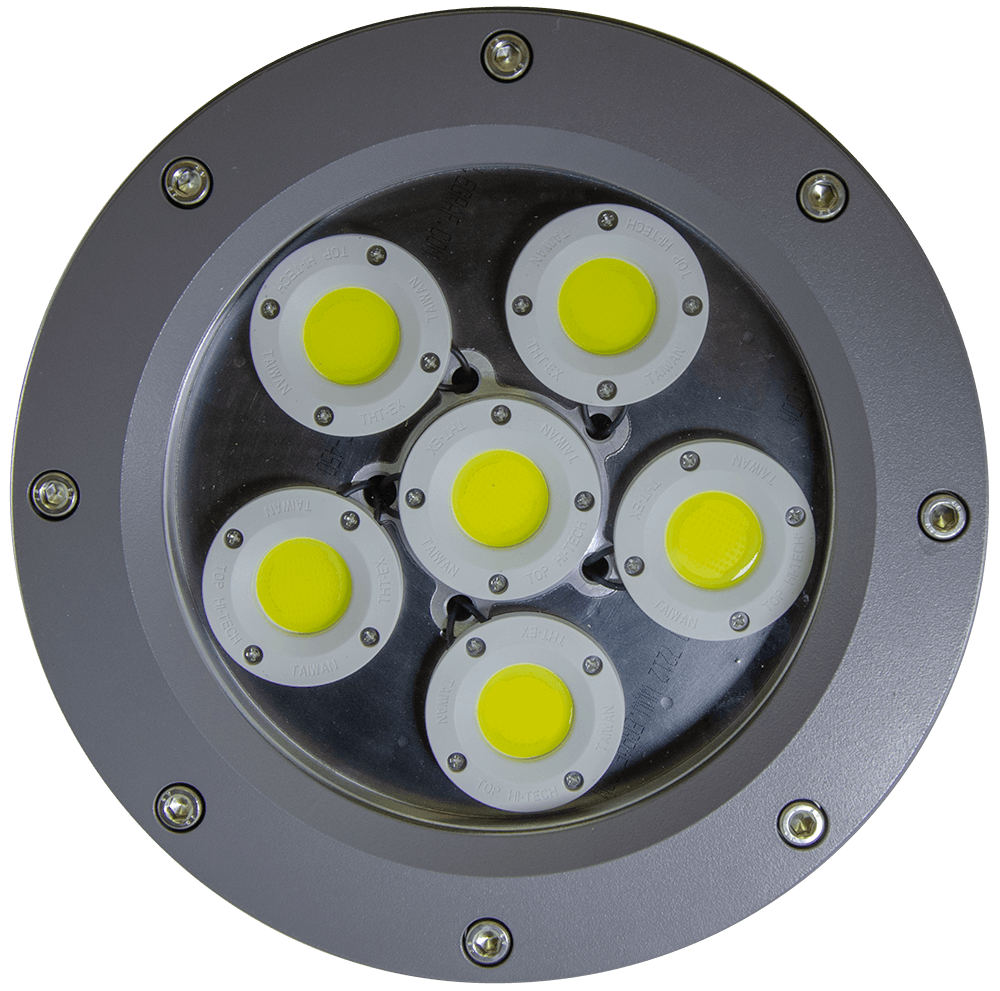

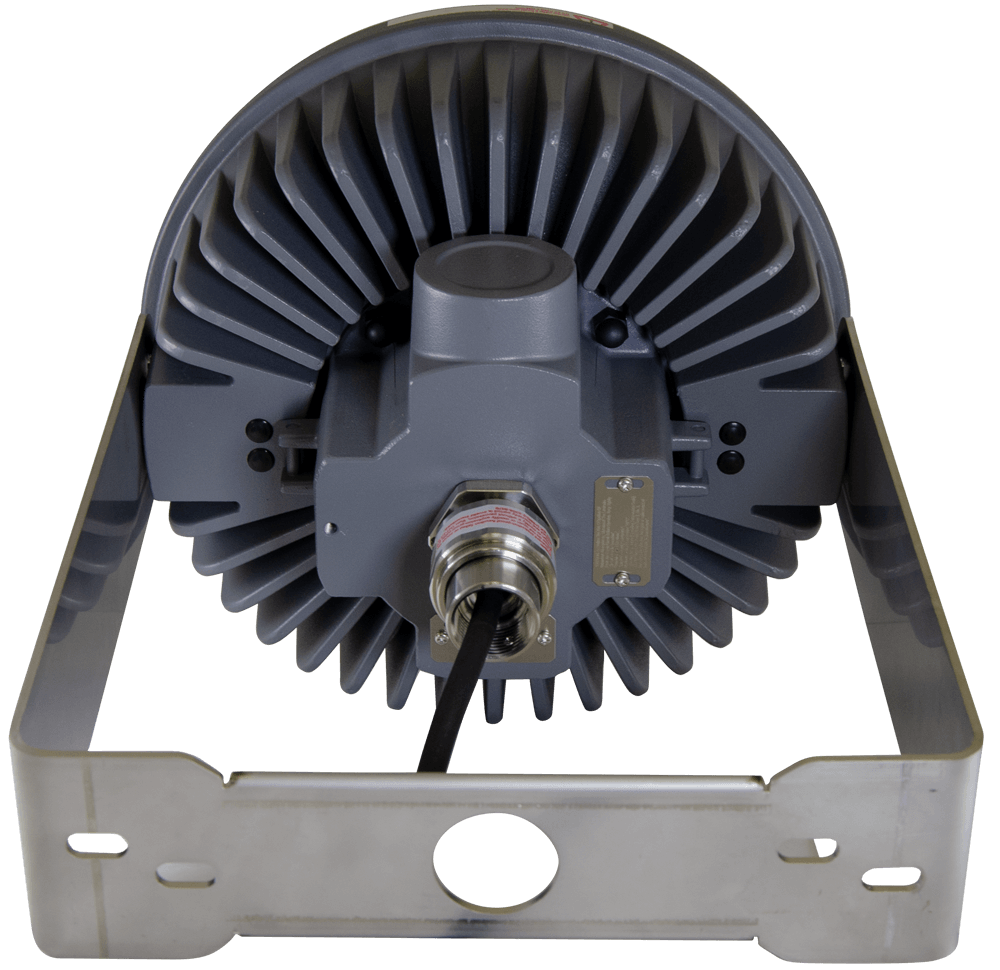

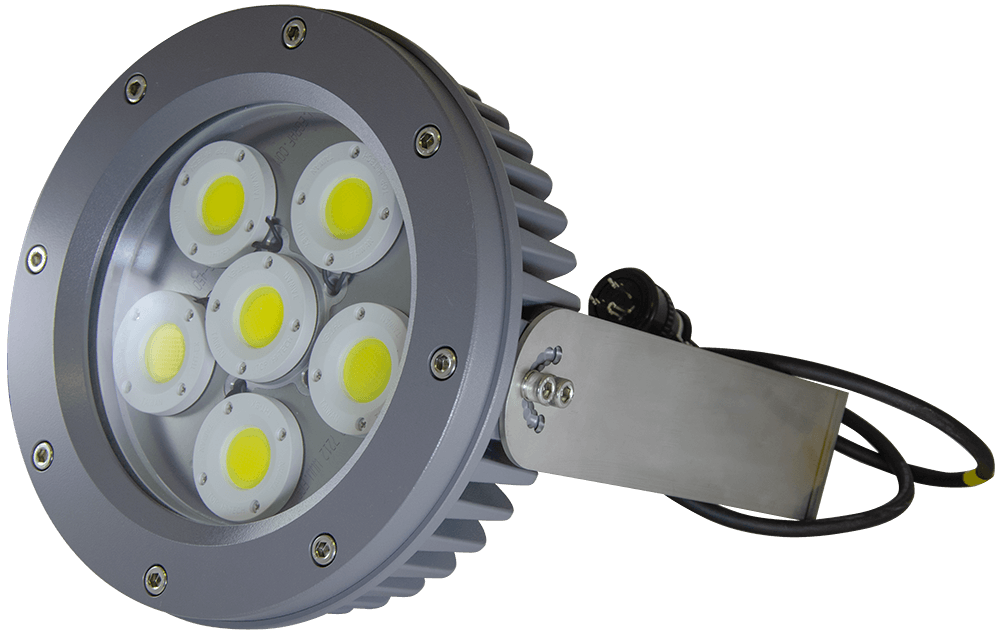

L1217 (COB) Explosion-Proof High Bay Light

Brand: Top Hi-Tech Inc.
Specification:
  • Volt.: 24 V / 100 V / 110 V / 120 V / 200 V / 208 V / 220 V / 277 V / 480 V AC
  • Watt.: 110 W / 120 W / 140 W
  • Amps: 110 W (0.23 ~ 4.58 A) / 120 W (0.25 ~ 5 A) / 140 W (0.29 ~ 5.83 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9, cos ≧ 0.87(480 V)
Ambient Temperature:
  • -20° C ~ +40° C, 24 V only: T6, W.W. / C.W(60 Hz): T5, C.W.(50 Hz): T4
  • CID2: -20° C ~ +40° C, T3C/ CIID2: +40° C, T6 (UL Certification)
Degree of Protection - IP68 / NEMA 6P

IECEx Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tb IIIC T105˚C Db
 ATEX Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 UL Certification
  • Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
 CML Certification
  • Ex d IIB + H2 T6/T5/T4 Gb
  • Ex tb IIIC T105˚C Db
 ABS & CR Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 TS Certification
  • Ex d IIB + H2 T5…T4 Gb
  • Ex tb IIIC T120˚C Db
 GB Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tD A21 T105˚C
Features
  • Higher wattage better lumen
  • Heat Resistance up to 100°C
  • IP68 rated for wet location
 Applicable Location
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III
show more
Images are representations only.
Specification:
  • Volt.: 24 V / 100 V / 110 V / 120 V / 200 V / 208 V / 220 V / 277 V / 480 V AC
  • Watt.: 110 W / 120 W / 140 W
  • Amps: 110 W (0.23 ~ 4.58 A) / 120 W (0.25 ~ 5 A) / 140 W (0.29 ~ 5.83 A)
  • Frequency: 50 Hz / 60 Hz
  • Power Factor: cos ≧ 0.9, cos ≧ 0.87(480 V)
Ambient Temperature:
  • -20° C ~ +40° C, 24 V only: T6, W.W. / C.W(60 Hz): T5, C.W.(50 Hz): T4
  • CID2: -20° C ~ +40° C, T3C/ CIID2: +40° C, T6 (UL Certification)
Degree of Protection - IP68 / NEMA 6P

IECEx Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tb IIIC T105˚C Db
 ATEX Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 UL Certification
  • Class I, Division 2 (Groups A, B, C and D) / Class II, Division 2 (Group F and G) / Class III
  • UL1598
 CML Certification
  • Ex d IIB + H2 T6/T5/T4 Gb
  • Ex tb IIIC T105˚C Db
 ABS & CR Certification
  • II 2 G Ex d IIB + H2 T6…T4 Gb
  • II 2 D Ex tb IIIC T105˚C Db
 TS Certification
  • Ex d IIB + H2 T5…T4 Gb
  • Ex tb IIIC T120˚C Db
 GB Certification
  • Ex d IIB + H2 T6…T4 Gb
  • Ex tD A21 T105˚C
Features
  • Higher wattage better lumen
  • Heat Resistance up to 100°C
  • IP68 rated for wet location
 Applicable Location
  • Zone 1 & Zone 2
  • Zone 21 & Zone 22
  • Class I, Division 2 (Groups A, B, C and D)
  • Class II, Division 2 (Group F and G)
  • Class III
THT-E-1217-E-B-K-C-6-P0-WHT
TOP HI-TECH Explosion Proof L1217E Series, SMD LED, 120V, Short Top Cover, Cool White, 2 Position
1 In Stock
$2,388.64USD
$8.22 Shipping
THT2LA120Z56C1217WHT
TOP HI-TECH Hazardous Area L1217 Series, SMD LED, 120V, Cool White, 160° C, Class I, Div. 2
4 - 6 weeks
$967.63USD
$8.22 Shipping
