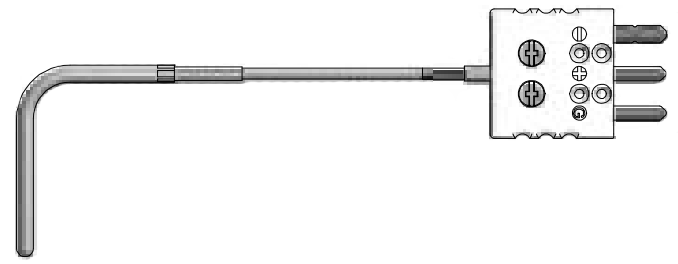

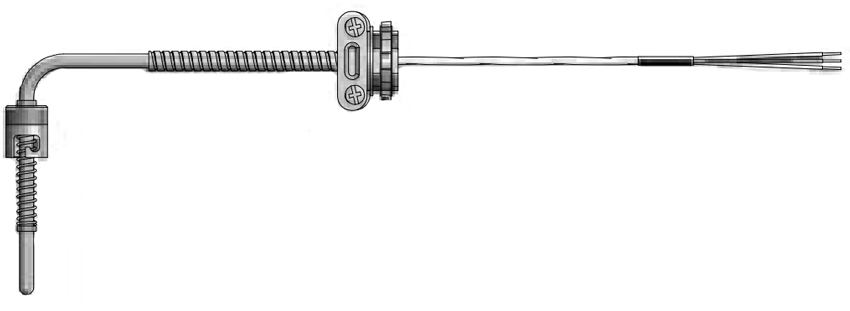

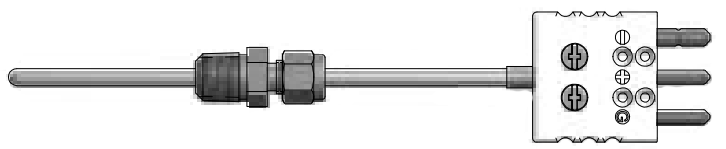

Images are representations only.

General-Purpose Plastic Industry RTD

Brand: Pyromation
The RTDs described below are those most commonly used in the plastic process industry. These assemblies can be used in many general applications where a 1/8" NPT fitting is preferred by utilizing either a compression fitting or a bayonet adapter.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85 ºC-1 (IEC Class B).
show more
The RTDs described below are those most commonly used in the plastic process industry. These assemblies can be used in many general applications where a 1/8" NPT fitting is preferred by utilizing either a compression fitting or a bayonet adapter.

These assemblies are supplied standard using 316 stainless steel sheath material and a 100 Ω platinum element with a temperature coefficient of 0.003 85 ºC-1 (IEC Class B).

Specifications

Brand

Process Connection

  • 1/8" NPT fitting

Sheath Material

  • 316 stainless steel

RTD Element

  • Platinum

Element Connection

  • 2-wire
  • 3-wire

Sheath Diameter

  • 1/8", 3/16", 1/4"

Sheath Fitting

  • 7/16" I.D. single slot spring loaded bayonet ftg
  • 1/8" NPT brass or SS one time adjustable comp. ftg 1
