M-575 Five-Valve Manifold

Brand: PGI International
  • Design: Soft Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Acetal Resin (Delrin) Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Easy access to both high and low side test / pressure ports
    • Back oriented vent port for safety
show more

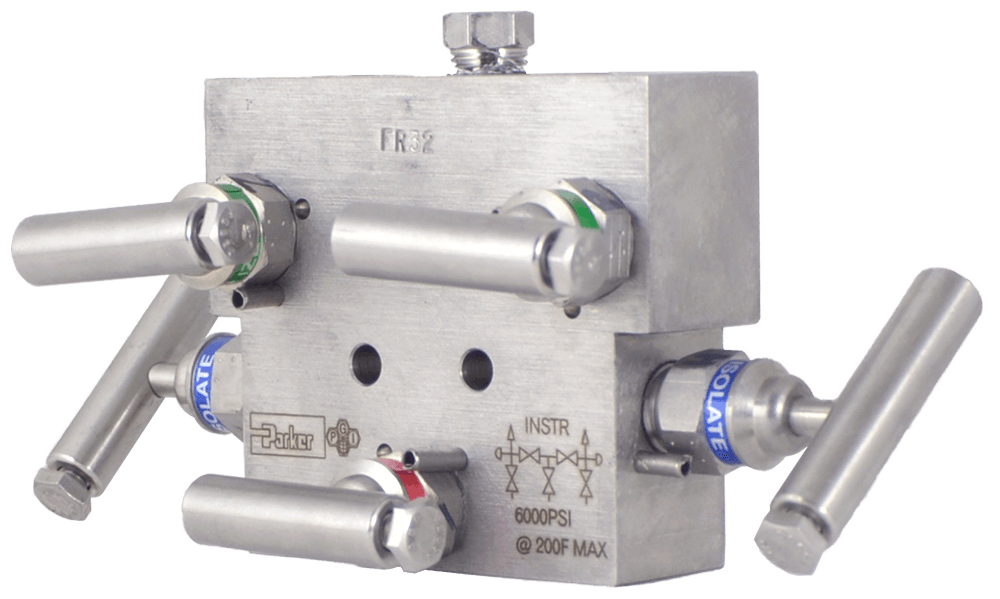

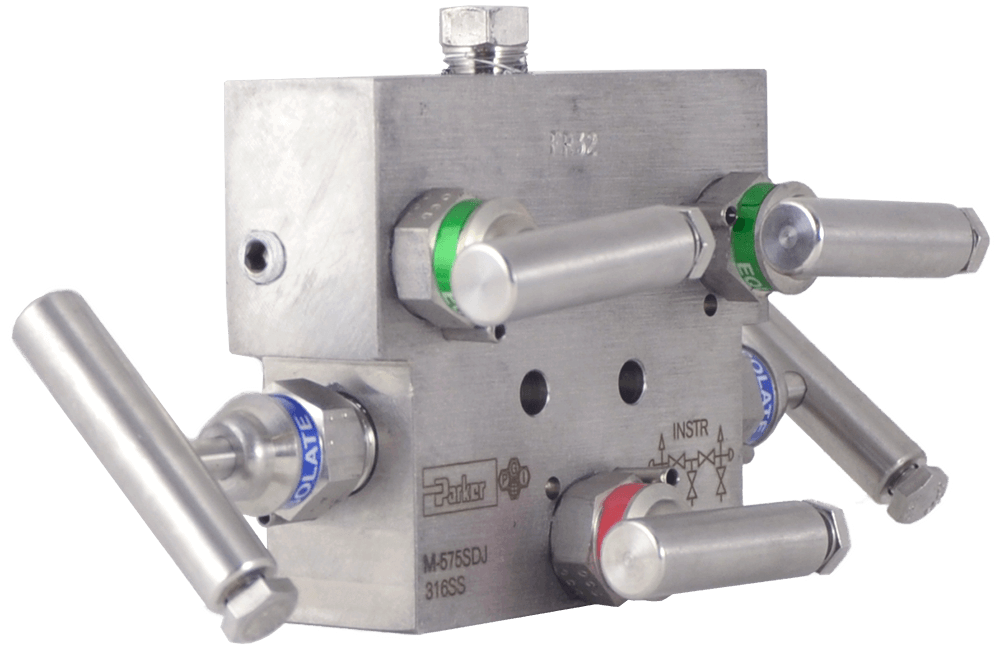

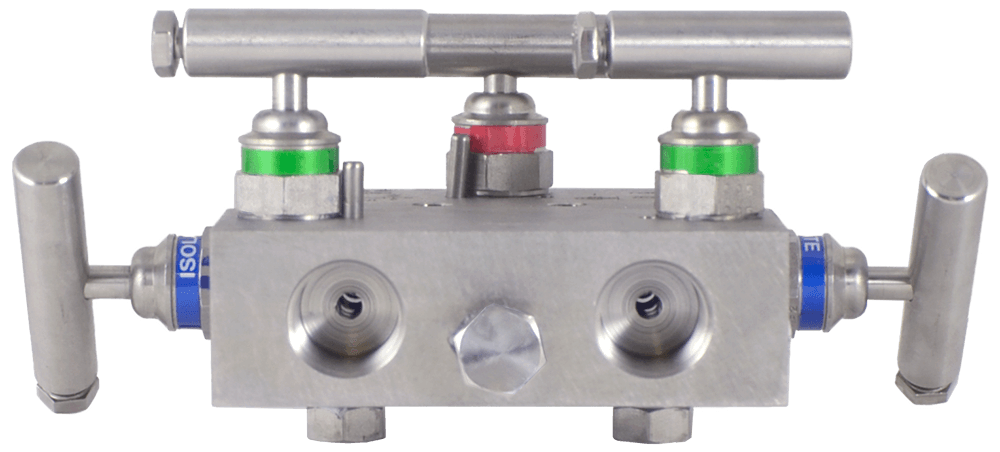

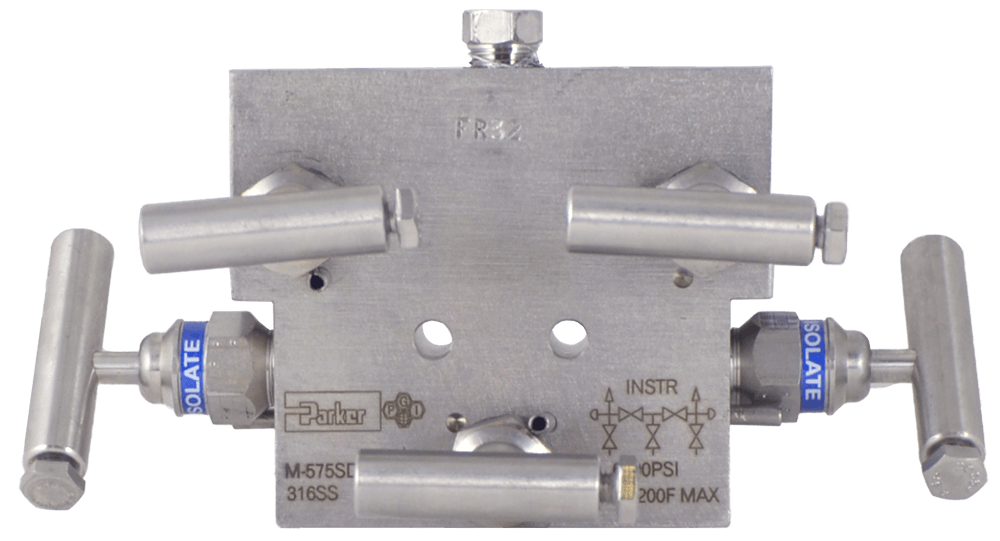

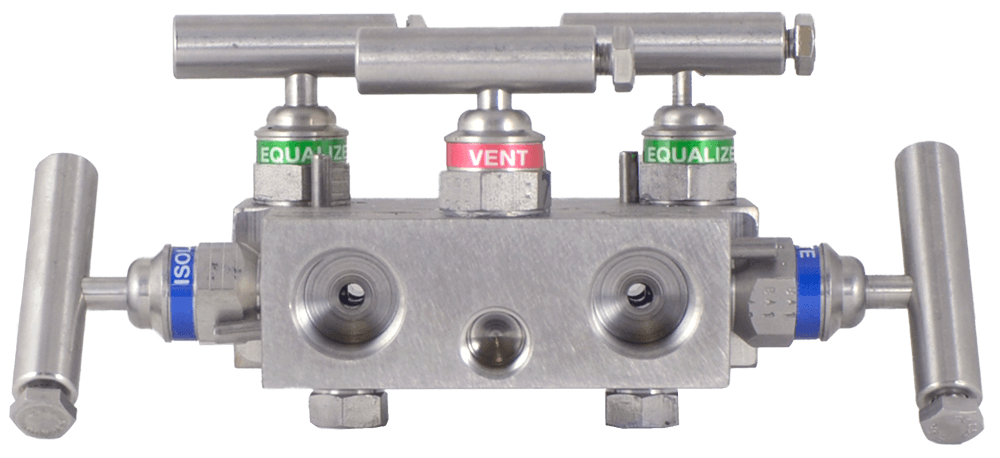

Images are representations only.
  • Design: Soft Seat Five-Valve Wide Pattern Manifold
  • Inlet Connection: 1/2" NPT Female
  • Outlet Connection: 1/2" NPT Female
  • Test Ports: 1/4" NPT
  • Standard Features:
    • Acetal Resin (Delrin) Ball Seat
    • Teflon Pressure-Core Stem Seal for Low Temperatures
    • Max Pressure 6000 psi @ +200°F (+93°C)
    • Stainless Steel Body and Bonnet
      • 316 Stainless Steel meets the requirements of NACE MR0175/ISO 15156-36
  • Benefits:
    • Unique configuration for "no finger pinching" operation of all five valves
    • Easy access to both high and low side test / pressure ports
    • Back oriented vent port for safety
4 models matching criteria
M-575-CDT
PGI 5-Valve Manifold, 1/2" x 1/2
2 - 4 weeks
$359.00USD
$9.99 Shipping
available on backorder
MD810-S6P
PGI 5-Valve Manifold, 1/2"FNPT x Flange, SST, NACE
2 - 4 weeks
$567.00USD
$9.99 Shipping
available on backorder
M-575-SDJ
PGI 5-Valve Manifold, 1/2" x 1/2", NACE
2 - 4 weeks
$643.00USD
$9.99 Shipping
available on backorder
MD812-S-6-T-W9
PGI 5-Valve Manifold, 1/2"FNPT x Flange, 316 SST Body & Ball Teflon & Standard Length Flange Bolts
6 - 7 weeks
$1,362.00USD
$9.99 Shipping
available on backorder

M-575

Inlet (Process) Connection Size

Outlet (Instrument) Connection Size

Body and Bonnet Material

Seat Material

Stem Packing Material

Specifications

Enclosure, Body Material

  • ASTM A479-316 Stainless Steel

Handle Assembly Material

  • ASTM A581 18-8 300 Stainless Steel

Maximum Cv Ratings

  • Cv 0.53 on 0.187" Orifice

NACE & NIST

  • NACE MR-0175, ISO 15156-36

NPT Inlet

  • 1/2" NPT Female

NPT Outlet

  • 1/2" NPT Female

Orifice Size

  • 0.187"

Packing Material

  • Teflon
  • Teflon Pressure-Core® Stem Seal for Low Temperatures -45.5° C (-50° F)

Pressure Rating

  • psi: 10,000 at 93° C (200° F)
  • psi: 8,000 at 232° C (450° F)

Process Temperature

  • -45° to 232° C (-50° to 450° F)

Seal Retainer

  • ASTM A479-316 Stainless Steel

Seat/Seal Material

  • Delrin®

Stem Material

  • ASTM A479-316 Stainless Steel

Valves

  • Five
