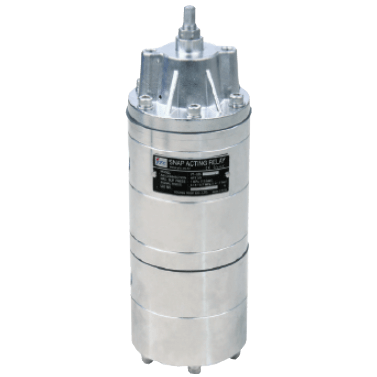

YT-535 Snap Acting Relay

Brand: Rotork YTC
The YT-535 Snap Acting Relay senses supply pressure and changes the direction of the supply air flow when the supply pressure level is lower than the set pressure level.

By using a snap-acting relay, the valve system can "fail freeze" as the supply pressure fails.
Features
  • Switches pressure flows when abnormal pressure detected
  • Stem can be extended and connected
  • Able to lock actuator in its position
  • Responses to very small changes to supply pressure with high accuracy
  • Enhanced versatility by having different material for body and options
  • Internal 100-mesh screen filters small dust entering into the product
The YT-535 Snap Acting Relay senses supply pressure and changes the direction of the supply air flow when the supply pressure level is lower than the set pressure level.

By using a snap-acting relay, the valve system can "fail freeze" as the supply pressure fails.
Features
  • Switches pressure flows when abnormal pressure detected
  • Stem can be extended and connected
  • Able to lock actuator in its position
  • Responses to very small changes to supply pressure with high accuracy
  • Enhanced versatility by having different material for body and options
  • Internal 100-mesh screen filters small dust entering into the product
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Enclosure, Body Material

  • 316 Stainless Steel

Flow Capacity

  • 1.8 Cv

NPT Connection

  • 1/4" NPT Female - Signal Connection
  • 3/8" NPT Female - In/Output Connection

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • psig: 2 to 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
