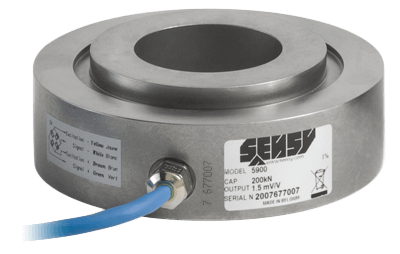

5900 Through Hole (Annular) Load Cell

Brand: Sensy S.A.
Annular force transducer specially designed for application requiring a centred hole.
Features
  • Sturdy design
  • Material: stainless steel
  • Protection: IP 67
  • Easy to install
  • CE certified for hoisting applications
  • Complete range of "CE" certified electronics, load limiters
  • Cable length: 6m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Protection IP 68
    • High service temperature (up to 180° C)
    • Amplified output (V or mA)
show more
Annular force transducer specially designed for application requiring a centred hole.
Features
  • Sturdy design
  • Material: stainless steel
  • Protection: IP 67
  • Easy to install
  • CE certified for hoisting applications
  • Complete range of "CE" certified electronics, load limiters
  • Cable length: 6m
  • Available options:
    • ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
    • Protection IP 68
    • High service temperature (up to 180° C)
    • Amplified output (V or mA)

Specifications

Brand

Applications

  • Measurement of Force & Stress
  • Weighing on Cranes

Approvals & Certifications

  • ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
  • CE

Cable Length

  • 19.69 feet (6 meters)

Capacity

  • 0.3 to 20 T

Enclosure, Body Material

  • Stainless Steel

Environmental Protection

  • IP67
  • IP68

Excitation Voltage

  • 10 Vdc
  • 3-12 Vdc - Nominal Range

Insulation Resistance

  • > 5,000 MegaOhms

Linearity

  • Error: <± 0.25% (0.25 Model) to 1% (SL-HOIST) of Full Scale

Load

  • Breaking Load: > 300% to > 500% of Full Scale
  • Permissible Dynamic Loading: 40% of Full Scale
  • Permissible Dynamic Loading: 75% of Full Scale

Load Limit

  • 150% (0.25 & 0.5 Model) to 200% (SL-HOIST Model) of Full Scale

Repeatability

  • Error: <± 0.1% (0.25 Model) to <± 0.25% (SL-HOIST Model) of Full Scale

Resistance

  • Input/Output: 702 ± 2 ohms

Sensitivity

  • Nominal Sensitivity: 1 to 1.5 mV/V
  • Tolerance: <± 0.3% to <± 0.5%

Service Temperature

  • -30 to 70° C (-22° to 158° F)

Storage Temperature

  • -50 to 85° C (-58° to 185° F)

Zero Balance

  • ± 0.02 mV/V
