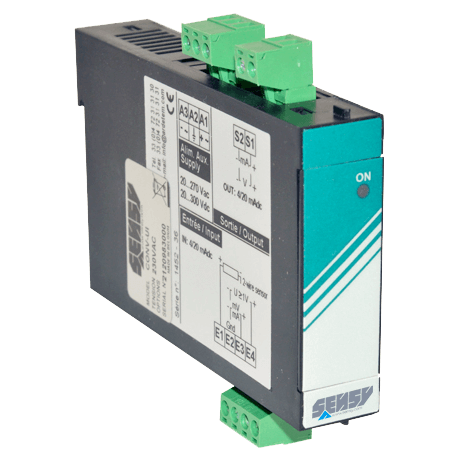

CONV-UI Measurement Transmitter

Brand: Sensy S.A.
Measurement transmitter designed to convert any not normalised DC voltage or current signal into a normalized signal while providing galvanic insulation. Features:
  • Voltage or current input
  • Galvanic isolation 2 kV RMS. 50 Hz during maximum 60 s between input, output and power supply
  • Selection of input and output ranges by jumpers behind the front plate
  • Wide range of power supply
  • Rail din mounting
  • Conform to EMC EN 50082-2
show more
Measurement transmitter designed to convert any not normalised DC voltage or current signal into a normalized signal while providing galvanic insulation. Features:
  • Voltage or current input
  • Galvanic isolation 2 kV RMS. 50 Hz during maximum 60 s between input, output and power supply
  • Selection of input and output ranges by jumpers behind the front plate
  • Wide range of power supply
  • Rail din mounting
  • Conform to EMC EN 50082-2

Specifications

Brand

Accuracy

  • ≤ ± 0.2% of Full Scale

Approvals & Certifications

  • CE

Bandwidth

  • 0 to 1 Hz

Environmental Protection

  • IP20

Input

  • ± 10 mV to ± 100 V
  • ± 5 mA
  • ± 50 mA

Isolation

  • Galvanic Isolation: 2 kV RMS

Mounting

  • DIN Rail

Output

  • 0-20 mA (Load Resistance 1,000 ohms)

Power Supply

  • 88-350 Vdc (4 VA, Maximum
  • 90-270 Vac ( 50 / 60 / 400 Hz)

RFI/EMI Protection

  • EN 500082-2

Service Temperature

  • -10° to 60° C (14° to 140° F)

Storage Temperature

  • -30° to 80° C (-22° to 176° F)
