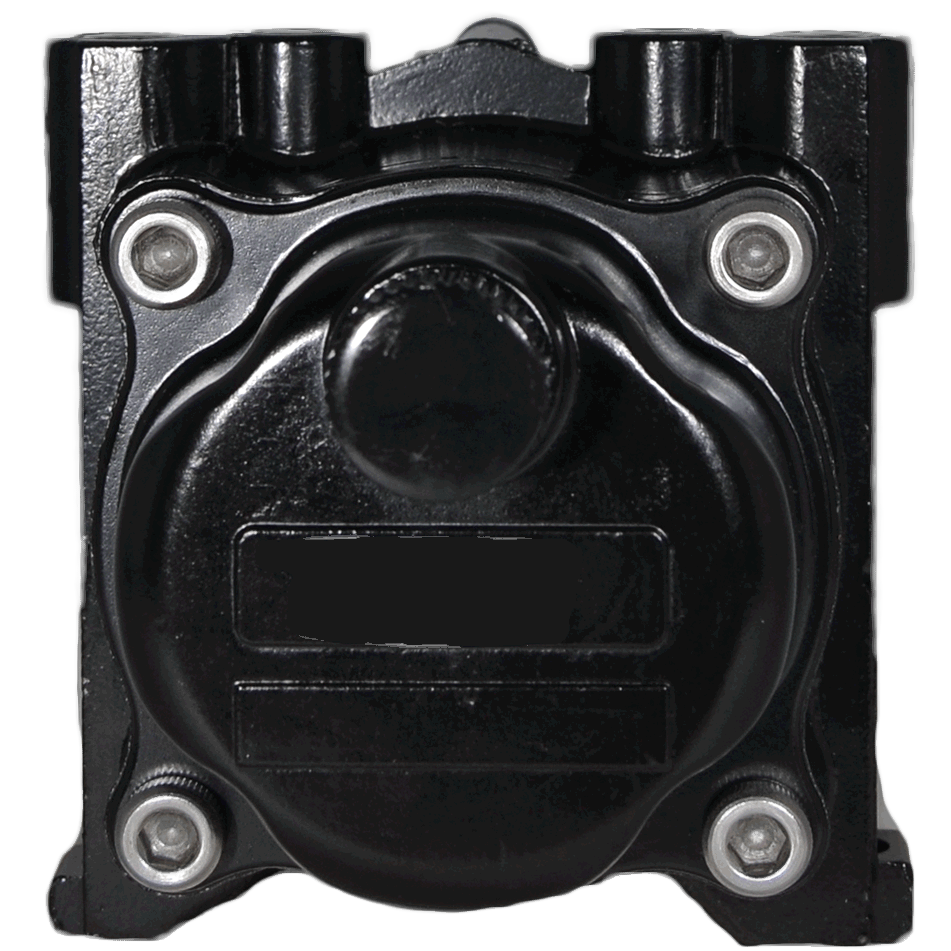

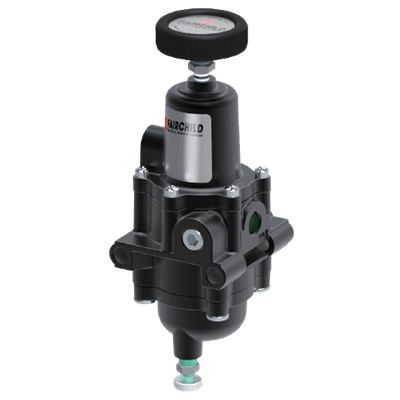

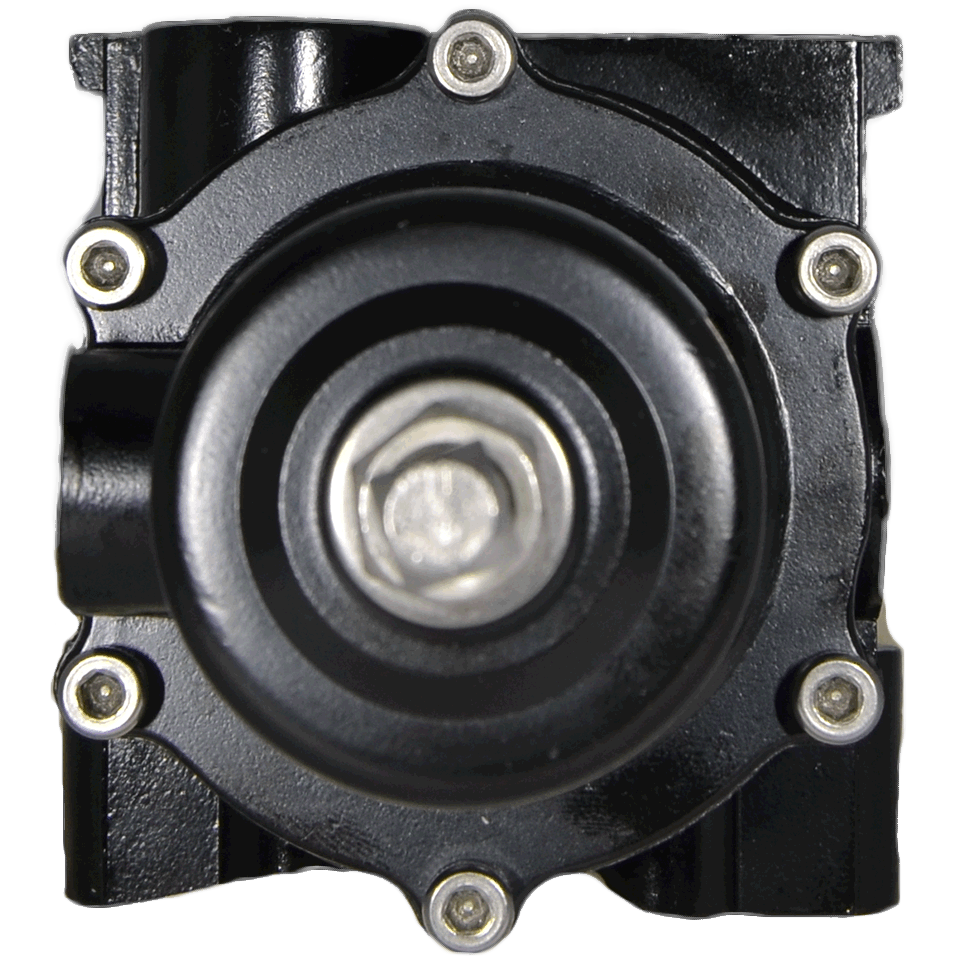

Model 63 Pneumatic Filter Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 63 filter regulator is a general purpose service regulator with an integral 5 micron filter within its dripwell bowl. In most applications, a pneumatic filter regulator must provide good filtration and high flow to serve the needs of the system without restricting its performance.

The Model 63 pressure regulator is well suited to these applications as it has a standard 5 micron filter and has the highest flow capacity of any regulator in its class. In addition, the Model 63 features control sensitivity of 1" water column and an integral relief valve to deliver consistent and reliable performance to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 63 will handle a 300 psi, 20 BAR, maximum supply pressure and offers three (3) output pressure ranges from 0.5-30 psi, 0.03-2 BAR, 3-200 kPa, up to 2-120 psi, 0.14-8 BAR, 14-800 kPa. The Fairchild Model 63 pressure regulator offers up to 25 SCFM, 42.5 m3/hr flow capacity.
Features
  • High Flow Capacity
  • Standard 5-micron filter
  • No "yellow Metals" internal construction
  • Epoxy coated finish
  • Non-bleed design
  • Integral Relief Valve
  • Standard Gauge Port
  • Filter Dripwell Drain Plug
  • Standard Tapped Exhaust
  • Soft Relief Seat
show more
The Rotork Fairchild Model 63 filter regulator is a general purpose service regulator with an integral 5 micron filter within its dripwell bowl. In most applications, a pneumatic filter regulator must provide good filtration and high flow to serve the needs of the system without restricting its performance.

The Model 63 pressure regulator is well suited to these applications as it has a standard 5 micron filter and has the highest flow capacity of any regulator in its class. In addition, the Model 63 features control sensitivity of 1" water column and an integral relief valve to deliver consistent and reliable performance to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 63 will handle a 300 psi, 20 BAR, maximum supply pressure and offers three (3) output pressure ranges from 0.5-30 psi, 0.03-2 BAR, 3-200 kPa, up to 2-120 psi, 0.14-8 BAR, 14-800 kPa. The Fairchild Model 63 pressure regulator offers up to 25 SCFM, 42.5 m3/hr flow capacity.
Features
  • High Flow Capacity
  • Standard 5-micron filter
  • No "yellow Metals" internal construction
  • Epoxy coated finish
  • Non-bleed design
  • Integral Relief Valve
  • Standard Gauge Port
  • Filter Dripwell Drain Plug
  • Standard Tapped Exhaust
  • Soft Relief Seat
26 models matching criteria
63252NS
FAIRCHILD Model 63 Pneumatic Filter Regulator, 2-120 psig, 14-800 kPa, 1/4" NPT, Screw
100+ In Stock
$124.52USD
$7.87 Shipping
63242NS
FAIRCHILD Model 63 Pneumatic Filter Regulator, 1-60 psig, 7-400 kPa, 1/4" NPT, Screw
11 In Stock
$134.77USD
$7.87 Shipping
63232NK
FAIRCHILD Model 63 Pneumatic Filter Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Knob
4 In Stock
$137.13USD
$7.87 Shipping
63232NS
FAIRCHILD Model 63 Pneumatic Filter Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT
Out of Stock
$126.89USD
$7.87 Shipping
63252NSM
FAIRCHILD Model 63 Pneumatic Filter Regulator, 2-120 psig, 14-800 kPa, 1/4" NPT, Screw, Screen
8 - 12 days
$133.98USD
$7.87 Shipping
63252NK
FAIRCHILD Model 63 Pneumatic Filter Regulator, 2-120 psig, 14-800 kPa, 1/4" NPT, Knob
8 - 12 days
$137.13USD
$7.87 Shipping
63252NSG
FAIRCHILD Model 63 Pneumatic Filter Regulator, 2-120 psig, 14-800 kPa, 1/4" NPT, Screw,2"Press.Gauge
Out of Stock
$137.92USD
$7.87 Shipping
63232NSG
FAIRCHILD Model 63 Pneumatic Filter Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Screw,2"Press.Gauge
8 - 12 days
$140.29USD
$7.87 Shipping
63242NSC
FAIRCHILD Model 63 Pneumatic Filter Regulator, 1-60 psig, 7-400 kPa, 1/4" NPT, Screw, Quick Bleed
2 - 4 weeks
$151.32USD
$7.87 Shipping
63252NSC
FAIRCHILD Model 63 Pneumatic Filter Regulator, 2-120 psig, 14-800 kPa, 1/4" NPT, Screw, Quick Bleed
2 - 4 weeks
$151.32USD
$7.87 Shipping

Specifications

Actuator Type

  • Knob Adjust
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 82° C (-40° to 180° F)

BSP Connection

  • 1/4" BSPP Female
  • 1/4" BSPT Female

Elastomers

  • Nitrile

Enclosure, Body Material

  • Aluminum, Epoxy Coated

Exhaust Capacity - Relieving Units Only

  • 0.8 scfm
  • 0.8 scfm (1.36 m³/hour)
  • 1.63 m³/hour

Flow Capacity

  • 25 scfm (42.5 m³/hour)
  • 25 scfm (42.5 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 42.5 m³/hour

Media

  • Compressed Air
  • Gas

NPT Connection

  • 1/4" NPT Female

Output Options

  • 2" Gauge
  • None

Pressure Range

  • bar: 0.03 to 8
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • kPa: 13.6 to 1,020
  • kPa: 3 to 800
  • kPa: 3.4 to 204
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 1 to 60
  • psig: 2 to 120
  • psig: 2 to 150

Relief

  • Quick Bleed
  • Relieving

Sensitivity

  • 1" WC (2.54 cm)

Supply Pressure - Maximum

  • bar: 20
  • kPa: 2,000
  • psig: 300

Supply Pressure Effect

  • less than 0.09 bar
  • less than psi: 1.3 (bar: 0.09, kPa: 9)
  • less than psig: 1.25 (bar: 0.086, kPa: 8.6)
  • less than psig: 1.25 (bar: 0.09, kPa: 9) Change for psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure psig: 1.90 for 120 psig Range

Trim Material

  • Nickel-Plated Steel
  • Stainless Steel
  • Zinc-Plated Steel

Vent

  • Screen in Exhaust
  • Straight
