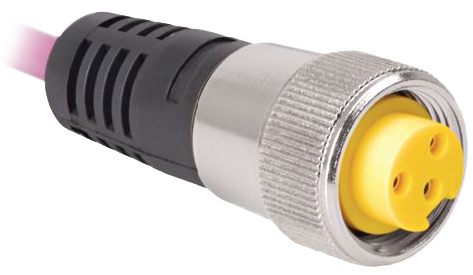

HART minifast Single Ended Cordset

Brand: Turck
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
show more
Features
  • Connector
    • Female or Male
    • Straight or Right Angle
  • Options
    • Cable
      • Shielded Braided
      • PVC Jacket
      • Foil/Drain
    • Connector
      • Nickle Plated Brass
      • Nylon
      • 316 Stainless Steel
61 models matching criteria
P-RKM 30-026-2M
TURCK minifast Drop Cordset, 3-Pin, Female, 2-Wire Analog/HART, PVC/Plum, CSA, 2m, NCNR
2 - 8 weeks
$35.02USD
$18.97 Shipping
P-RKM 40-949-2M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Plum, CSA, 2m, NCNR
2 - 8 weeks
$40.13USD
$18.97 Shipping
P-RKM 40-950-2M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Blue, CSA, I/S, 2m, NCNR
2 - 8 weeks
$40.13USD
$18.97 Shipping
P-RSM 40-330-2M
TURCK minifast Drop Cordset, 4-Pin Male, 2-Wire Analog/HART, PVC/Black, CSA, I/S, 2m, NCNR View More
  • Process Cable:
    • Analog and HART
    • Single Connector Drop Cordset

  • Connectors:
    • "minifast" Series
    • Male Single Ended
    • Nickel Plated Brass Housing
    • 4 Contacts

  • Jacket:
    • PVC Black

  • Conductors:
    • (3) #18 AWG
      • (1) #18 AWG Shielded Twisted Pair
      • (1) #18 AWG Ground Wire
      • (1) #20 AWG Drain


  • Length:
    • 2 Meters

  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)

  • Protection Class:
    • IEC67, NEMA 1,3,4,6P

  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C, 300V
    • CSA: CIC, 90C, 300V
    • cUL: 245/1309 Marine Shipboard & IEEE 1580

40 - 56 days
$41.59USD
$18.97 Shipping
P-RKM 40-330-1M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Black, CSA, I/S, 1m, NCNR View More
  • Process Cable:
    • Analog and HART
    • Single Ended Drop Cordset

  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • Nickel Plated Brass
    • 4 Contacts

  • Jacket:
    • PVC Black

  • Conductors:
    • (3) #18 AWG
      • (1) #18 AWG Shielded Twisted Pair
      • (1) #18 AWG Ground Wire
      • (1) #20 AWG Drain


  • Length:
    • 1 Meter

  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)

  • Protection Class:
    • IEC67, NEMA 1,3,4,6P

  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C, 300V
    • CSA: CIC, 90C, 300V
    • cUL: 245/1309 Marine Shipboard & IEEE 1580

Out of Stock
$41.59USD
$18.97 Shipping
P-WKM 40-330-1M
TURCK minifast Drop Cordset, 4-Pin,RightAngFemale, 2-Wire Analog/HART, PVC/Black, CSA, I/S, 1m, NCNR View More
  • Process Cable:

    • Analog and HART
    • Single Ended Drop Cordset

  • Connectors:
    • "minifast" Series
    • Right Angle Female Single Ended
    • Nickel Plated Brass
    • 4 Contacts

  • Jacket:
    • PVC Black

  • Conductors:
    • (3) #18 AWG
      • (1) #18 AWG Shielded Twisted Pair
      • (1) #18 AWG Ground Wire
      • (1) #20 AWG Drain


  • Length:
    • 1 Meter

  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)

  • Protection Class:
    • IEC67, NEMA 1,3,4,6P

  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C, 300V
    • CSA: CIC, 90C, 300V
    • cUL: 245/1309 Marine Shipboard & IEEE 1580

Out of Stock
$41.59USD
$18.97 Shipping
P-RKM 40-330-2M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Black, CSA, I/S, 2m, NCNR View More
  • Process Cable:
    • Analog and HART
    • Single Connector Drop Cordset

  • Connectors:
    • "minifast" Series
    • Female Single Ended
    • Nickel Plated Brass Housing
    • 4 Contacts

  • Jacket:
    • PVC Black

  • Conductors:
    • (3) #18 AWG
      • (1) #18 AWG Shielded Twisted Pair
      • (1) #18 AWG Ground Wire
      • (1) #20 AWG Drain


  • Length:
    • 2 Meters

  • Temperature Rating:
    • -40°C to +105°C (-40°F to +221°F)

  • Protection Class:
    • IEC67, NEMA 1,3,4,6P

  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C, 300V
    • CSA: CIC, 90C, 300V
    • cUL: 245/1309 Marine Shipboard & IEEE 1580

2 - 8 weeks
$41.59USD
$18.97 Shipping
P-RKV 323-2129-2M
TURCK minifast Cordset, 3-Pin, Female, 3 x 16 AWG, PVC/Black, CSA, 2m, NCNR View More
  • P: Process Cable
  • R: Straight minifast Cable
  • K: female connector
  • V: stainless steel Housing Material
  • 323-2129: Wire Designation, see data sheet
  • 2M: Length in Meters
  • Temperature Range: -40°C to 105°C
  • Protection Class: Meets NEMA 1,3,4,6P and IEC IP67
  • Cable Ratings:
    • UL: ITC - ER/PLTCER-ER, DIRECT BURIAL 105°C
    • CSA: CIC 90°C 600V
    • C(UL): 245/1309 MARINE SHIPBOARD & IEEE 1580

4 - 8 weeks
$48.88USD
$18.97 Shipping
P-RKV 40-330-1M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Blue, CSA, I/S, SST, 1m, NCNR
12 - 14 weeks
Non-Cancellable / Non-Refundable
$50.34USD
$18.97 Shipping
P-RKV 40-330-2M
TURCK minifast Drop Cordset, 4-Pin, Female, 2-Wire Analog/HART, PVC/Blue, CSA, I/S, SST, 2m, NCNR
2 - 8 weeks
$50.34USD
$18.97 Shipping

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Connection Material

  • Nickel-Plated Brass
  • Nylon
  • Stainless Steel

Connection Pin-Out

  • 3-Pin
  • 4-Pin

Connection Style

  • minifast

Connector Shape

  • Right Angle
  • Straight

Environmental Protection

  • IP10
  • IP54
  • IP66
  • NEMA 1, 3, 4, 6P / IP10, 54, 66
  • NEMA 3
  • NEMA 4
  • NEMA 6P

Operating Temperature

  • -30° to 80° C (-22° to 176° F)

Version / Leadwires

  • 2-Wire
  • 30-026: 2 x 18 AWG BU, BN, ITC/PLTC PVC
  • 3-Wire
  • 40-330: 3 x 18 AWG BU, BN, GN/YE, ITC-Exposed PLTC PVC
  • 40-950 & 40-949: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC PVC
  • 40A-947: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC Armor Plum Outer
  • 40A-952: 3 x 18 AWG BU, BN, GN/YE, ITC/PLTC Armor
  • 45-098: 3 x 16 AWG WH, BK, GN, ITC/PLTC PVC
