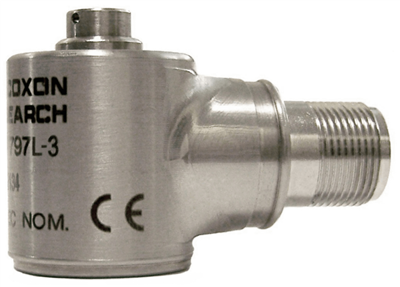

Model 797V Low Profile IsoRing Piezovelocity Transducer

Brand: Wilcoxon Sensing Technologies
Request Information
Side exit, premium, IsoRing case isolated, MIL-C-5015 connector, 100 mV/g, ±5% sensitivity tolerance.
Features
  • Rugged design
  • Internally integrated to velocity
  • Eliminates distortion caused by high frequency signals
  • Corrosion resistant
  • ESD protection
  • Reverse wiring protection
  • Mounts in any orientation
show more
Side exit, premium, IsoRing case isolated, MIL-C-5015 connector, 100 mV/g, ±5% sensitivity tolerance.
Features
  • Rugged design
  • Internally integrated to velocity
  • Eliminates distortion caused by high frequency signals
  • Corrosion resistant
  • ESD protection
  • Reverse wiring protection
  • Mounts in any orientation
Close

Specifications

Brand

Approvals & Certifications

  • CE

Circuit Protection

  • ESD Protection
  • Reverse Wiring Protection

Electrical Connectors

  • Cabling (J9T2A)

Element

  • Sensing Element Design: PZT Ceramic, Shear

Enclosure, Body Material

  • 316L Stainless Steel

Environmental Protection

  • Corrosion-Proof

Frequency

  • Frequency Response (± 10 %): 2 to 3,500 Hz
  • Frequency Response (± 3 dB): 1.6 to 7,000 Hz
  • Resonance Frequency: 18 kHz

Mounting

  • 1/4-28 Captive Socket Head Screw

Mounting Position

  • Any Orientation

Noise

  • Electrical Noise, Equivalent G, Nominal (Broadband: 2.5 Hz to 25 kHz): 100 µin/sec
  • Electrical Noise, Equivalent G, Nominal (Spectral: 1,000 Hz): 0.1 µin/sec/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 10 Hz): 10 µin/sec/√Hz
  • Electrical Noise, Equivalent G, Nominal (Spectral: 100 Hz): 0.8 µin/sec/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 5 %

Output Impedence

  • Output Impedance, 4 mA Supply, the greater of: 200 ohms or 5,000/f

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Velocity Range: 50 In/sec Peak

Seal Type

  • Hermetic

Sensitivity

  • Base Strain Sensitivity: 0.004 In/sec/μstrain
  • Sensitivity, ± 10 %, 25° C (77° F): 100 mV/inch/sec
  • Transverse Sensitivity: Max. 5 % of Axial

Shock

  • Shock Limit: 2,500 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 250 G Peak

Voltage

  • Bias Output Voltage: 10 Vdc
