Description

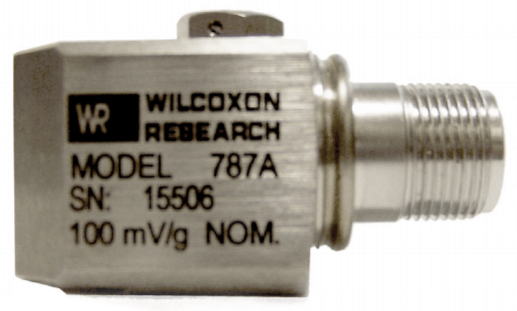

Wilcoxon’s side-exit 100 mV/g broadband sensor is ideal for monitoring machine vibration on a wide range of rotating equipment including motors, pumps, fans, compressors, turbines and generators. A 316L stainless steel casing provides rugged durability for the most extreme environments. The sensing element is housed in a case-isolated Faraday shield, providing maximum protection from ground loops and RF interference.
Features
- Mounts in any orientation
- Hermetically sealed
- ESD-protected
- Reverse wiring protection
- Manufactured in an approved ISO 9001 facility
Specifications
Specifications
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- CE
Circuit Protection
- ESD Protection
- Reverse Wiring Protection
Electrical Connectors
- Cable (J9T2A / J9F)
- Output Connector: 2-Pin, MIL-C-5015 Style
Element
- Sensing Element Design: PZT, Shear
Enclosure, Body Material
- 316L Stainless Steel
Frequency
- Frequency Response (± 10%): 1 to 5,000 Hz
- Frequency Response (± 3 dB): 0.5 to 10,000 Hz
- Resonance Frequency: 22 kHz
Mounting
- 1/4-28 Captive Hex Head Screw, 0.046” Diameter Safety Wire Hole
Mounting Position
- Any Orientation
Noise
- Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 700 µg
- Electrical Noise, Equivalent G (Spectral: 10 Hz): 10 µg/√Hz
- Electrical Noise, Equivalent G (Spectral: 100 to 1,000 Hz): 5 µg/√Hz
Non-Linearity
- Amplitude Non-Linearity: 1%
Output Impedence
- Maximum
Power Requirement
- 18-30 Vdc
- Current Regulating Diode: 2-10 mA
Range
- Acceleration Range, Vdc > 25 V: 80 G Peak
Seal Type
- Hermetic
Sensitivity
- Base Strain Sensitivity, Maximum
- Electromagnetic Sensitivity, Equivalent G, Maximum
- Sensitivity, ± 5%, 25° C (77° F): 100 mV/g
- Transverse Sensitivity: Maximum
Shock
- Shock Limit: 5,000 G Peak
Temperature Range
- -50° to 120° C (-58° to 248° F)
Vibration
- Vibration Limit: 500 G Peak
Voltage
- Bias Output Voltage: 12 Vdc
Documentation
Reviews (0)
Review this product and let us know your experiences
Write a ReviewQ & A (0)
Similar Products

Model 786A General Purpose Accelerometer
Wilcoxon Sensing Technologies

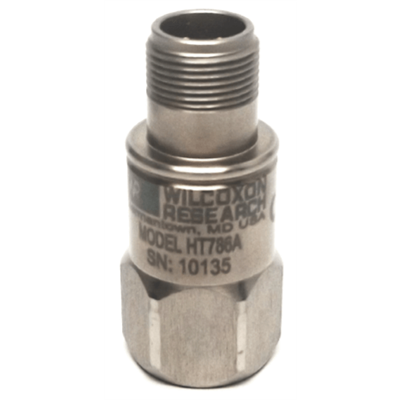

Model HT786A High Temperature General Purpose Accelerometer
Wilcoxon Sensing Technologies

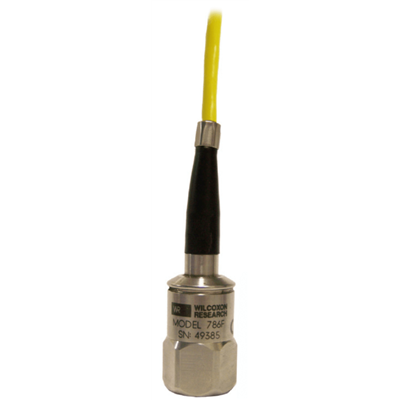

Model 786F-IS Intrinsically Safe Accelerometer
Wilcoxon Sensing Technologies

Model 786B-10 General Purpose Accelerometer
Wilcoxon Sensing Technologies

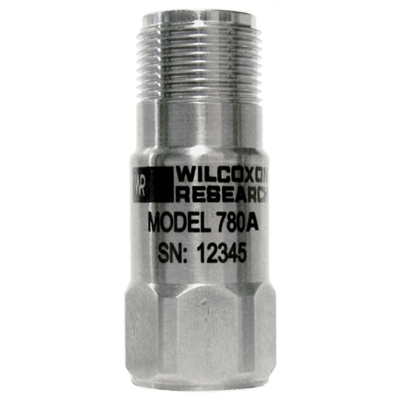

Model 780A General Purpose Compact Accelerometer
Wilcoxon Sensing Technologies

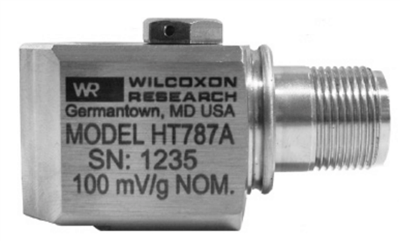

Model HT787A High Temperature Side Exit Accelerometer
