8R Series Automatic Ball Valve

Brand: A-T Controls, Inc.
Features:
  • Design: 3-Piece High Performance
  • Size: 1/4" to 2-1/2"
  • Port: Regular
  • Direct Mount: No
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: 2,000/1,000 psi (size dependent)
  • Actuator Type:

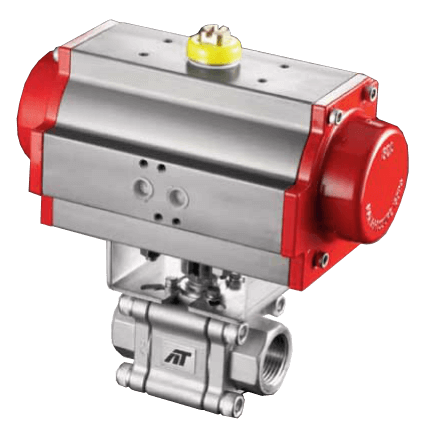

    • Pneumatic (Double Acting or Spring Return)

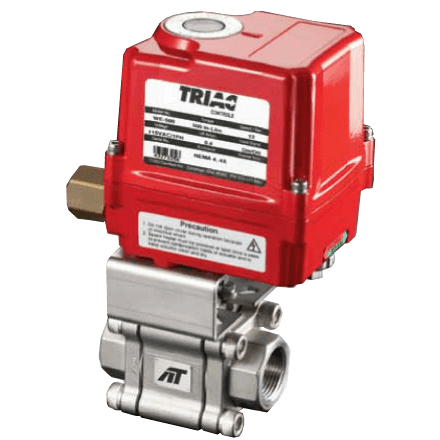

    • Electric (On/Off or Modulating)
show more
Features:
  • Design: 3-Piece High Performance
  • Size: 1/4" to 2-1/2"
  • Port: Regular
  • Direct Mount: No
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel, WCB
    • Trim: 316 Stainless Steel
    • Available Seats: RTFE, PTFE, 50/50%
  • End Connections: Threaded Ends, Socket Weld, Butt Weld
  • Maximum Pressure Rating: 2,000/1,000 psi (size dependent)
  • Actuator Type:
    • Pneumatic (Double Acting or Spring Return)
    • Electric (On/Off or Modulating)
8R-TX-025/2R2S-XX
A-T CONTROLS Series 8R Automated Ball Valve, 3-Piece Regular Port, 316 SST, 1/4" NPT, RTFE, 2R40SR Pneumatic Actuator, Spring Return
2 - 4 weeks
$387.38USD
$7.90 Shipping

Specifications

Direct Mount

  • No

Enclosure, Body Material

  • 316 Stainless Steel
  • Carbon Steel

NPT Connection

  • 1" NPT Female
  • 1/2" NPT Female
  • 1/4" NPT Female
  • 1-1/2" NPT Female
  • 1-1/4" NPT Female
  • 2" NPT Female
  • 2-1/2" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Options

  • Intrinsically Safe Solenoid & Limit Switches
  • NEMA 4 Solenoid 120 Vac & Switches
  • NEMA 7 Solenoid 120 Vac & Switches

Port

  • Reduced (Standard, Regular)

Pressure Rating

  • psi: 1,000
  • psi: 2,000

Pyramidal Stem Packing

  • No

Seat / Seal Material

  • 50% Stainless Steel Powder / 50% Carbon Filled Teflon
  • PTFE (Carbon Filled Teflon)
  • RTFE (Reinforced Teflon)

TA-Luft Certified

  • Yes

Trim Material

  • 316 Stainless Steel

Valve Type

  • Automated

Welded Connection

  • 1" Butt Weld End
  • 1" Socket Weld End Female
  • 1/2" Butt Weld End
  • 1/2" Socket Weld End Female
  • 1/4" Butt Weld End
  • 1/4" Socket Weld End Female
  • 1-1/2" Butt Weld End
  • 1-1/2" Socket Weld End Female
  • 1-1/4" Butt Weld End
  • 1-1/4" Socket Weld End Female
  • 2" Butt Weld End
  • 2" Socket Weld End Female
  • 2-1/2" Butt Weld End
  • 2-1/2" Socket Weld End Female
  • 3/4" Butt Weld End
  • 3/4" Socket Weld End Female
  • 3/8" Butt Weld End
  • 3/8" Socket Weld End Female
