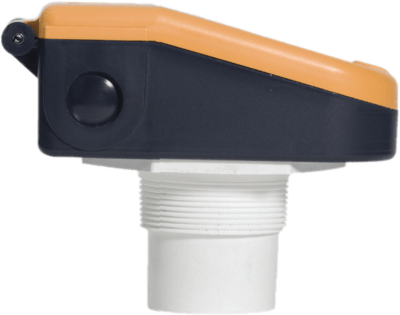

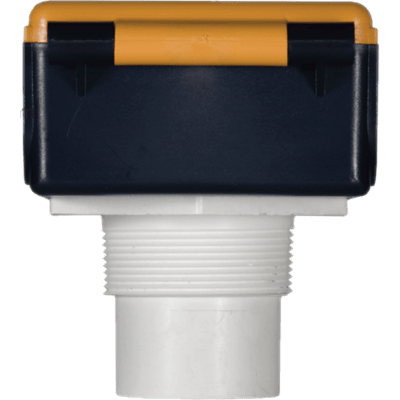

LOE Ultrasonic Level Sensor

Brand: Automation Products Group - APG
The LOE ultrasonic sensor series is designed for remote level mesasurement. Simply plug in your ethernet cable for inexpensive, web-based remote level measurement. They are fully programmable for various applications, giving the user complete control. Each LOE can also serve as a Modbus network controller for up to 10 slave sensors.
Features
  • Programmable response time
  • RS-485 Modbus communication
  • LAN Embedded Webpage
show more
The LOE ultrasonic sensor series is designed for remote level mesasurement. Simply plug in your ethernet cable for inexpensive, web-based remote level measurement. They are fully programmable for various applications, giving the user complete control. Each LOE can also serve as a Modbus network controller for up to 10 slave sensors.
Features
  • Programmable response time
  • RS-485 Modbus communication
  • LAN Embedded Webpage
LOE-2126
APG LOE Series Web Enabled Ultrasonic Level Sensor & Modbus Controller, 1-25' Range, 2" MNPT, (2) Relay Outputs View More
  • Operating Range: 1 - 25 ft. (0.3 - 7.62 m)
  • Accuracy: ±0.25% of Detect Range
  • Programming: Programmable via the APG website or LAN, User Selected Units.
  • Output:
    • Ethernet TCP/IP to Internal Web page or APG Website
    • Two (2) Isolated Solid State Relays (130 mA max)
  • Electrical Connection: 6 Conductor Shielded Cable
  • Temperature Range:
    • -40°F to +140°F (-40°C to +60°C)
  • Materials of Construction:
    • PVDF Transducer Housing
    • PCB/PET Upper Housing
  • Class 1, Div. 2, Groups A, B, C, D, IP65
Out of Stock
$1,075.86 USD
$15.56 Shipping
LOE-6126
APG LOE Series Web Enabled Ultrasonic Level Sensor & Modbus Controller, 0.6-15' Range, 2" MNPT, (2) Relay Outputs View More
  • Operating Range: 7 - 180 in. (178 - 4572 mm)
  • Accuracy: ±0.25% of Detect Range
  • Programming: Programmable via the APG website or LAN, User Selected Units.
  • Output:
    • Ethernet TCP/IP to Internal Web page or APG Website
    • Two (2) Isolated Solid State Relays (130 mA max)
  • Electrical Connection: 6 Conductor Shielded Cable
  • Temperature Range:
    • -40°F to +140°F (-40°C to +60°C)
  • Materials of Construction:
    • PVDF Transducer Housing
    • PCB/PET Upper Housing
  • Class 1, Div. 2, Groups A, B, C, D, IP65
3 - 5 weeks
$1,075.86 USD
$15.56 Shipping
LOE-7126
APG LOE Series Web Enabled Ultrasonic Level Sensor & Modbus Controller, 5-144" Range, 2" MNPT, (2) Relay Outputs View More
  • Operating Range: 5 - 144 inches (127 - 3658 mm)
  • Accuracy: ±0.25% of Detect Range
  • Programming: Programmable via the APG website or LAN, User Selected Units.
  • Output:
    • Ethernet TCP/IP to Internal Web page or APG Website
    • Two (2) Isolated Solid State Relays (130 mA max)
  • Electrical Connection: 6 Conductor Shielded Cable
  • Temperature Range:
    • -40°F to +140°F (-40°C to +60°C)
  • Materials of Construction:
    • PVDF Transducer Housing
    • PCB/PET Upper Housing
  • CSA Class 1, Div. 2, Groups A, B, C, D
  • IP65
3 - 5 weeks
$1,075.86 USD
$15.56 Shipping

Specifications

Accuracy

  • ± 0.25% of Span

Approvals & Certifications

  • CSA Class I, Division 2, Grade A, B, C, D

Communication

  • Ethernet TCP/IP to Internal Web Page or APG Website

Electrical Connectors

  • 6-Conductor Shielded Cable

Enclosure, Body Material

  • Kynar (PVDF) Transducer Housing
  • PCB/PET Blend Upper Housing

Environmental Protection

  • IP65

Input Power

  • 24 Vdc

NPT Connection

  • 2" NPT Male
  • 3" NPT Male

Operating Temperature - Electronics

  • -40° to 60° C (-40° to 140° F)

Output

  • 120 mA - Maximum

Principle of Operation

  • Continuous Level Sensor

Relay Operation

  • Two 2 Isolated Solid State Relays

Resolution

  • 0.1" (2.5 mm)

Response Time

  • Up to 5 Hz, Once Every 200 milliseconds

Sensing Range

  • 4" to 40 feet (0.10 to 12.19 meters)
  • Feet: 0 to 10
  • Feet: 10 to 25
  • Feet: 25 to 35
  • Feet: 35 to 50
  • Meters: 0 to 3.05
  • Meters: 10.66 to 15.24
  • Meters: 3.05 to 7.62
  • Meters: 7.62 to 10.66

Sensor, Probe Style

  • Ultrasonic

Wetted Materials

  • Polyvinylidene Fluoride
