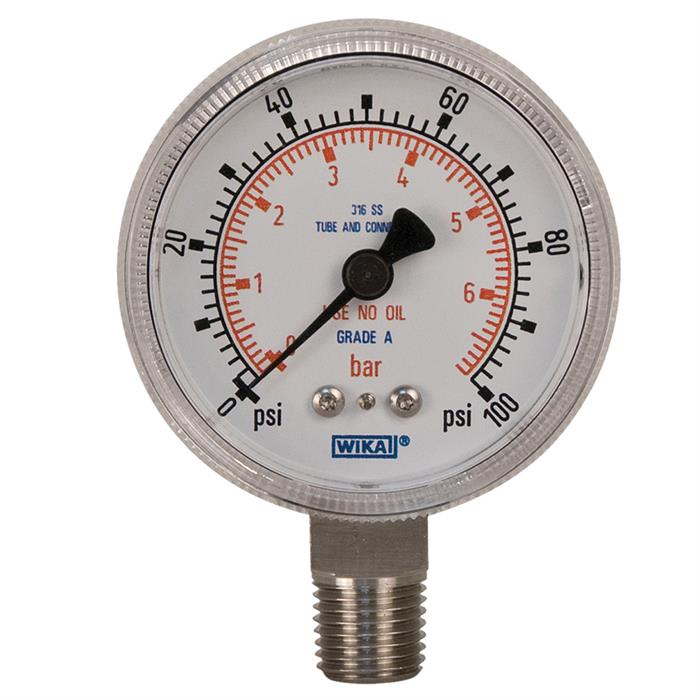

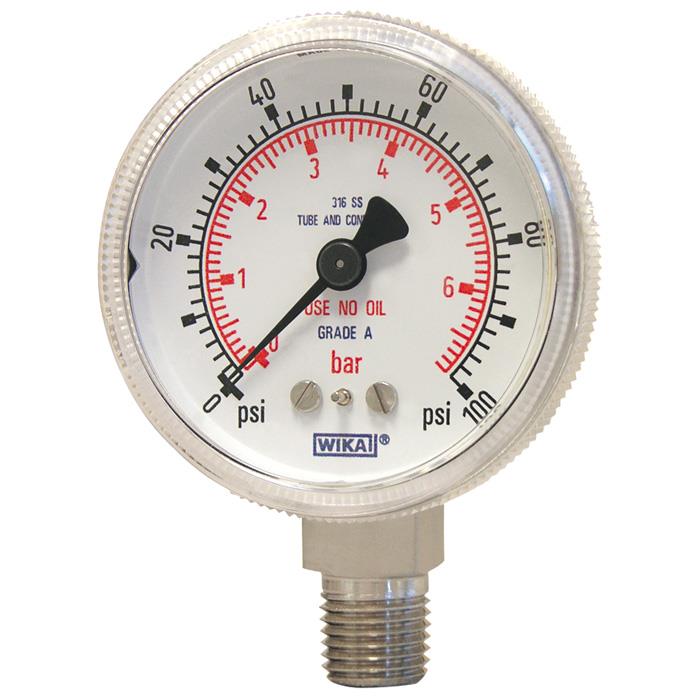

Bourdon Tube Pressure Gauge, Stainless Steel - 130.15

Brand: WIKA Instruments Ltd.
For HP (high purity) applications.
Features
  • 316L wetted parts
  • Electro-polished stainless steel case
  • Positive and compound pressure ranges to 6,000 psi
show more
Images are representations only.
For HP (high purity) applications.
Features
  • 316L wetted parts
  • Electro-polished stainless steel case
  • Positive and compound pressure ranges to 6,000 psi

Specifications

Nominal Size

  • 40, 50 mm (1-1/2", 2")

Range

  • Vacuum / compound to 30”Hg/0/300 psi
  • 15 to 6,000 psi

Operating Temperature

  • Ambient: -40° to 140° F (-40° to 60° C)
  • Medium: 212° F (100° C) maximum

Environmental Protection

  • NEMA 3 / IP54

Process Connection

  • 1/4” Male NPT

Process Conenction Material

  • 316L stainless steel

Dial Material

  • White aluminum

Case Material

  • 304 Stainless Steel, electropolished

Typical Applications

  • Semiconductor and electronic industry, medical industry, gene technology, biotechnology and pharmaceutical industries
  • Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
  • Where measurement of high purity gases is needed without contamination of the process media
