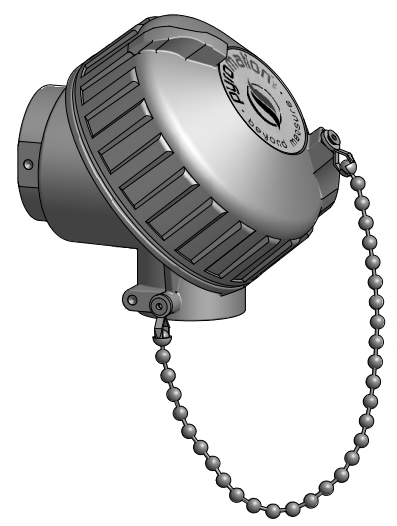

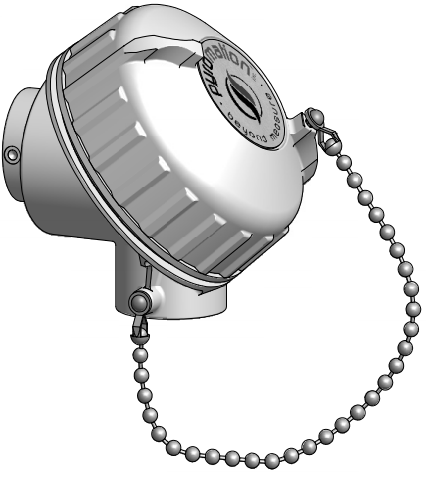

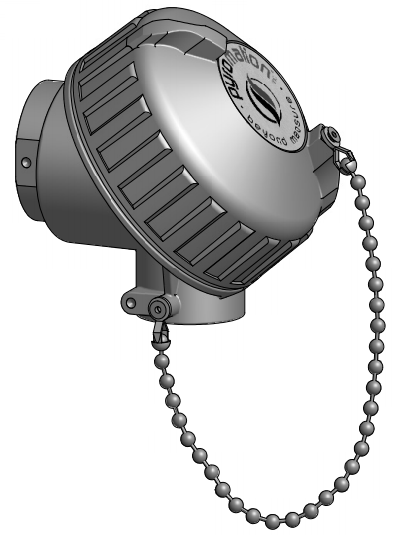

General-Purpose Connection Head

Brand: Pyromation
The general-purpose, screw-cover connection heads listed below are rated for indoor or outdoor use providing protection against dust, rain, splashing and hose-directed water.

These Pyromation design-patented connection heads have easy access, one-turn caps; accept Pyromation 300 series and DIN terminal blocks and transmitters, and provides greater volume for ease of field wiring. When specified, the Series 31, 34 and 91 are rated for Class I Division II locations.
show more
The general-purpose, screw-cover connection heads listed below are rated for indoor or outdoor use providing protection against dust, rain, splashing and hose-directed water.

These Pyromation design-patented connection heads have easy access, one-turn caps; accept Pyromation 300 series and DIN terminal blocks and transmitters, and provides greater volume for ease of field wiring. When specified, the Series 31, 34 and 91 are rated for Class I Division II locations.

Specifications

Brand

Material of Construction

  • Aluminum
  • Cast Iron
  • Polypropylene
  • 316 Stainless Steel

Process Connection

  • 1/2" NPT
  • 3/4" NPT
  • 1" NPT
  • 1/4" NPT
  • 1/8" NPT
  • 3/8" NPT

Gasket Material

  • Graphite

O-Ring Material

  • Buna-N

Conductor Size

  • Up to 12 AWG
