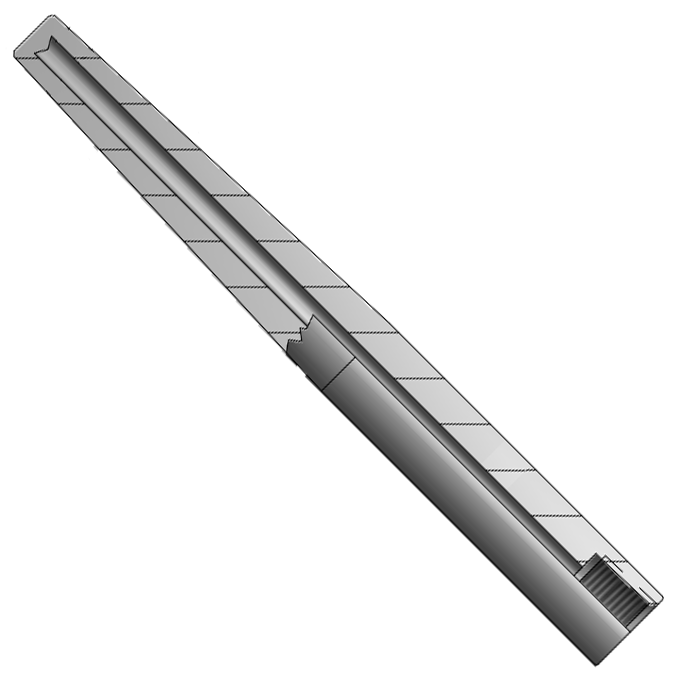

Drilled Thermowell

Brand: Pyromation

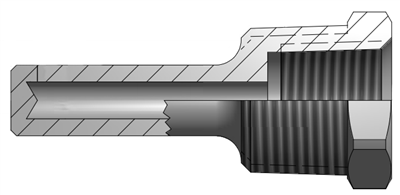

A thermowell is a pressure-tight receptacle that protects and extends the life of a temperature sensor in processing applications where the sensor is not mechanically or chemically compatible with the process environment.

Installed directly into the piping systems, thermowells facilitate sensor replacement in high-pressure pipelines and eliminate the need to interrupt the process flow or drain the process system for sensor maintenance functions. The use of standardized thermowells permits simple relocation of sensors throughout a plant.
show more
A thermowell is a pressure-tight receptacle that protects and extends the life of a temperature sensor in processing applications where the sensor is not mechanically or chemically compatible with the process environment.

Installed directly into the piping systems, thermowells facilitate sensor replacement in high-pressure pipelines and eliminate the need to interrupt the process flow or drain the process system for sensor maintenance functions. The use of standardized thermowells permits simple relocation of sensors throughout a plant.

Specifications

Brand

Well Type

  • Standard-duty threaded (NPT)
  • Heavy-duty threaded (NPT)
  • Straight-shank, socket-weld
  • Weld-in

Bore Size

  • 0.26"

Pipe Size

  • 1/2", 3/4", 1"

Enclosure, Body Material

  • 316 stainless steel
  • 304 stainless steel

T Lag

  • 2", 3"

Documentation

Data Sheet
