D606DT-D622DT, RD606DT-RD622DT Solenoid Valve

Brand: M&M International
Media: Steam
Media temperature: 80° to 180° C (176° to 356° F)
Ambient temperature: -10° to 70° C (14° to 158° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
Operator Seal Material: PTFE
Main Seal and Diaphragm Material: PTFE
Protection Class: IP65 (with Connector and Gasket)
show more

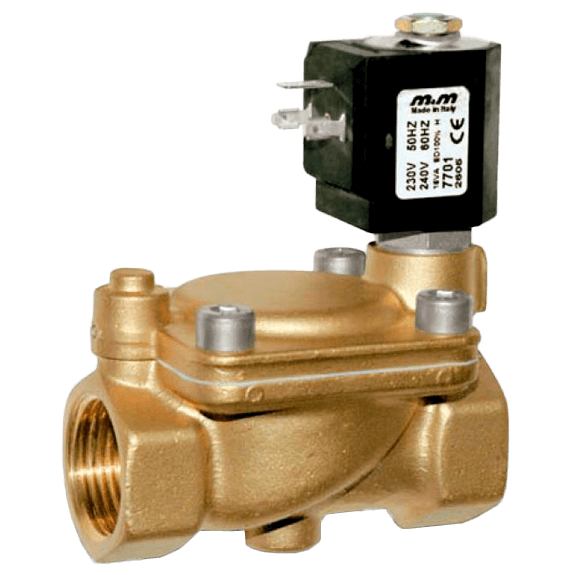

Images are representations only.
Media: Steam
Media temperature: 80° to 180° C (176° to 356° F)
Ambient temperature: -10° to 70° C (14° to 158° F)
Body Material: Brass (CW617N EN 12165)
Operator Material: Stainless Steel
Orifice Material: Stainless Steel (1.4305 EN 10088/AISI 303)
Operator Seal Material: PTFE
Main Seal and Diaphragm Material: PTFE
Protection Class: IP65 (with Connector and Gasket)

Specifications

Approvals & Certifications

  • CE

BSP Connection

  • G 1" Female
  • G 3/4" Female

Enclosure, Body Material

  • Brass (CW617N EN 12165)

Environmental Protection

  • IP65 (with Connector & Gasket)

Seat/Seal Material

  • Main Seal & Operator Seal: PTFE
