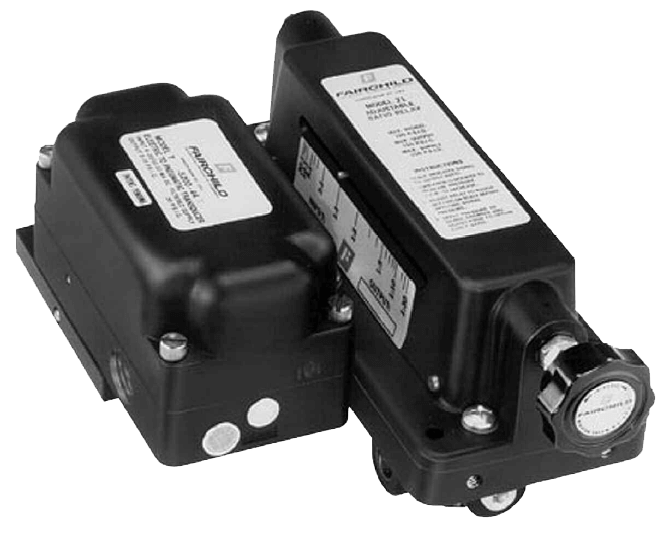

Model T5221 Adjustable Ratio E/P, I/P Pressure Transducer

Brand: Fairchild Industrial Products
When your application requires a very specific control system, look to the Rotork Fairchild T5221 Adjustable Ratio I/P, E/P Transducer.

The T5221 Transducer is an electro-pneumatic device that converts a DC current or voltage input signal to a proportional output pressure. This device is made up of four sections, the Signal Conversion Section, the Pneumatic Section, the Ratio Section, and the Booster Section.

The Fairchild T5221 I/P transducer has all the response and flow performance features of the T5200 series, with the addition of an Adjustable Gain from the ratio section, which allows this single device to cover most industrial and process control requirements. The output pressure is a function of signal pressure times the ratio of lever arm lengths on either side of the Pivot.
Features
  • Shock and Vibration resistant
  • Temperature Compensation
  • Adjustable Positive and Negative Bias
  • High Output Flow
  • Adjustable Gain
show more
Images are representations only.
When your application requires a very specific control system, look to the Rotork Fairchild T5221 Adjustable Ratio I/P, E/P Transducer.

The T5221 Transducer is an electro-pneumatic device that converts a DC current or voltage input signal to a proportional output pressure. This device is made up of four sections, the Signal Conversion Section, the Pneumatic Section, the Ratio Section, and the Booster Section.

The Fairchild T5221 I/P transducer has all the response and flow performance features of the T5200 series, with the addition of an Adjustable Gain from the ratio section, which allows this single device to cover most industrial and process control requirements. The output pressure is a function of signal pressure times the ratio of lever arm lengths on either side of the Pivot.
Features
  • Shock and Vibration resistant
  • Temperature Compensation
  • Adjustable Positive and Negative Bias
  • High Output Flow
  • Adjustable Gain

Model T5221

Underwriting Group

Approval Class

Input

Output Pressure Units

Tamper Proof

Specifications

Actuator Type

  • Tamper-Proof

Air Consumption

  • 0.36 (0.6 m³/hour), Maximum

Ambient Temperature Range

  • -40° to 65.5° C (-40° to 150° F)

Approvals & Certifications

  • CE
  • EMC Derective 89/336/EEC
  • European Norms EN 50081-2 & EN 50082-2
  • FM
  • IEC Standard 801-3 1984

Ball Material

  • Sapphire

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • NEMA 3R Enclosure
  • NEMA 4X Enclosure

Exhaust Capacity - Relieving Units Only

  • 5.5 scfm (9.35 m³/hour)

Flow Capacity

  • 40 scfm (68 m³/hour), Maximum

Independent Linearity

  • + 0.25% of Full Scale

Input Signal

  • 1 to 5 Vdc, 375 ohms
  • 1 to 9 Vdc, 2550 ohms
  • 10 to 50 mA, 50 ohms
  • 4-20 mA, 120 ohms

Mounting

  • Bracket Kit

NPT Connection

  • 1/4" NPT Female Outlet, Inlet & Gauge Port

Orifice Material

  • Sapphire

Pressure Range

  • bar: 0 to 10
  • Inches WC: 10 to 50
  • kPa: 0 to 1,000
  • psig: 0 to 150

Pressure Type

  • Gauge

RFI/EMI Effect

  • < 0.5% of Span at 30 V/m Class 3 Band ABC (20-1,000 MHz) Per SAMA PMC 33.1 1978 & < 0.5% of Span at 10 V/m Level 3, 27-500 MHz Band Per IEC Standard 801-3 1984. EMC Directive 89 / 336 EEC European Norms EN 50081-2 & EN 50082-2

Supply Pressure

  • Ratio Relay - psig: 250 (kPa: 1,700, bar: 17)
  • Transducer - psig: 20 + 2 (kPa: 150 + 15, bar: 1.5 + 0.15)

Supply Pressure Effect

  • Ratio Relay - less than psig: 0.1 (kPa: 0.7, bar: 0.007) for psig: 100 (kPa: 700, bar: 7) Change
  • Transducer - 1% of Span for psig: 2 (kPa: 15, bar: 0.15) Supply Change
