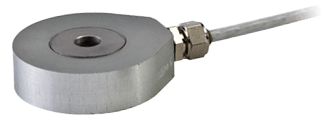

5180/5182 Compression Washer Load Cell

Brand: Sensy - Sensors & Synergy S.A.
Compression washer annular load cell specially designed for force measurement on bolts.
Features
  • Very low profile for high capacity load cell
  • Material:
    • Body stainless steel; housing aluminum (5180)
    • Aluminum (5182)
  • Protection IP 65
  • Available in "custom-made" design
  • Very competitive prices
  • Cable length: 2 to 3 meters
show more
Compression washer annular load cell specially designed for force measurement on bolts.
Features
  • Very low profile for high capacity load cell
  • Material:
    • Body stainless steel; housing aluminum (5180)
    • Aluminum (5182)
  • Protection IP 65
  • Available in "custom-made" design
  • Very competitive prices
  • Cable length: 2 to 3 meters

Specifications

Applications

  • Bolts Tightening Measurement & Monitoring

Approvals & Certifications

  • CE

Cable Length

  • 7 to 10 feet (2 to 3 metres)

Capacity

  • 2 to 75 T

Enclosure, Body Material

  • Aluminum
  • Stainless Steel Body

Environmental Protection

  • IP65

Excitation Voltage

  • 3-10 Vdc - Nominal Range
  • 5 Vdc

Insulation Resistance

  • > 5,000 megaohms

Load

  • > 300 % of Full Scale
  • 50 % of Full Scale - Permissible Dynamic Loading

Load Limit

  • 150 % of Full Scale

Resistance

  • Input/Output: 702 ± 2 ohms

Service Temperature

  • -30° to 70° C (-22° to 158° F)

Static Lateral Force

  • 25 % of Full Scale

Storage Temperature

  • -50° to 85° C (-58° to 185° F)

Temperature Coefficient

  • < ± 0.2 % of Full Scale/10° C (18° F)

Zero Balance

  • ± 0.02 mV/V
