Images are representations only.
Description

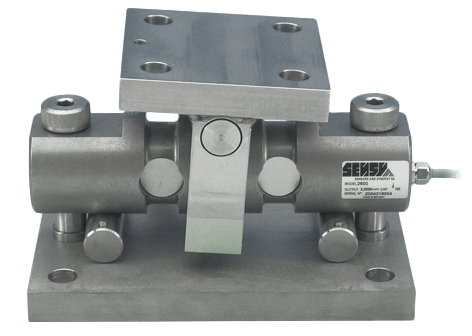

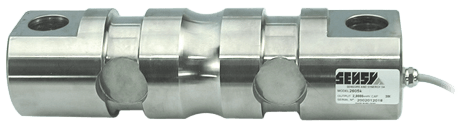

Load cell for silo weighing combining a sturdy design with an easy installation. Features:
- Stainless steel
- Protection IP 67
- Available options (non exhaustive list):
- ATEX intrinsic safety Ex II 1GD Ex ia IIC T6 or T4 Ga Ex ia IIIC T80° C Da
- High service temperature (180° C)
- Cable output by a connector
Configure
2600
Material

Specifications
Specifications
Brand
Accuracy
- 0.1% of Full Scale
- 0.25% of Full Scale
Applications
- Hoppers Weighing High Capacity (Indoor & Outdoor)
- Mixers Weighing (Vibrating)
- Reactors
- Silos
- Tanks
Approvals & Certifications
- ATEX Intrinsic Safety Ex II 1 GD Ex Ia IIC T6 or T4 Ga Ex Ia IIIC T80° C Da
- CE
- CSA
Cable Length
- 33 to 66 feet (10 to 20 meters)
Capacity
- 10 to 75 T
Enclosure, Body Material
- Alloy Steel
- Stainless Steel
Environmental Protection
- IP67
Excitation Voltage
- 10 Vdc
- 3-12 Vdc - Nominal Range
Insulation Resistance
- > 5,000 MegaOhms
Linearity
- Linearity Error: <± 0.1% to <± 0.25% of Full Scale
Load Limit
- 130% of Full Scale
Operating Temperature
- Optional High Service Temperature: 180° C (356° F)
Repeatability
- Repeatability Error: <± 0.03% to <± 0.1% of Full Scale
Resistance
- Input/Output: 352 ± 2 ohms
Sensitivity
- <± 0.3%
Service Temperature
- -30 to 70° C (-22° to 158° F)
Storage Temperature
- -50 to 85° C (-58° to 185° F)
Temperature Coefficient
- <± 0.035% of Full Scale/10° C (18° F)
- <± 0.05% of Full Scale/10° C (18° F)
Zero Balance
- ± 0.02 mV/V
