66-1688 Analog/Discrete HART Minifast Cable

Brand: Turck, Inc.
  • Process Cable:
    • Analog/HART or Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female or Male Receptacle
    • Single or Double Ended
    • 316 Stainless Steel or Nickel Plated Brass Coupling Nut
    • 6 Contacts / 5 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (5) x # 18 AWG Conductors
    • (3) x # 20 AWG Drain/Shield wire
    • Blue PVC Jacket
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 300V
    • C(UL): C22.2 No 245/1309 Marine Shipboard/IEEE 1580
show more

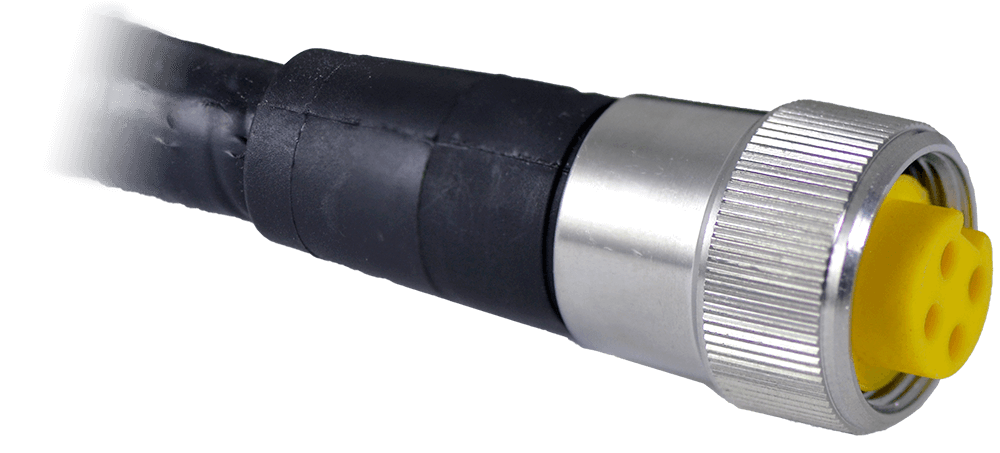

Images are representations only.
  • Process Cable:
    • Analog/HART or Discrete Circuits
  • Connector:
    • "minifast" Series
    • Female or Male Receptacle
    • Single or Double Ended
    • 316 Stainless Steel or Nickel Plated Brass Coupling Nut
    • 6 Contacts / 5 x #18 AWG Wires
    • (14.5 mm) = 1/2"-14 Male NPT Threads
  • Wires:
    • 105 C, 300 V
    • (5) x # 18 AWG Conductors
    • (3) x # 20 AWG Drain/Shield wire
    • Blue PVC Jacket
  • Protection Class:
    • IEC67, NEMA 1,3,4,6P
  • Approvals:
    • UL: ITC-ER/PLTC-ER, Direct Burial, 105C
    • CSA: CIC/TC, 90C, 300V
    • C(UL): C22.2 No 245/1309 Marine Shipboard/IEEE 1580

66-1866

Connection

Nut Material

Cable Length

Cable Length

Cable Length

Specifications

Brand

Approvals & Certifications

  • CSA
  • cUL
  • UL

Connection Pin-Out

  • 6-Pin

Connection Style

  • minifast

Connector Shape

  • Straight

Process Connection Material

  • 316 Stainless Steel

Process Temperature

  • -40° to 105° C (-40° to 221° F)

Version/Leadwires

  • 3-Wire
