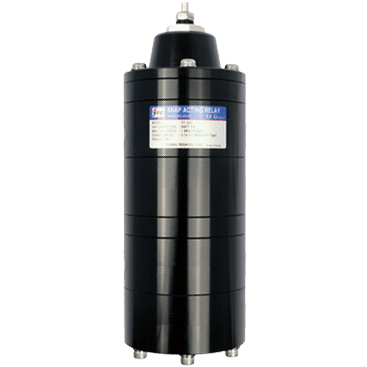

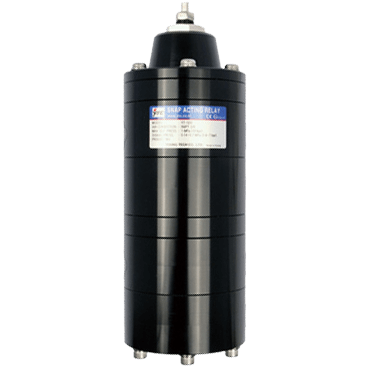

YT-530 Snap Acting Relay

Brand: Young Tech Co., Ltd
The YT-530 Snap Acting Relay senses supply pressure and changes the direction of the air flow when supply pressure is lower than setting pressure. It also provides "Fail-Position" function when the supply pressure gets lower especially when there is damages on pipelines.
Features
  •  Responds to very small changes and has high accuracy.
  •  Versatility can be enhanced by having different material and capacity.
  •  100 mesh screen filters small dust entering.
  •  Switches pressure flows when abnormal pressure detected
  •  Stem can be extended and connected
  •  Able to lock actuator in its position
show more
The YT-530 Snap Acting Relay senses supply pressure and changes the direction of the air flow when supply pressure is lower than setting pressure. It also provides "Fail-Position" function when the supply pressure gets lower especially when there is damages on pipelines.
Features
  •  Responds to very small changes and has high accuracy.
  •  Versatility can be enhanced by having different material and capacity.
  •  100 mesh screen filters small dust entering.
  •  Switches pressure flows when abnormal pressure detected
  •  Stem can be extended and connected
  •  Able to lock actuator in its position

Specifications

Ambient Temperature Range

  • -20° to 120° C (-4° to 248° F)
  • -20° to 70° C (-4° to 158° F)
  • -40° to 70° C (-40° to 158° F)

Enclosure, Body Material

  • Die Cast Aluminum

Flow Capacity

  • 1.8 Cv

NPT Connection

  • 3/8" NPT Female

Pressure Range

  • bar: 1.4 to 7
  • kPa: 140 to 700
  • MPa: 0.14 to 0.7
  • psig: 2 to 101

Supply Pressure - Maximum

  • bar: 10
  • kPa: 1,000
  • MPa: 1
  • psig: 145
