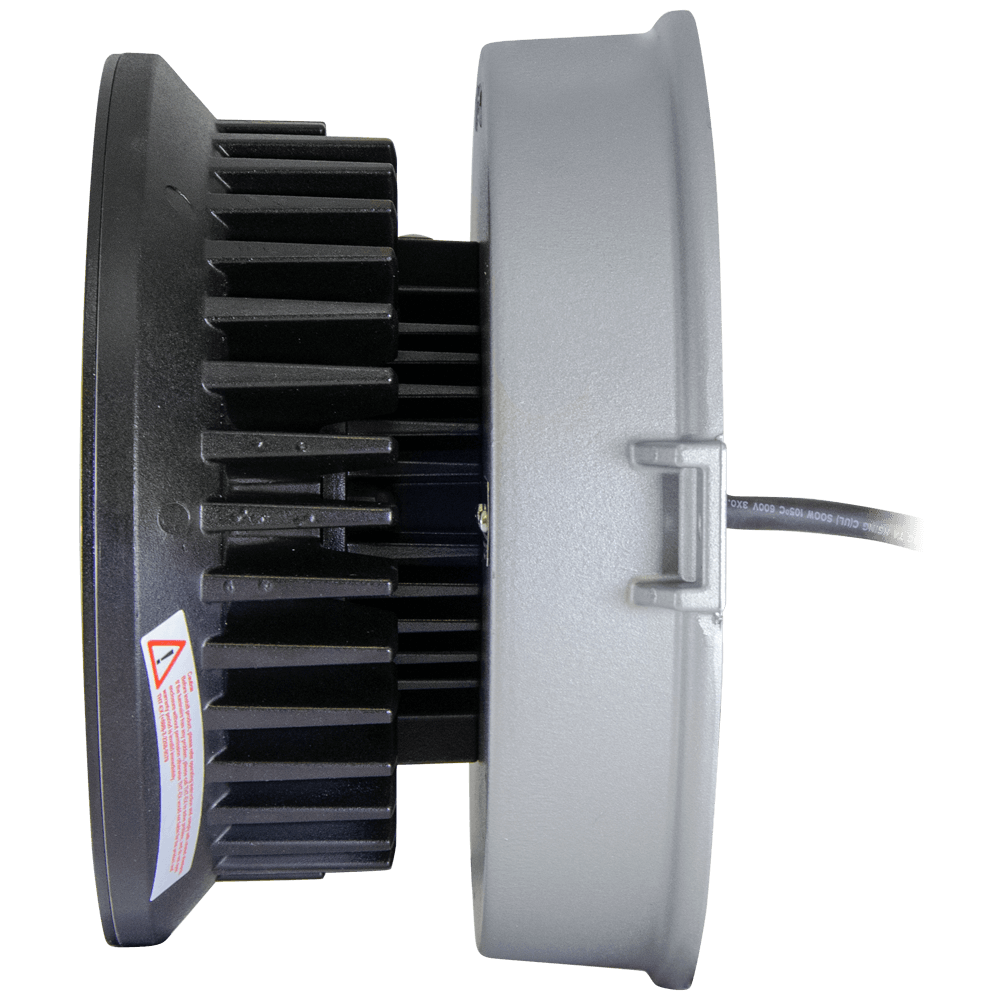

L1703 LED Light, (DOB: 60W, 80W, 90W, 100W) (SMD: 65W, 75W, 95W) cULus Explosion Proof, Class l, Division 2
Description
- L1703 : (DOB: 60W, 80W, 90W, 100W) (SMD: 65W, 75W, 95W)
- cULus Explosion-Proof Approved for Canada & USA
- Class I, Division 2, Group A, B, C, D
- Class II, Division 2, Group F,G
- IP67 / NEMA 6
- Ambient Temperature:
- CID2: -40°C ~ +40°C, T3C
- CIID2: +40°C, T4A
- "AC IN LED Technology"
- No Driver (Ballast), to fail, No Efficiency Loss
- Long Lifespan ( 60,000 hrs )
- LED Lighting provides 2 million times power cycle
- High Efficiency, Generates Less Heat
- Smaller Volume and Light weight
- High Corrosion Resistance
- Easy installation and maintenance
- Applicable to High Temperature Environment
- Light Color: Cool White / Warm White
- Retrofit to conventional Explosion-Proof Light
- "AC IN LED Technology"
Inventory
Displaying prices & availability for Ohio, United States 43201 in USD. Change location or currency.
Models matching criteria: 1
TOP HI-TECH, Model 1703, Explosion Proof, Class I, Division 2,, LED Bay Light, 65 Watt, 120 VAC, PAN-A Style Retrofit view more
- THT: Brand Name - Top Hi-Tech Co., Ltd
- H: Hazardous Location
- Class 1, Div 2, Groups A, B, C, D
- 1703: Model Name - 1703 Series
- Z: Sub-Series Designation - for All Luminaires
- C: Top Cover: Top Cover with opening

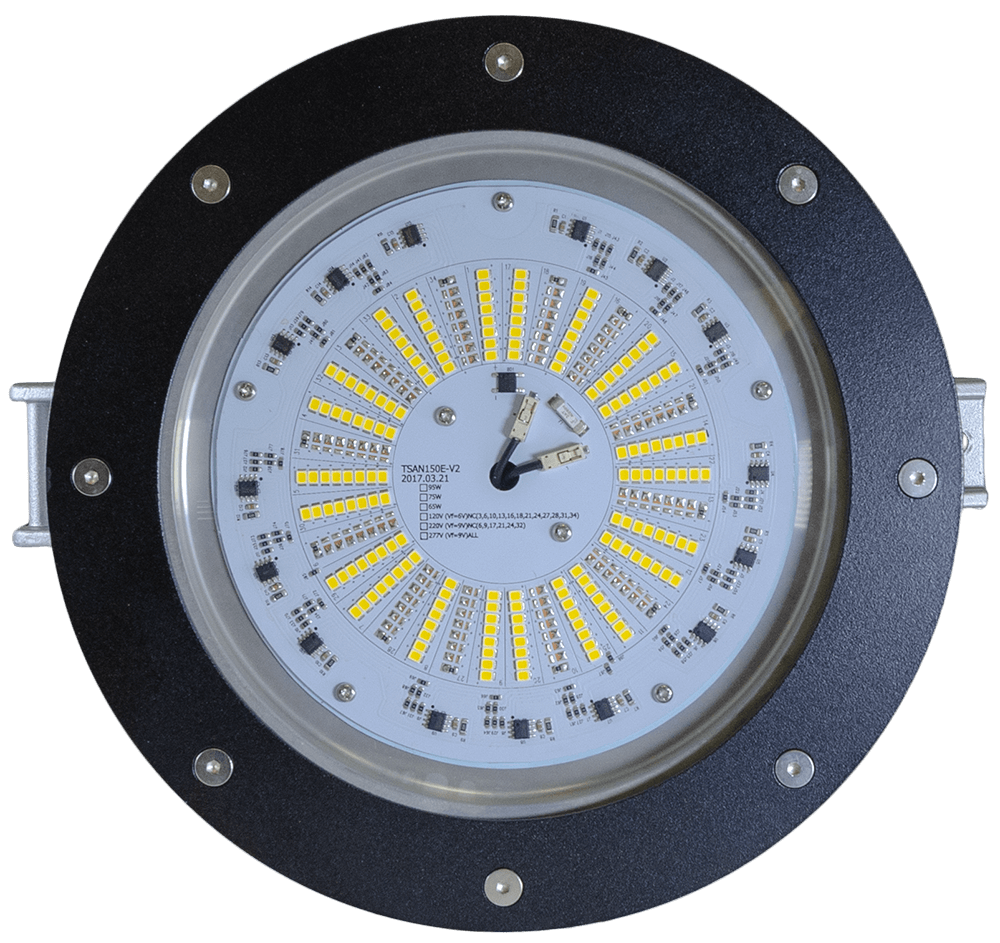

- K: LED Module: SMD Type
- C: CCT of LED : Cool White (5000K)
- 6: Voltage (+/-10%): 120V, 50/60 Hz
- F5: Wattage: 65W
- PAN A: Mounting Type, A Brand

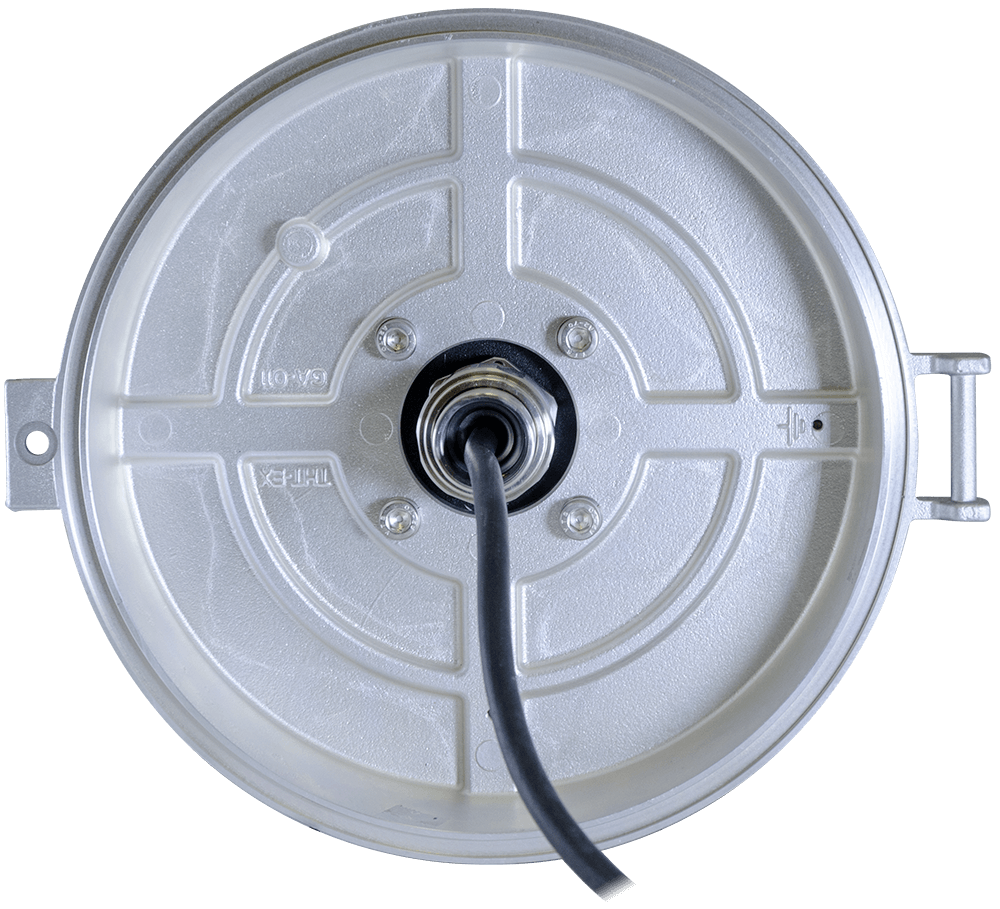

- Light only with top Pan, mounts onto existing bottom Pan base.
- IP Rating: IP67
- Lumen (+/-10%): 6500 lm
- Certificate
- UL-844, E472637
- Class I, Division 2, Group A,B,C,D
- Class II, Division 2, Group F, G
1 In Stock
$927.84 USD
Configure
Specifications
Specifications
Brand
Standards
- UL 844
- UL 1598 Luminaires
- UL 8750
- CSA C22.2 No. 137-M1981
- CSA C22.2 No. 250.0
- CSA C22.2 No. 250.13
Protection
- cULus Listed, Hazardous Area
- Class I, Div. 2, Group A, B, C, D
- Class II, Div. 2, Group F, G;
Rated Voltage (±10%)
- 120 V / 277 Vac
Watts (±10%)
- DOB: 60W / 80W / 90W / 100W
- SMD: 65W / 75W / 95W
Amps
- DOB: 60 W (120 V: 0.50 A), (277 V: 0.22 A)
- DOB: 80 W (120 V: 0.67 A), ( 277 V: 0.29 A)
- DOB: 90 W (120 V: 0.75 A), ( 277 V: 0.32 A)
- DOB: 100 W (12 V: 0.83 A), (277 V:0.36 A)
- SMD: 65 W (120 V: 0.54 A), (277 V: 0.23A)
- SMD: 75 W (120 V: 0.63A), (277 V: 0.27 A)
- SMD: 95 W (120 V: 0.79 A), (277 V: 0.34 A)
Color of LED Light (C.C.T.)
- 5000K (Cool White)
- 3000K (Warm White)
Ambient Temperature
- CID2: -40° C ~ +40° C, T3C
- CIID2:: +40° C, T4A
Power Factor
- cos ≥ 0.9
CRI
- Warm White ≥ 80
- Cool White ≥ 70
Lumen (± 10%)
- DOB: 3000K: (60W: 5,700 lm), (80W: 7,600 lm), (90W: 8,550 lm), (100W: 9,500 lm)
- DOB: 5000K (60W: 6,000 lm), (80W: 8,000 lm), (90W: 9,000 lm), (100W: 10,000 lm)
- SMD: 3000K: (65W: 6,175 lm), (75W: 7,125 lm), (95W: 9,025 lm)
- SMD: 5000K: (65W: 6,500 lm), (75W: 7,500 lm), (95W: 9,500 lm)
Beam Angle
- X-110° / Y-110°
Frequency
- 50/60 Hz
Degree of Protection
- IP67 / NEMA 6
Material
- Glass: Tempered Glass
- Enclosure: Aluminum Alloy
LED Service Life
- 60,000 hours
Entrance Thread

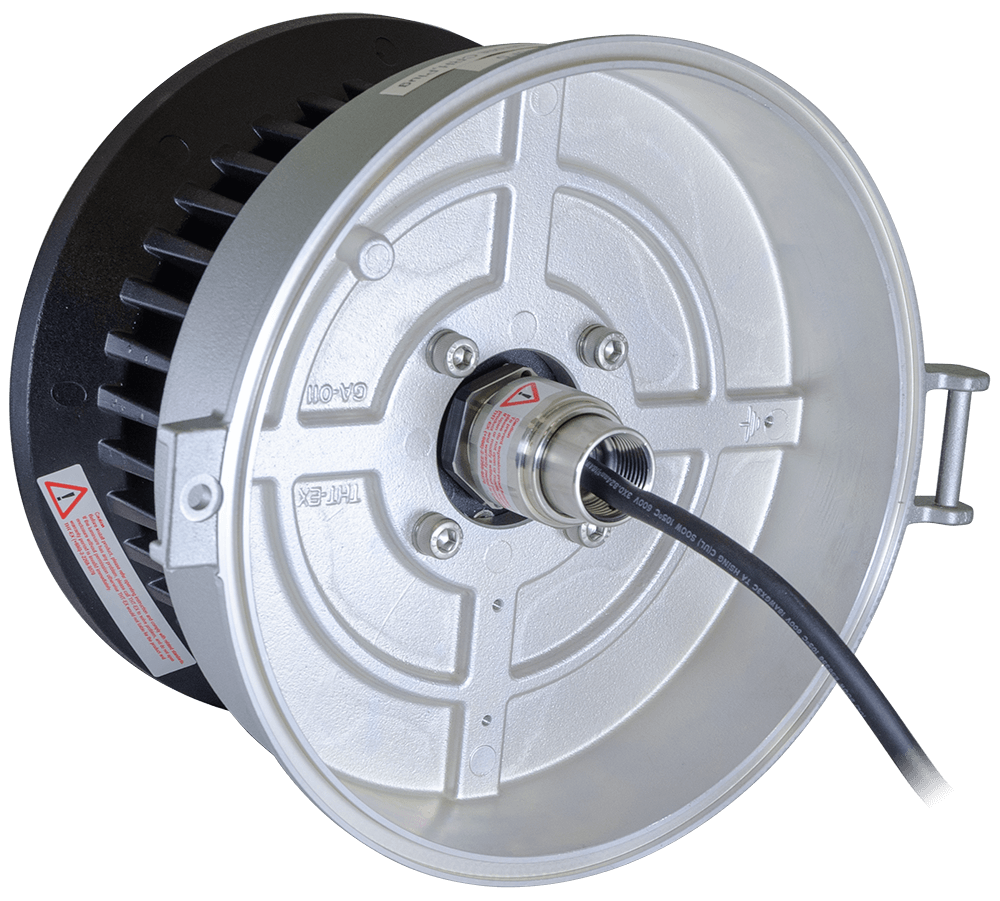

- 1 x 3/4" FNPT (M25) or PAN Size Type
Electrical Cable
- 3 ft (1 m) of c(UL), SOOW Cable, 3 Conductor #18 AWG, FT2
Applications
Applications
- Compressor Stations
- Power Plants
- Chemical Processing Plants
- Waste Water Treatment Plants
- Offshore Platforms
- Paper Mills
- Shipyards
- Loading Docks
- Storage Facilities
