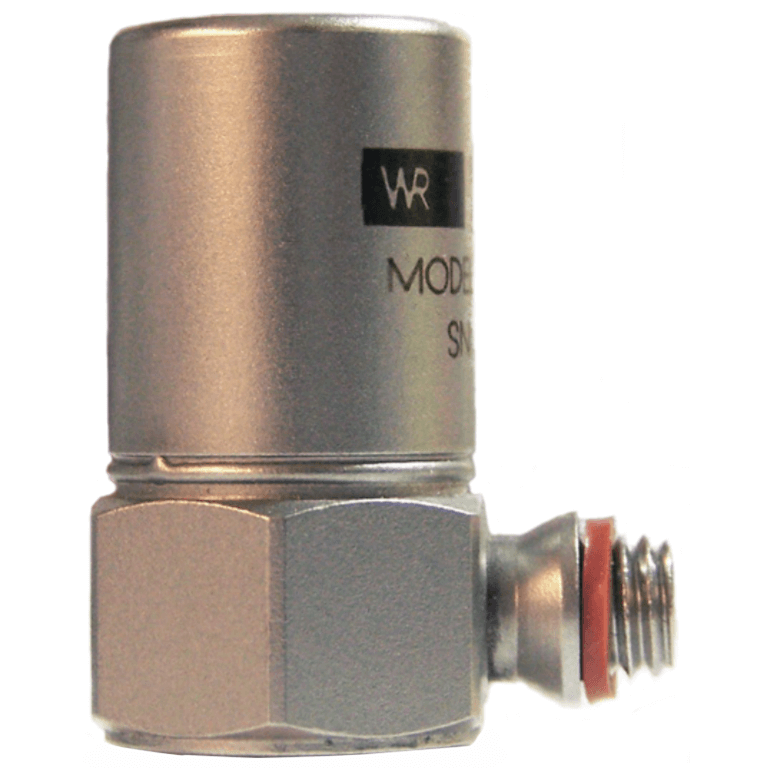

Model 732A/732AT High Frequency Accelerometer

Brand: Wilcoxon Sensing Technologies
Side exit, miniature, high frequency, case grounded, microdot connector, 10 mV/g.
Features
  • Wide dynamic range
  • Compact construction to fit in tight spaces
  • Wide frequency range
show more
Images are representations only.
Side exit, miniature, high frequency, case grounded, microdot connector, 10 mV/g.
Features
  • Wide dynamic range
  • Compact construction to fit in tight spaces
  • Wide frequency range

Model 732A/732AT

Model

Specifications

Electrical Connectors

  • Cable (J93)
  • Mating Connector: R1
  • Output Connector: 10-32 Coaxial Cable

Element

  • Sensing Element Design: PZT Ceramic, Compression

Enclosure, Body Material

  • 316L Stainless Steel

Frequency

  • Frequency Response (± 3 dB): 0.5 to 25,000 Hz
  • Frequency Response (± 5%): 2 to 15,000 Hz
  • Resonance Frequency: 60 kHz

Mounting

  • 10-32 Tapped Hole

Noise

  • Electrical Noise, Equivalent G (Broadband: 2.5 Hz to 25 kHz): 200 µg
  • Electrical Noise, Equivalent G (Spectral: 1,000 to 10,000 Hz): 2.0 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 10 Hz): 20 µg/√Hz
  • Electrical Noise, Equivalent G (Spectral: 100 Hz): 3.0 µg/√Hz

Non-Linearity

  • Amplitude Non-Linearity: 1%

Output Impedence

  • Maximum 100 Ω

Power Requirement

  • 18-30 Vdc
  • Current Regulating Diode: 2-10 mA

Range

  • Acceleration Range: 500 G Peak

Sensitivity

  • Base Strain Sensitivity: 0.005 G/μstrain
  • Electromagnetic Sensitivity, Equivalent G: 100 µg/Gauss
  • Sensitivity, ± 5%, 25° C (77° F): 10 mV/g
  • Transverse Sensitivity: Maximum 7% of axial

Shock

  • Shock Limit: 5,000 G Peak

Temperature Range

  • -50° to 120° C (-58° to 248° F)

Vibration

  • Vibration Limit: 500 G Peak

Voltage

  • Bias Output Voltage: 10 Vdc
