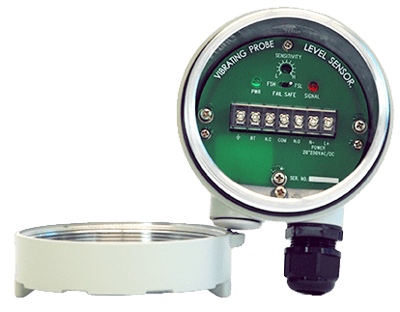

VBL Series Vibrating Level Sensor

Brand: Automation Products Group Inc. (APG)
The VBL Vibrating Level Sensor works well with solids of many types in medium and large sized hoppers. The VBL allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids.
Features
  • Miniature Size
  • Simple torque adjustment
  • Reliable design
  • Low cost
show more
Images are representations only.
The VBL Vibrating Level Sensor works well with solids of many types in medium and large sized hoppers. The VBL allows you to adjust the sensitivity setting to accurately detect the presence of different types of solids.
Features
  • Miniature Size
  • Simple torque adjustment
  • Reliable design
  • Low cost

VBL Series APG Vibrating Level Sensor

Cable Length

Mount Type

Mounting Type

Mounting

Material

Voltage

Electrical Connection

Specifications

Electrical Connectors

  • 1/2" NPT Female

Enclosure, Body Material

  • 304 Stainless Steel

Environmental Protection

  • IP65
  • NEMA 4

Operating Temperature

  • -40° to 60° C (-40° to 140° F) - Housing
  • -40° to 80° C ( -40° to 176° F) - Rod

Output

  • 5 A at 250 Vac

Power Supply

  • ≤ 15 VA

Pressure Rating

  • 290 psi (20 bar, 2000 kPa)

Sensor, Probe Style

  • 10.83" Shaft Length (275 mm)

Supply Voltage

  • 20-250 Vdc/ac
  • 50/60 Hz

Switch Type

  • SPDT
